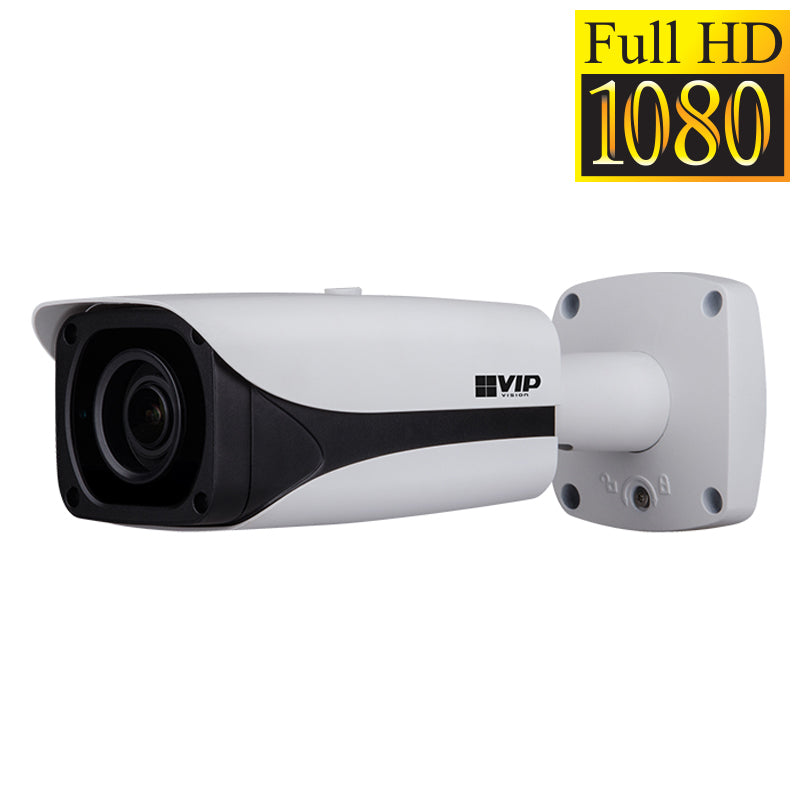

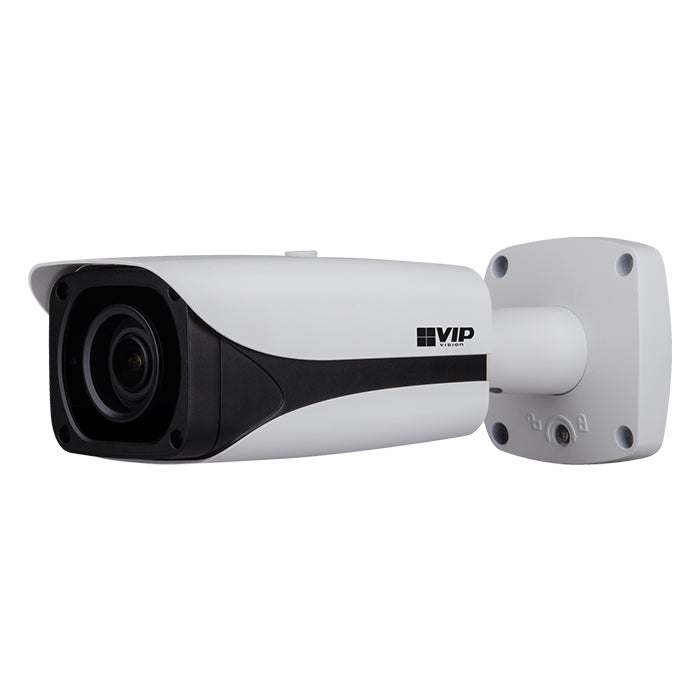

VSIP2MPFBIRLV3

Image Sensor: 1/1.9" 2.0MP Progressive Scan CMOS

Max. Resolution: 2.0 Megapixel

Effective Pixels: 1920 × 1080

RAM / ROM: 1024MB / 128MB

Ultra Low Light Colour: Yes

Min. Illumination: 0.002 Lux at F1.53 (Colour) / 0 Lux at F1.53 (IR On)

S/N Ratio: >50dB

Infrared: 50 m

Infrared System: 4 × Infrared LEDs, 50 m Range, Auto / Manual On/Off Control

Lens Type: Motorised Varifocal

Lens / Iris: 4.1–16.4 mm

Field of View: Horizontal: 104°–33° / Vertical: 57°–18° (4× Optical Zoom)

Focus: Auto Focus / 0.5 m Min. Focus Distance

Detect (25px/m): 57 m (Wide) / 137 m (Tele)

Observe (63px/m): 23 m (Wide) / 55 m (Tele)

Recognise (125px/m): 11 m (Wide) / 27 m (Tele)

Identify (250px/m): 6 m (Wide) / 14 m (Tele)

Resolution: 1080p (1920 × 1080) to CIF (352 × 288)

Frame Rate (Main): 1080p (1–50fps)

Frame Rate (Sub): D1 (1–50fps)

Frame Rate (Third): 1080p (1–50fps)

Video Compression: H.265+ / H.265 / H.264+ / H.264

Bit Rate: H.265: 14–6144Kbps / H.264: 24–10240Kbps

Bit Rate Control: Constant Bit Rate (CBR) / Variable Bit Rate (VBR)

Day/Night: Auto (ICR) / Colour / B&W

Lighting Compensation: BLC / HLC / WDR (120dB)

Smart Scene Adaptive (SSA): Yes

White Balance: Auto / Natural / Street Lamp / Outdoor / Manual

Gain Control: Auto / Manual

Noise Reduction: 3D DNR

Picture Control: Mirror / Flip (0° / 90° / 180° / 270°)

IVS: Yes

Intelligent Functions: Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection (4 Zones), Region of Interest (4 Zones), Privacy Masking (4 Zones), Smart Infrared, Electronic Image Stabilisation, Defog, People Counting, Heat Map

Ethernet: RJ-45 (10/1000 Base-T)

Protocol: HTTP / HTTPS / TCP / ARP / RTSP / RTP / UDP / RTCP / SMTP / FTP / DHCP / DNS / DDNS / PPPoE / IPv4/IPv6 / QoS / UPnP / NTP / Bonjour / IEEE 802.1x / Multicast / ICMP / IGMP / SNMP / TLS

Streaming Method: Unicast / Multicast

Max. User Access: 10 Users / 20 Users

RTMP Support: No

Video Interface: Video Tester Composite Output

Audio Interface: 1 Input / 1 Output / Compression: G.711a / G.711Mu / AAC / G.726

Alarm Interface: 2 Inputs / 1 Output

RS485: N/A

Edge Storage: MicroSD Card Slot (Up to 128GB) / NAS / Local PC

Interoperability: ONVIF / PSIA / CGI

Power Supply: 12VDC / PoE+ (802.3at) (Class 4)

Power Consumption: <13W

Operating Conditions: -40°C to +60°C / Less Than 95% RH

Ingress Protection: Yes

Weather Resistance: IP67

Vandal Resistance: IK10

Series: Ultimate Series

Camera Type: Bullet

Housing: Metal

Pan/Tilt/Rotation: Pan: 0°–360° / Tilt: 0°–90° / Rotation: 0°–360°

Tri-Axis Mounting: No

ePoE: Yes

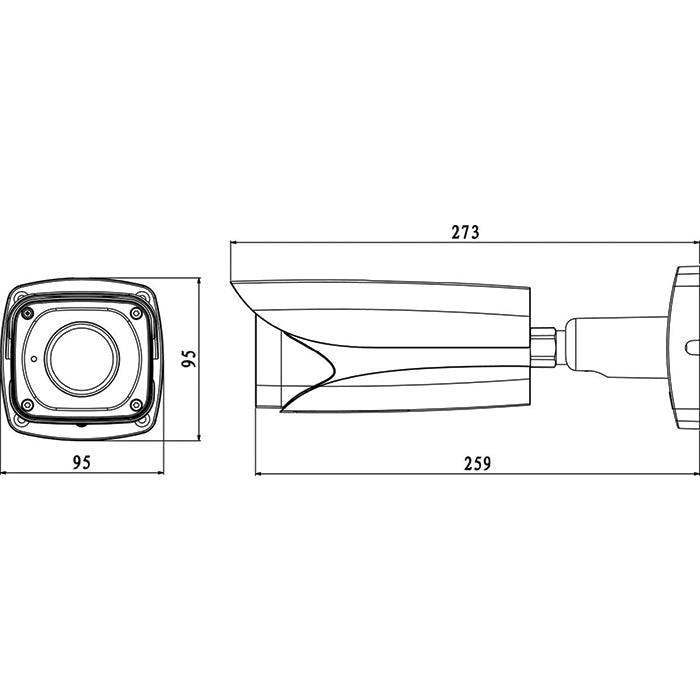

Dimensions: 273 × 95 × 96 mm

Net Weight: 1.12 kg

Category: Network Surveillance

Warranty: 4 Years

Shipping Width: 366 mm

Shipping Height: 176 mm

Shipping Depth: 178 mm

Shipping Weight: 1.55 kg
