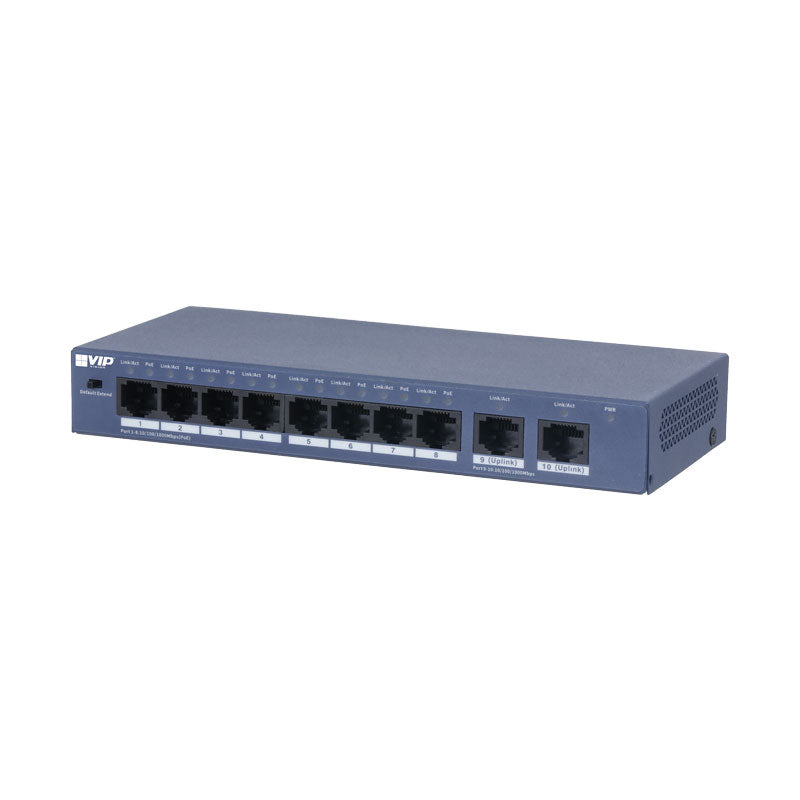

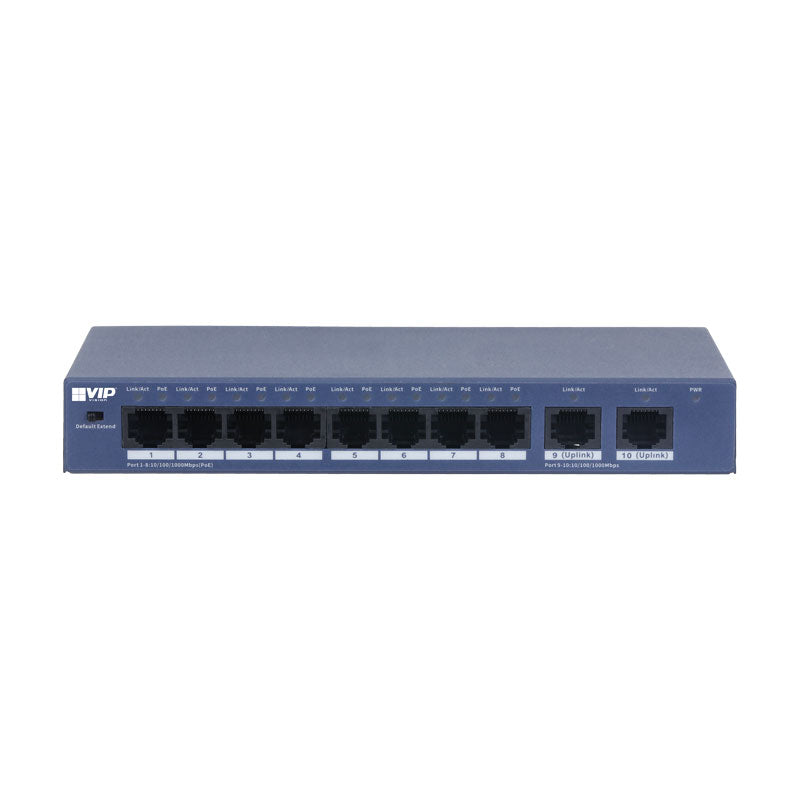

VIP Vision Unmanaged Gigabit 8-Port PoE Switch with 2-Port Uplink (1000M)

Ports: 8 Ports

Speed: Gigabit 10/100/1000

Management: Unmanaged

Device Ports: 8 × 10/100/1000 PoE RJ45

Uplink Ports: 2 × 10/100/1000 RJ45

Switching Capacity: 20Gbps

Packet Forwarding Rate: 14.88Mpps

Exchange Mode: N/A

PoE: Yes

PoE Protocol: PoE (IEEE 802.3af) / PoE+ (IEEE 802.3at)

Switch Power Load: Ports 1–4: ≤30W / Total: ≤90W

Switch Management: N/A

MAC Address Capacity: N/A

Virtual LAN: N/A

Network Time Protocol: N/A

Spanning Tree Protocol: N/A

Port Aggregation: N/A

Port Mirroring: N/A

LLDP: N/A

DHCP: N/A

Extend Mode: Up to 250 m Range at 10Mbps

Flow Control: N/A

Security Features: N/A

System Maintenance: N/A

Quality of Service: N/A

Network Management: N/A

PoE Management: N/A

Input Power: 53VDC

Lightning Protection: Common Mode: 6kV / Differential Mode: 1kV

Mounting Options: Rackmount Tabs (1RU) / Desktop Mount

Operating Environment: -10°C to +55°C / RH 90% (Max.)

Weight: 0.3 kg

Dimensions: 184.6 × 77.4 × 27 mm

Warranty: 4 Years

Shipping Width: 80 mm

Shipping Height: 270 mm

Shipping Depth: 240 mm

Shipping Weight: 1.30 kg
