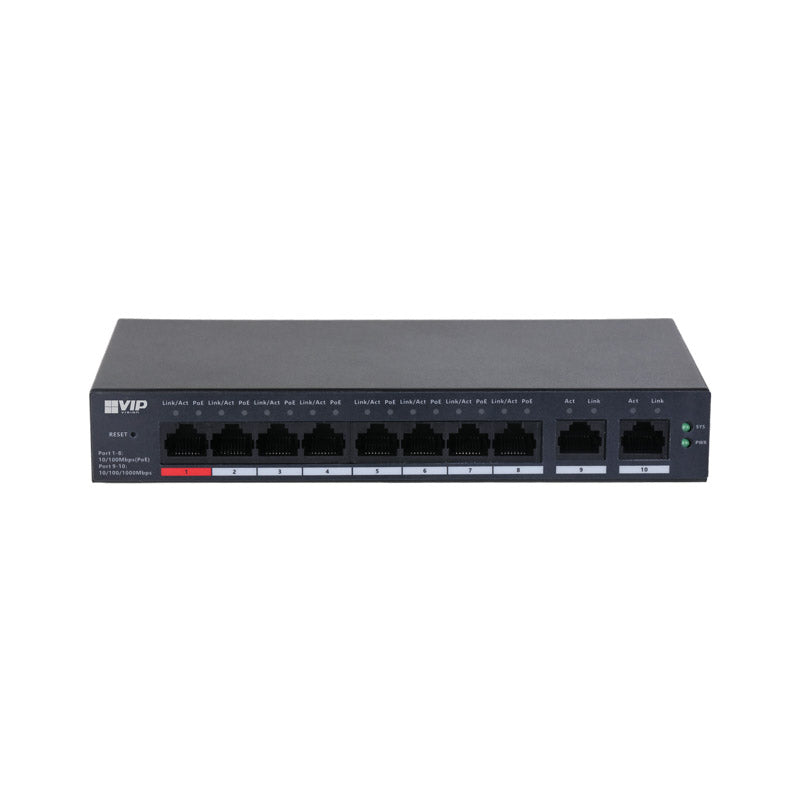

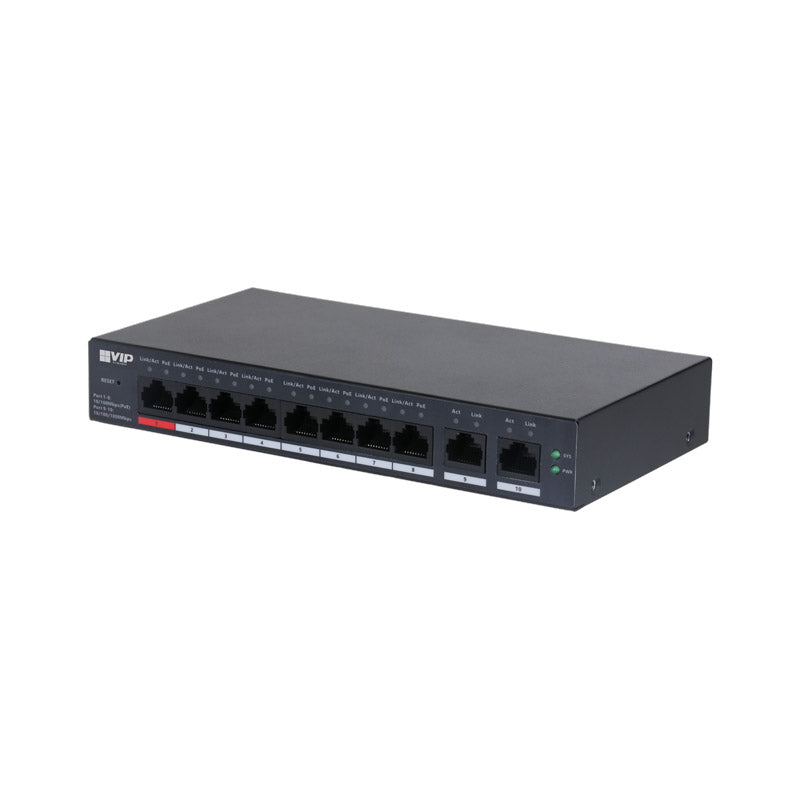

VIP Vision Unmanaged 8-Port (100M) Hi-PoE Switch with 2-Port Uplink (1000M)

Ports: 8 Ports

Speed: Fast 10/100

Management: Unmanaged

Device Ports: 8 × 10/100 Base-T (PoE Power Supply Ports)

Uplink Ports: 2 × 10/100/1000 Base-T

Switching Capacity: 5.6Gbps

Packet Forwarding Rate: 4.17Mpps

Exchange Mode: N/A

PoE: Yes

PoE Protocol: PoE (IEEE 802.3af) / PoE+ (IEEE 802.3at) / Hi-PoE (IEEE 802.3bt)

Switch Power Load: Port 1: ≤90W / Ports 2–8: ≤30W / Total: ≤110W

Switch Management: N/A

MAC Address Capacity: 8K

Virtual LAN: N/A

Network Time Protocol: N/A

Spanning Tree Protocol: N/A

Port Aggregation: N/A

Port Mirroring: N/A

LLDP: N/A

DHCP: N/A

Extend Mode: Up to 250 m Range at 10Mbps

Flow Control: N/A

Security Features: N/A

System Maintenance: N/A

Quality of Service: N/A

Network Management: N/A

PoE Management: N/A

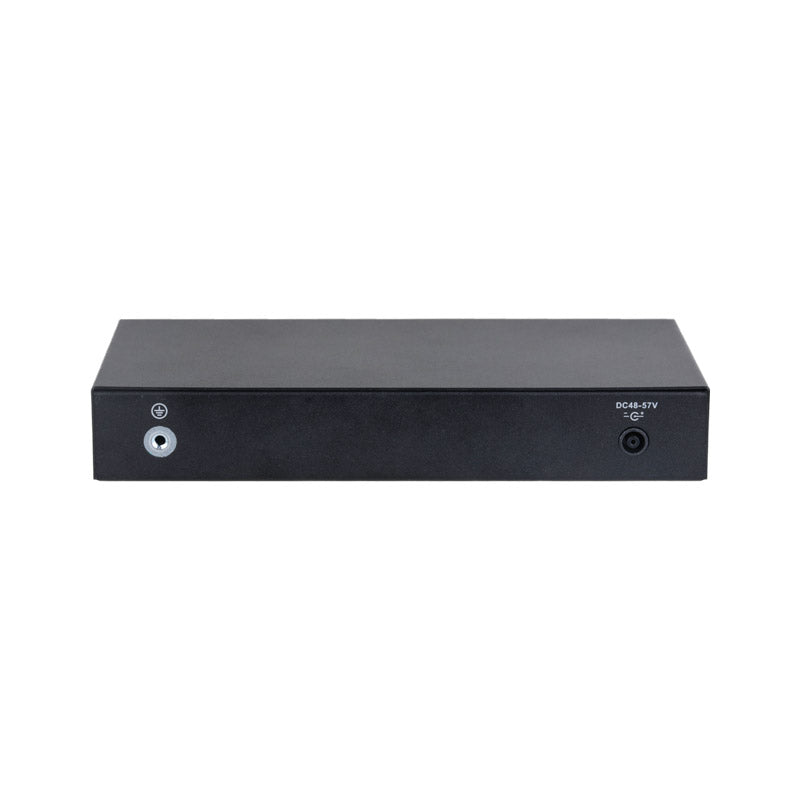

Input Power: 54VDC

Lightning Protection: Common Mode: 4kV / Differential Mode: 2kV

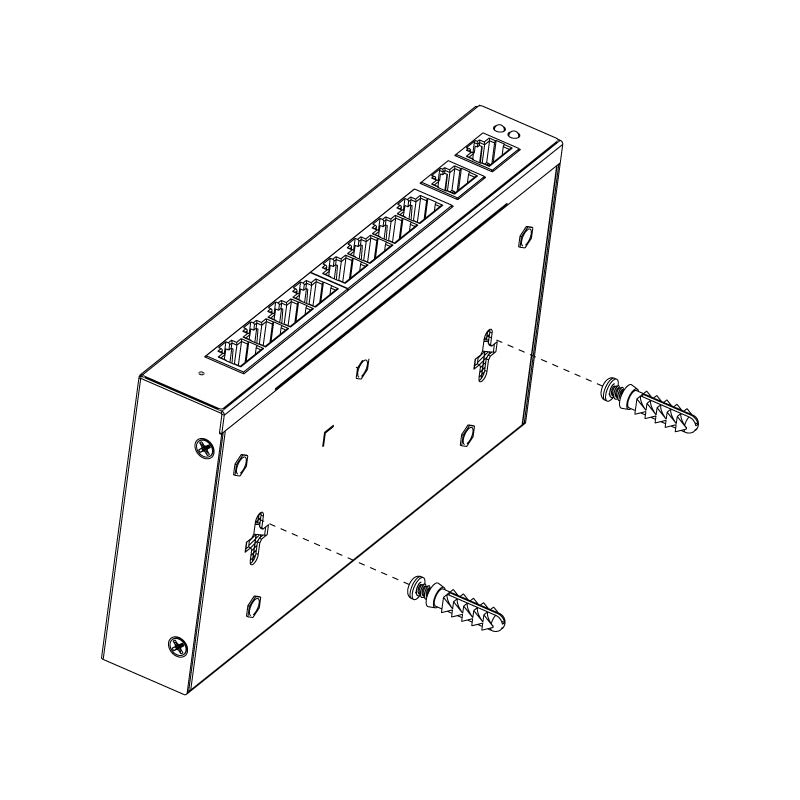

Mounting Options: Wall and Desktop Mount

Operating Environment: -10°C to +55°C / RH 95% (Max.)

Weight: 0.50 kg

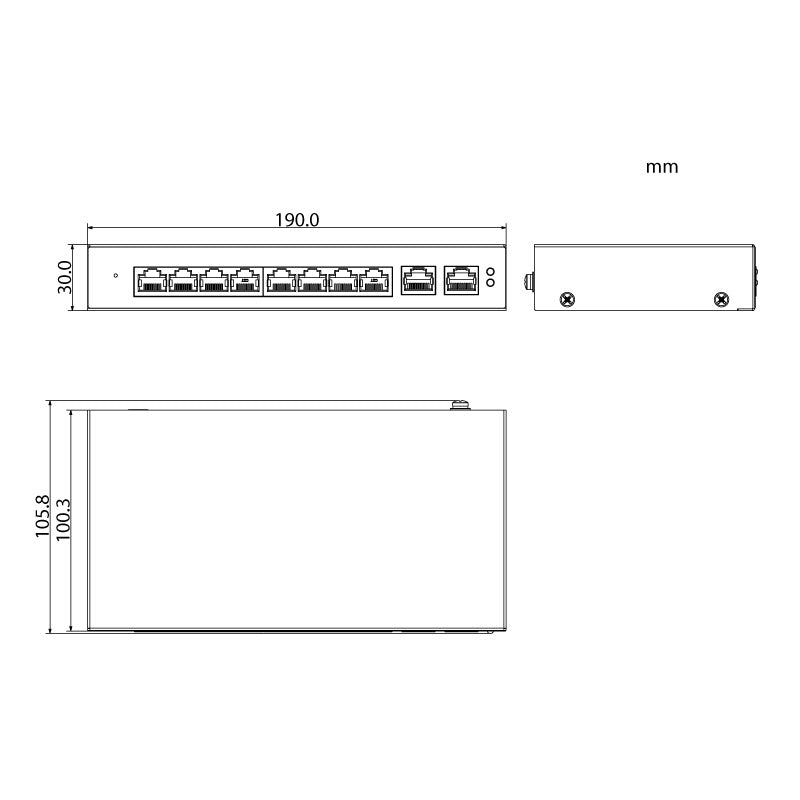

Dimensions: 190 × 106 × 30 mm

Warranty: 4 Years

Shipping Width: 244 mm

Shipping Height: 256 mm

Shipping Depth: 87 mm

Shipping Weight: 1.11 kg
