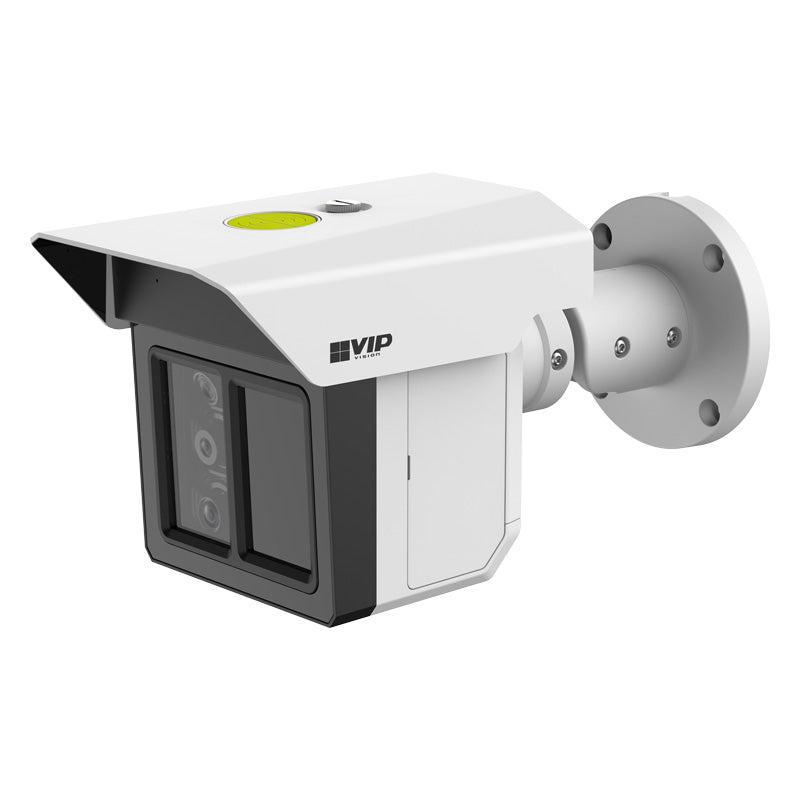

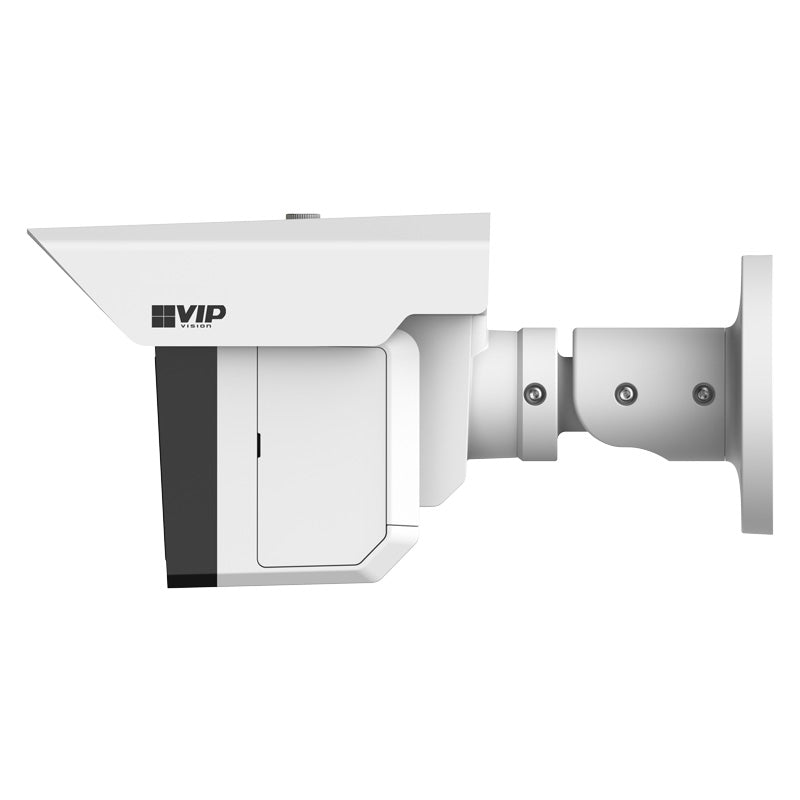

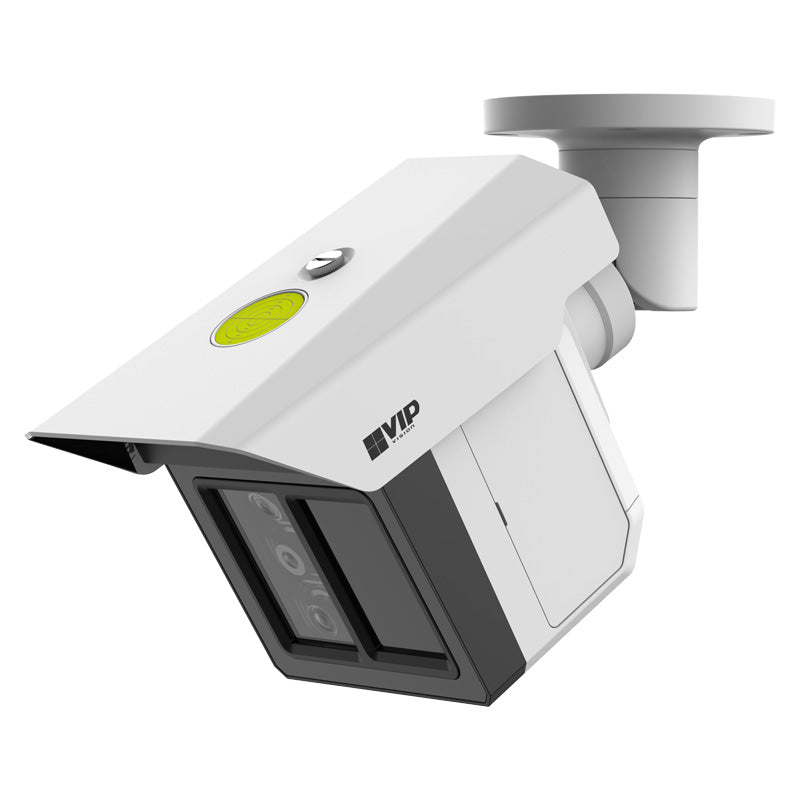

VIP Vision Triple-Sight AI Perimeter Protection Camera

VSIPU-2TS

Regular price $999.00

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

The VSIPU-2TS Triple-Sight AI Perimeter Protection Camera from VIP Vision is engineered for high-accuracy, long-range perimeter surveillance in demanding environments. Using three integrated 2MP sensors with different focal lengths, the camera delivers multi-channel detection to accurately identify people and vehicles across short, medium, and long distances, significantly reducing false alarms.

Advanced AI analytics support human and vehicle classification with perimeter protection features such as tripwire and intrusion detection. Micro-PTZ and Illumination by Area technologies provide precise control of monitoring zones and lighting, ensuring clear, actionable images even in challenging conditions. Built-in IR illumination delivers visibility up to 100 metres, while efficient H.265 compression reduces bandwidth and storage requirements without compromising image quality.

Designed for outdoor and critical infrastructure applications, the VSIPU-2TS features a rugged metal housing rated to IP67 and IK10 for weather and vandal resistance. Additional features including two-way audio, edge recording via Micro SD, and PoE/ePoE support make this camera a versatile and reliable solution for perimeter security across industrial, commercial, and high-risk sites.

Camera features:
• Multi-sensor, multi-focal length surveillance system
• 3 x 2.0MP (1920 x 1080) sensors, recording at 25fps
• 3.6mm, 12mm and 25mm focal lengths across 3 video channels
• Multi-zone infrared for night illumination across 3 focal lengths
• MicroSD slot for recording at the edge up to 1TB
• Fine chassis and micro PTZ adjustment for accuracy
• Intelligent AI detection, create 1 tripwire/intrusion rule across 3 channels
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• IP67 weather and IK10 vandal rated housing for outdoor use

Image Sensor: Channel 1–3: 1/2.8" CMOS

Max. Resolution: 2.0 Megapixel

Effective Pixels: 1920 × 1080

RAM / ROM: 2GB / 4MB

Min. Illumination: 0.0004 Lux at F1.6 (B&W, 30 IRE)

S/N Ratio: >56dB

Infrared System: Built-In IR Illumination, Up to 100 m

Lens Type: Fixed

Lens / Iris: Channel 1: 3.6 mm F1.6 / Channel 2: 12 mm F2.0 / Channel 3: 25 mm F2.8 / Iris: Fixed (Channel 1–3)

Field of View: Channel 1: Horizontal: 85.9° / Vertical: 46.7° / Channel 2: Horizontal: 25.7° / Vertical: 14.4° / Channel 3: Horizontal: 13° / Vertical: 7.4°

Focus: Fixed Focus

Detect (25px/m): Channel 1: 53.7 m / Channel 2: 172.4 m / Channel 3: 331.0 m

Observe (63px/m): Channel 1: 21.5 m / Channel 2: 69.0 m / Channel 3: 132.4 m

Recognise (125px/m): Channel 1: 10.7 m / Channel 2: 34.5 m / Channel 3: 66.2 m

Identify (250px/m): Channel 1: 5.4 m / Channel 2: 17.2,m / Channel 3: 33.1 m

Resolution: Channel 1–3: 1080p (1920 × 1080)

Frame Rate (Main): 1920 × 1080 at 1–25fps

Frame Rate (Sub): 704 × 576 at 1–25fps

Frame Rate (Third): N/A

Video Compression: H.265 / H.264 / H.264H / H.264B / MJPEG (MJPEG Sub-Stream Only)

Bit Rate: 3–8192Kbps

Bit Rate Control: VBR / CBR

Day/Night: Auto (ICR) / Colour / B&W

Lighting Compensation: BLC / HLC / Digital WDR / SSA

Smart Scene Adaptive (SSA): Yes

White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control: Auto / Manual

Noise Reduction: 3D NR

Picture Control: Mirror / Flip / Rotation (0° / 90° / 180° / 270°)

Intelligent Functions: Motion Detection (4 Zones) / Region of Interest (4 Zones) / Privacy Masking (4 Zones) / Smart IR / Abandoned Object / Moving Object

Perimeter Protection: Tripwire & Intrusion (Human & Vehicle Classification Supported)

Face Detection: N/A

Face Attributes: N/A

People Counting: N/A

Heat Map: N/A

Event Trigger: Motion Detection / Video Tampering / Scene Change / Network Disconnection / IP Conflict / Illegal Access / Storage Anomaly

Intelligent Search: Smart Search via NVR / Search Tripwire & Intrusion Events by Human or Vehicle

Ethernet: RJ-45 (10/100 Base-T)

Protocol: IPv4 / IPv6 / HTTP / HTTPS / TCP / UDP / ARP / RTP / RTSP / RTCP / SMTP / FTP / SFTP / DHCP / DNS / DDNS / QoS / UPnP / NTP / Multicast / ONVIF (S/G/T) / CGI / SDK

Streaming Method: Unicast / Multicast

Max. User Access: 20 Users

Video Interface: No Additional Video Output

Audio Interface: Built-In Dual Mic / Built-In Loudspeaker / 1 Channel RCA Input/Output / Audio Compression: G.711a / G.711Mu / G726 / PCM

Alarm Interface: 2 Channels Input (5mA 3–5VDC, Wet Contact) / 2 Channels Output (300mA 12VDC, Wet Contact)

RS485: 1 × RS485 Port (1200–115,200bps)

Edge Storage: MicroSD Card (Up to 1TB) / NAS / FTP / SFTP

Interoperability: ONVIF (Profile S & Profile G & Profile T & Profile M) / CGI

Power Supply: 12VDC / PoE+ (802.3at) / ePoE / Dual Power Backup (Simultaneous PoE and 12VDC)

Power Consumption: 4.3W (12VDC) / 5.5W (PoE) / Max. Consumption (Infrared + Loudspeaker + IVS): 22.1W (12VDC) / 23.6W (PoE)

Operating Conditions: Temperature: -40°C to +60°C / Humidity: ≤95% RH (Non-Condensing)

Ingress Protection: IP67

Vandal Resistance: IK10

Series: Ultimate AI Series

Camera Type: Bullet

Housing: Metal

Pan/Tilt/Rotation: Tri-Axial Adjustment: Pan: 0°–360° / Tilt: 0°–70° / Rotation: 0°–360° / Micro PTZ: Tilt: -5°–10° / Built-In Level

ePoE: Yes

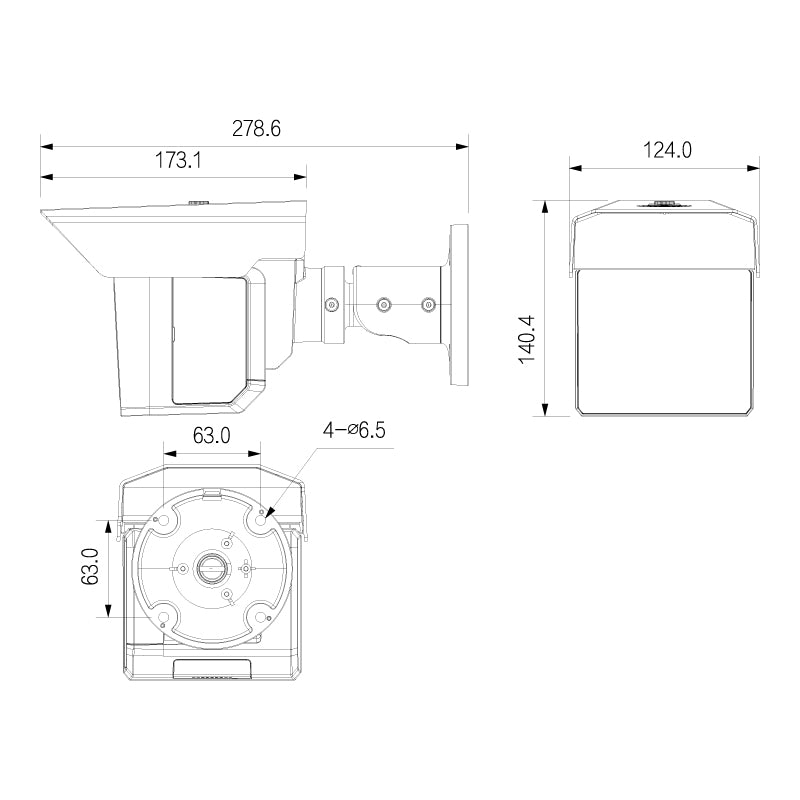

Dimensions: 278.6 × 124.0 × 140.4 mm (L × W × H)

Net Weight: 2.40 kg

Warranty: 4 Years

Shipping Width: 160 mm

Shipping Height: 330 mm

Shipping Depth: 180 mm

Shipping Weight: 3.20 kg
