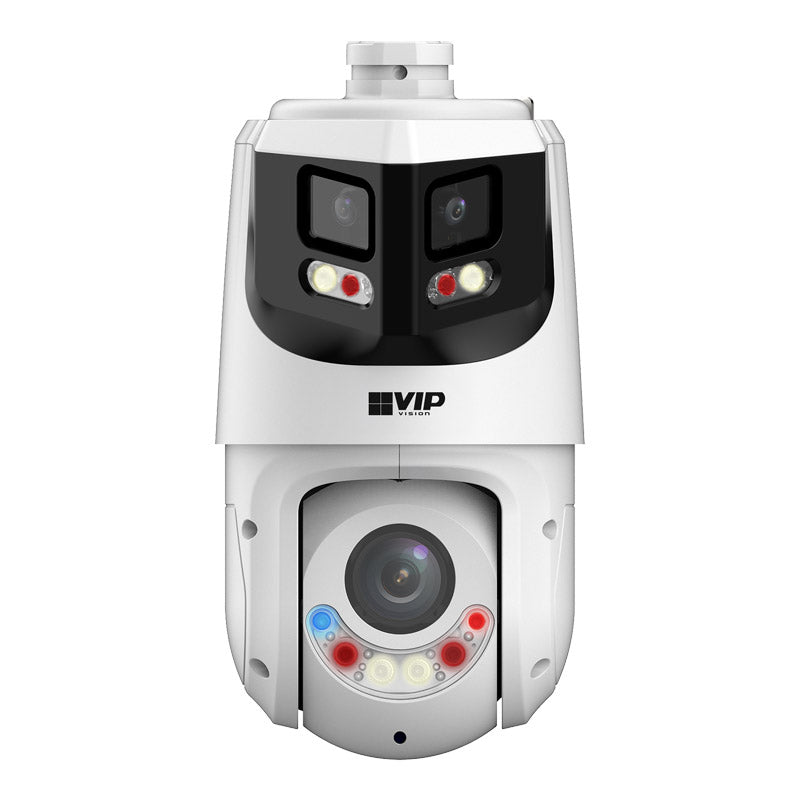

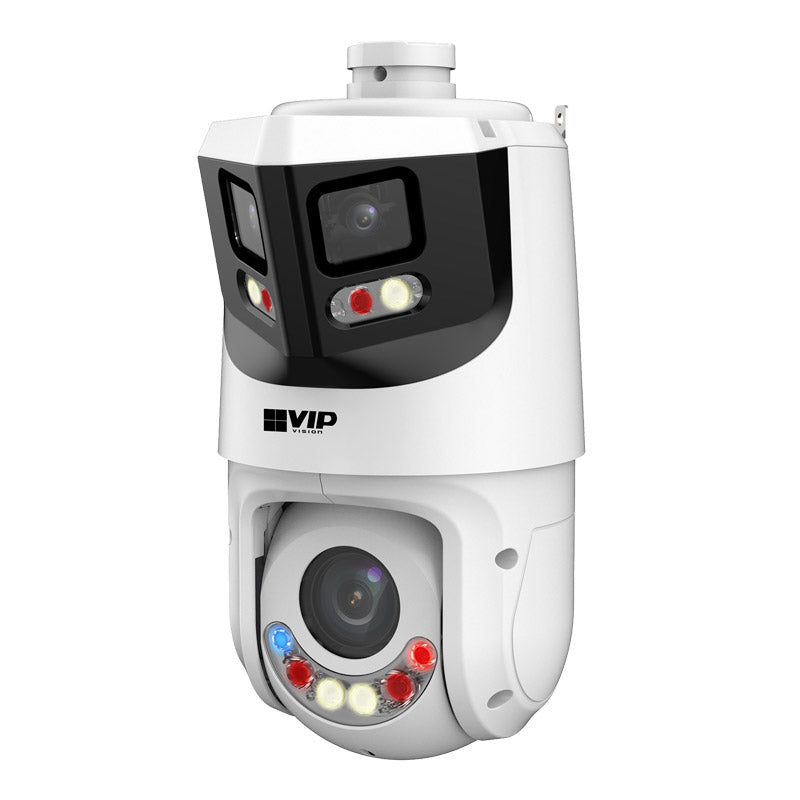

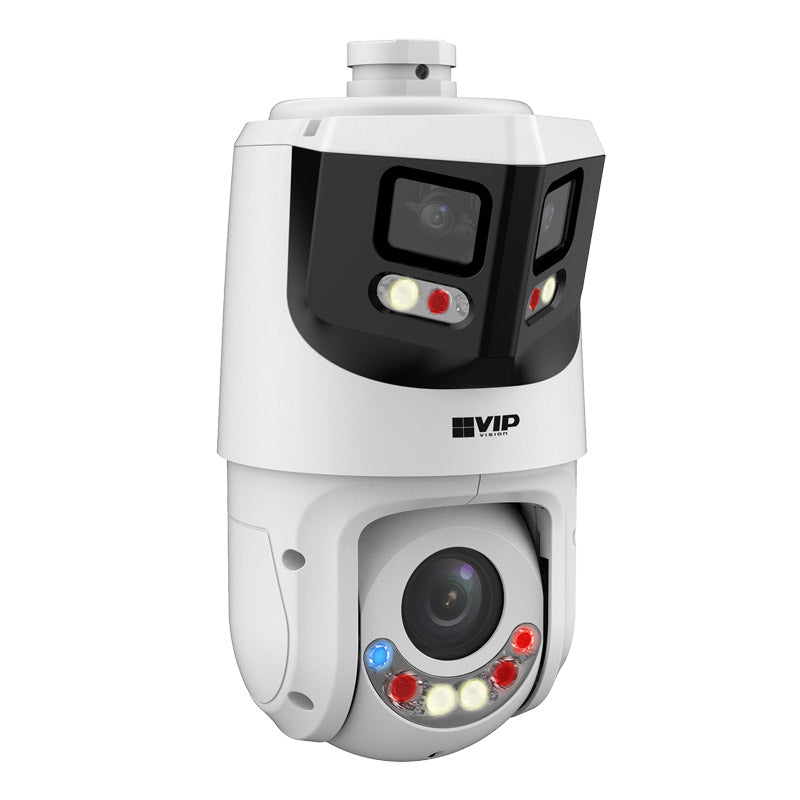

VIP Vision Professional AI Multi Vision Camera (PTZ + 180º Turret)

VSIPPTZ-4P8X

Regular price $1,249.00

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

Deliver comprehensive surveillance for large sites with this two-in-one CCTV camera. Multi Vision combines the wide-angle coverage of a 180º turret with the long-range zoom of a PTZ. Once set up, upon a human or vehicle detection event, the PTZ can use auto tracking to track the subject, while the panoramic camera continues to capture the whole scene. The Multi Vision camera can also be configured to trigger a white LED spotlight for security lighting, a flashing blue/red LED strobe and a loud siren with programmable message/tone, to deter intruders.

Camera features:
• Stream up to 8.0MP (4096 x 1860) at 25fps (Turret) and 4.0MP (2560 x 1440) at 25fps (PTZ)
• Dual wide-angle lenses for complete site coverage and 25x zoom lens for detailed shots
• Activates spotlight, flashing light & siren, and switches from IR to colour in response to alarm events
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• Auto tracking via people/vehicles AI rules
• 24/7 Colour low light footage as low as 0.005lx
• IP67 weather rated housing for outdoor use
• This model requires 2 available channels when recording to an NVR

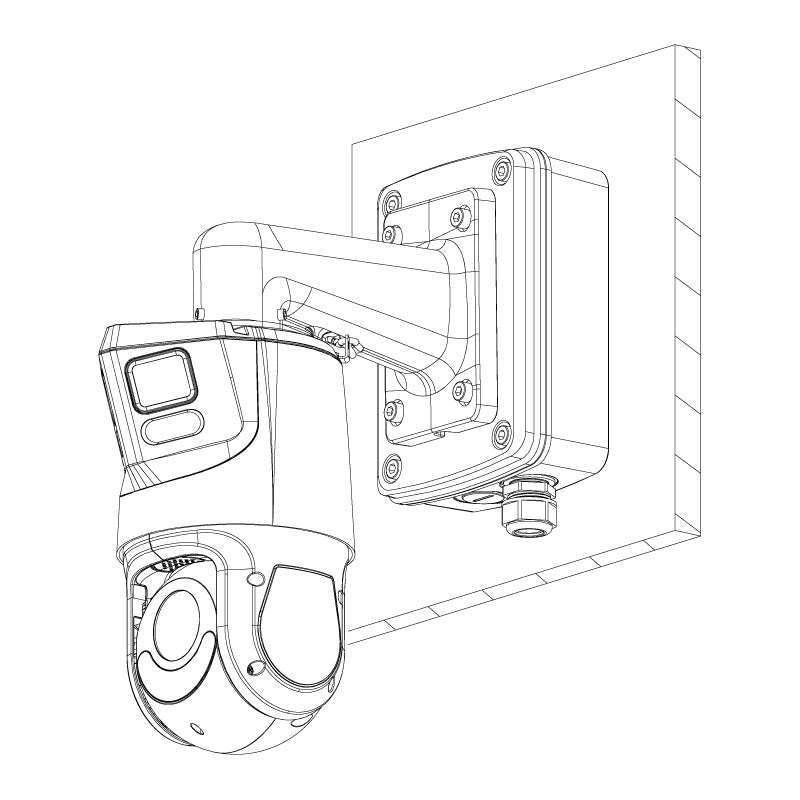

*Wall-mount bracket (VSBKTB305W) included

Image Sensor: Turret: 1/2.7" CMOS / PTZ: 1/2.8" CMOS

Max. Resolution: 8.0 Megapixel

Effective Pixels: Turret: 4096 × 1860 / PTZ: 2560 × 1440

RAM / ROM: Turret: 2GB / 4GB / PTZ: 1GB / 4GB

Min. Illumination: Turret: 0.005 Lux at F1.4 (Colour, 30 IRE) / 0.0005 Lux at F1.4 (B&W, 30 IRE) / 0 Lux (Illuminator) / PTZ: 0.005 Lux at F1.6 (Colour, 30 IRE) / 0.0005 Lux at F1.6 (B&W, 30 IRE) / 0 Lux (Illuminator)

S/N Ratio: N/A

Infrared System: 2 × Infrared LEDs, 30 m Range by Turret / 50 m Range by PTZ, Auto / Manual On/Off Control

Lens Type: Motorised Varifocal

Lens / Iris: Turret: 2.8 mm F1.0 Fixed Lens / PTZ: 5–125 mm F1.6–F3.6 Motorised Lens with Auto Iris

Field of View: Turret: Horizontal: 180° / Vertical: 86° / PTZ: Horizontal: 52°–3.0° / Vertical: 40°–2.2° / Diagonal: 63°–3.7°

Focus: Turret: Auto Focus / 0.6 m Min. Focus Distance / PTZ: Auto / Semi-Auto / Manual Control, 0.1–0.5 m Min. Focus Distance

Detect (25px/m): Turret: 56 m / PTZ: Wide: 100 m / Tele: 2500 m

Observe (63px/m): Turret: 22 m / PTZ: Wide: 40 m / Tele: 1000 m

Recognise (125px/m): Turret: 11 m / PTZ: Wide: 20 m / Tele: 500 m

Identify (250px/m): Turret: 6 m / PTZ: Wide: 10 m / Tele: 250 m

Pan / Tilt Range: Pan: 0°–360° (Endless) / Tilt: -15°–90° / Auto-Flip: 180°

PTZ Speed: Preset: Pan: 0.1°–180°/s / Tilt: 0.1°–90°/s / Manual: Pan: 0.1°–180°/s / Tilt: 0.1°–90°/s

Modes / Presets: Up to 300 Presets / 5 Patterns / 8 Tours / Auto Pan / 5 Auto Scans

Start-up Action: Auto-Restore to Previous PTZ/Lens Status

Resolution: Turret: 8MP (4096 × 1860) to VGA (640 × 480) / PTZ: 4MP (2560 × 1440) to D1 (704 × 576 / 704)

Frame Rate (Main): Turret: 8MP (1–25fps) / PTZ: 4MP (1–25fps)

Frame Rate (Sub): Turret: 1024 × 448 (1–25fps) / PTZ: D1 (1–25fps)

Frame Rate (Third): N/A

Video Compression: Smart H.265+ / H.265 / Smart H.264+ / H.264B / H.264M / H.264H / MJPEG (Sub Stream 1)

Bit Rate: Turret: H.264: 128–16,384Kbps / H.265: 51–13,312Kbps / PTZ: H.264: 96–16,384Kbps / H.265: 38–10,240Kbps

Bit Rate Control: Constant Bit Rate (CBR) / Variable Bit Rate (VBR)

Day/Night: Auto (ICR) / Colour / B&W / Electronic

Lighting Compensation: Turret: BLC / HLC / Digital WDR / PTZ: BLC / HLC / True WDR (120dB)

Smart Scene Adaptive (SSA): N/A

White Balance: Auto / Indoor / Outdoor / Tracking / Manual / Sodium Lamp / Natural / Street Lamp

Gain Control: Auto / Manual / Gain Priority

Noise Reduction: 2D / 3D

Picture Control: Flip 180°

Face Recognition: N/A

Face Capture: N/A

Perimeter Protection: Tripwire / Intrusion / Crossing Fence Detection / Loitering Detection / Abandoned/Missing Object / Fast Moving / Parking Detection / People Gathering / Human Alarm Classification / Linkage Tracking

Auto Tracking: Auto-Tracking 3.0 for Person and Vehicle Tracking

Metadata: Supports Human, Motor Vehicles and Non-Motor Vehicle Search / Supports Face Image Capture and Footage Search by Face Image & Facial Attributes

People Counting: N/A

Heat Map: N/A

IVS Functions: Abandoned/Missing Object / Motion Detection / Region of Interest / Electronic Image Stabilisation (Detail Only) / Privacy Masking (24 Zones) / Defog

Event Triggers: Filter Motion Detection Alarms, Recognises Humans and Vehicles from Other Moving Objects

Region of Interest: Support

Optical Defog: Support

Digital Zoom: 16x

Privacy Masking: N/A

Image Stabilisation: Support

Ethernet: RJ-45 (100/1,000 Base-T)

Protocol: HTTP / HTTPS / TCP/IP / IPv4 / RTSP / UDP / SMTP / NTP / DHCP / DNS / DDNS / IPv6 / 802.1x / SSL / QoS / FTP / UPnP / ICMP / SNMP / IGMP / ARP / RTCP / RTP / PPPoE / RTMP / Bonjur / NFS

Streaming Method: Unicast / Multicast

Max. User Access: 20

Video Interface: N/A

Audio Interface: 1 Audio Input/Output / Audio Compression: PCM / G.711A / G.711Mu / G.726 / MPEG2-Layer2 / G.722.1 / G.729

Alarm Interface: 2 Channels In: 0–5VDC / 1 Channel Out

RS485: N/A

Edge Storage: MicroSD Card (512GB) / NAS / FTP / SFTP

Interoperability: ONVIF (Profile S & Profile G & Profile T) / CGI / SDK / P2P

Power Supply: 12VDC / PoE+ (802.3at)

Power Consumption: <14W (Basic) / <25W (Max.)

Operating Conditions: -40°C to +65°C / Less Than 95% RH

Ingress Protection: IP66

Vandal Resistance: N/A

Series: Professional AI Series

Camera Type: PTZ

Housing: Metal Chassis

Pan/Tilt/Rotation: Pan: 0°–360° Endless / Tilt: -15° to +90° / Auto Flip: 180°

ePoE: N/A

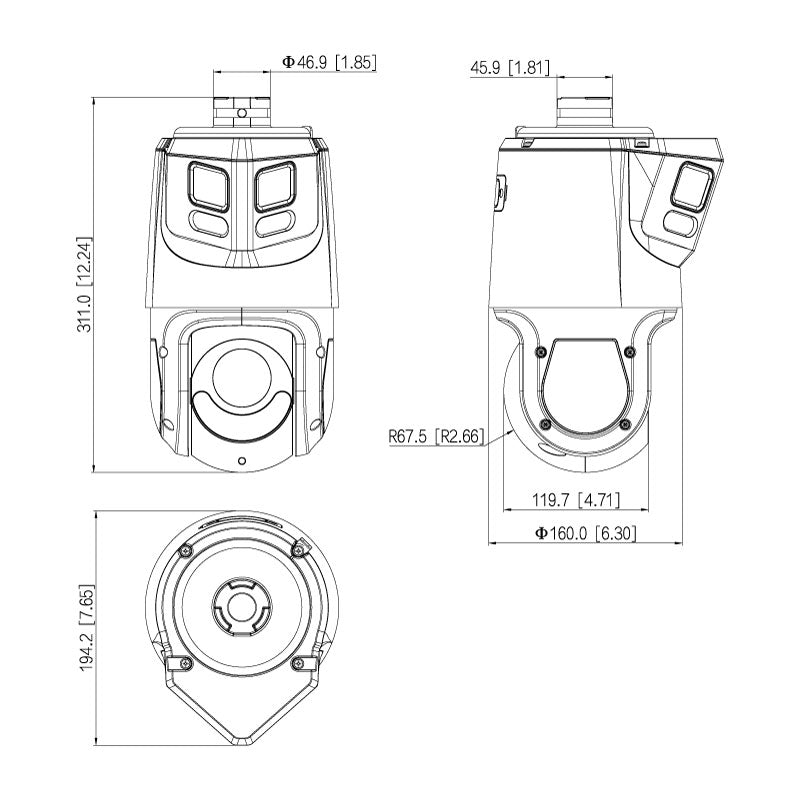

Dimensions: 194 × 160 × 311 mm

Net Weight: 3.1 kg

Warranty: 4 Years

Shipping Width: 200 mm

Shipping Height: 400 mm

Shipping Depth: 250 mm

Shipping Weight: 4.60 kg
