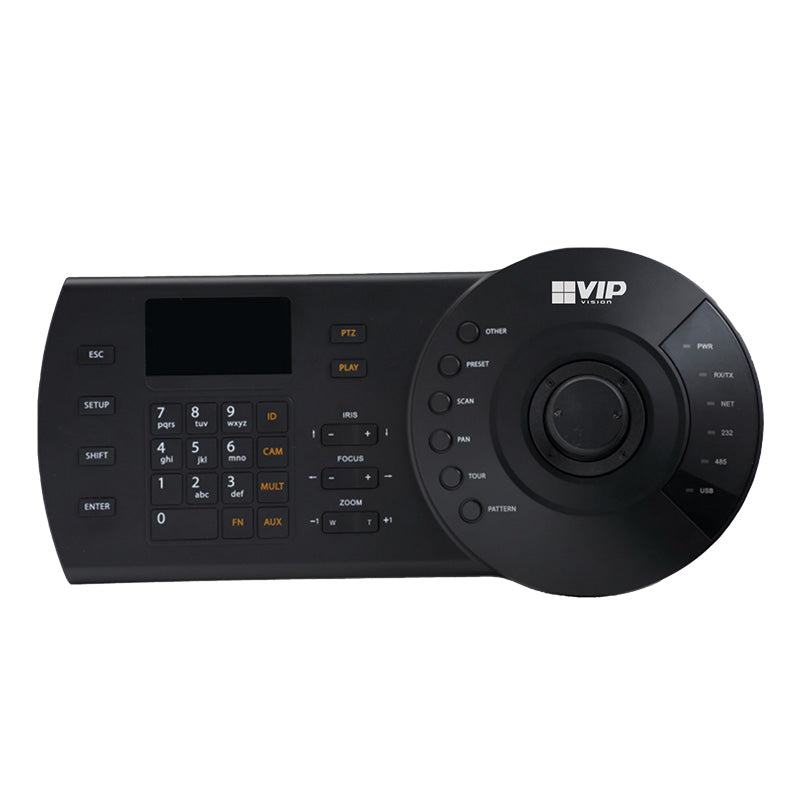

VIP Vision IP PTZ Control Keyboard

VSIPPTZKB3

Regular price $453.75

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

The IP PTZ control keyboard is compatible with all VIP Vision, Securview and Watchguard PTZ cameras over a network.

Features:
• Control a variety of PTZ cameras and DVRs with this PTZ keyboard
• Features RS485, RS422 (reserved), USB, RS232 & RJ45 connections
• Three dimensional joystick control of PTZ functions
• Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Auxiliary Functions
• 75.2mm×33.85mm on-keyboard LCD with user menu and operation/procedure tips
• Interfaces to PTZ domes and DVR/NVR via:
• Network mode: Control via RJ45 using IP Address/Port/Protocol
• Direct mode: Control via 1 RS232/2 RS485 using protocols below:
• DVR: DH2 / Camera protocols: DH-SD1/PELCO-D/PELCO-P
• Connect to SmartPSS or DSS platform via USB

Atmosphere Pressure: 86–106kPa

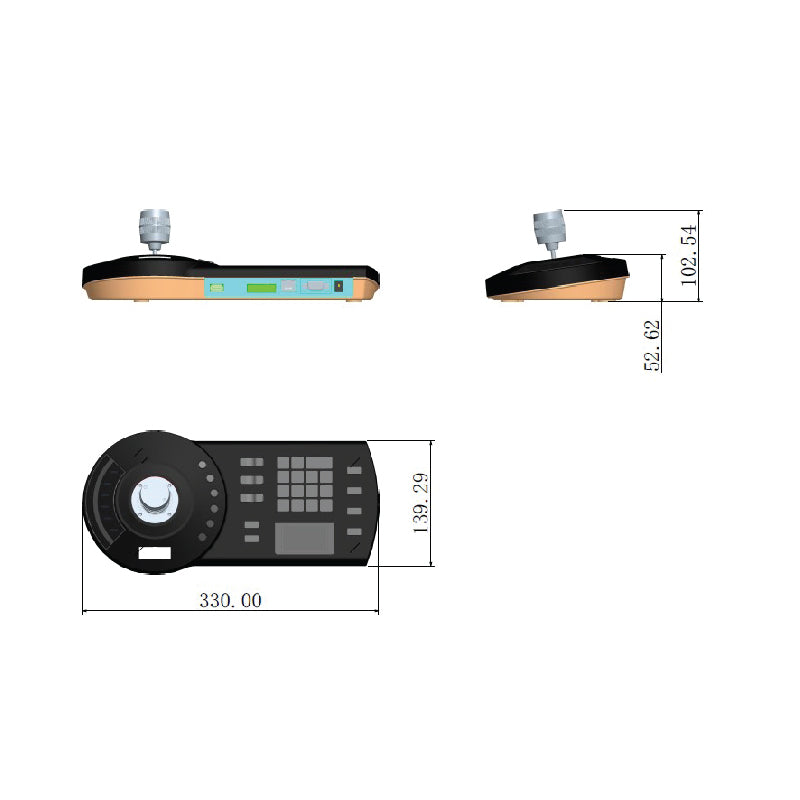

Dimensions: 330 × 139 × 53 mm (Not Including Joystick) / 330 × 139 × 103 mm (Including Joystick)

Direct Interface: 1 × RS232 / 2 × RS485

Joystick: 3-Axis, Vector-Solving, with Twisting, Return-to-Centre Head

LCD Display: 75.2 × 33.85 mm

Network Interface: RJ45

Power Consumption: 5W

Power Supply: Input: 100–240V 50Hz / 60Hz / Output: 12VDC / 1000mA

Weight: 1.3 kg (Including Package)

Working Humidity: 10–90%

Working Temperature: -10°C to +55°C

Warranty: 4 Years

Shipping Width: 398 mm

Shipping Height: 162 mm

Shipping Depth: 208 mm

Shipping Weight: 1.32 kg
