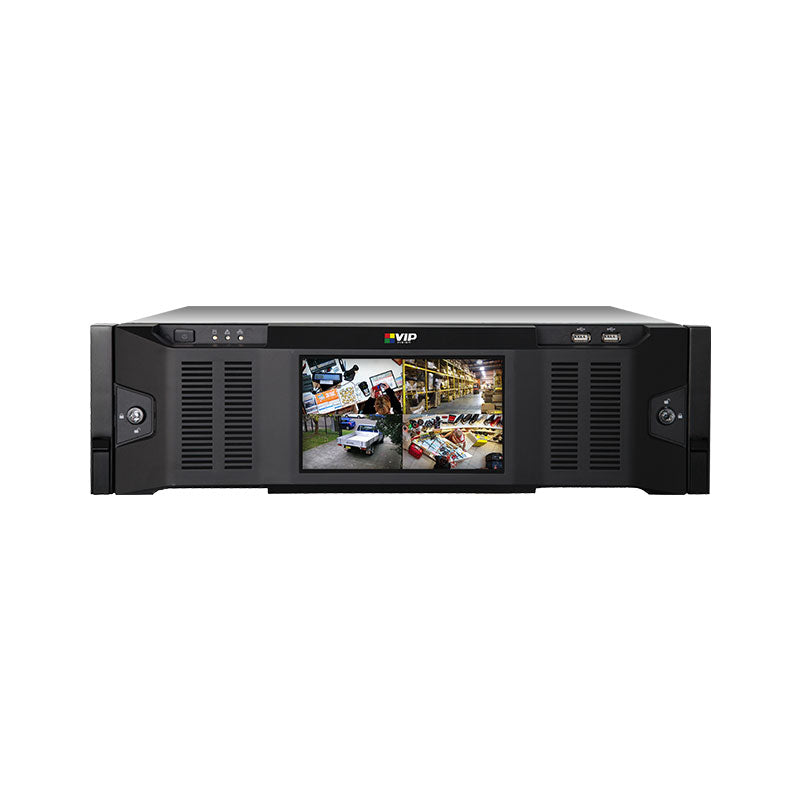

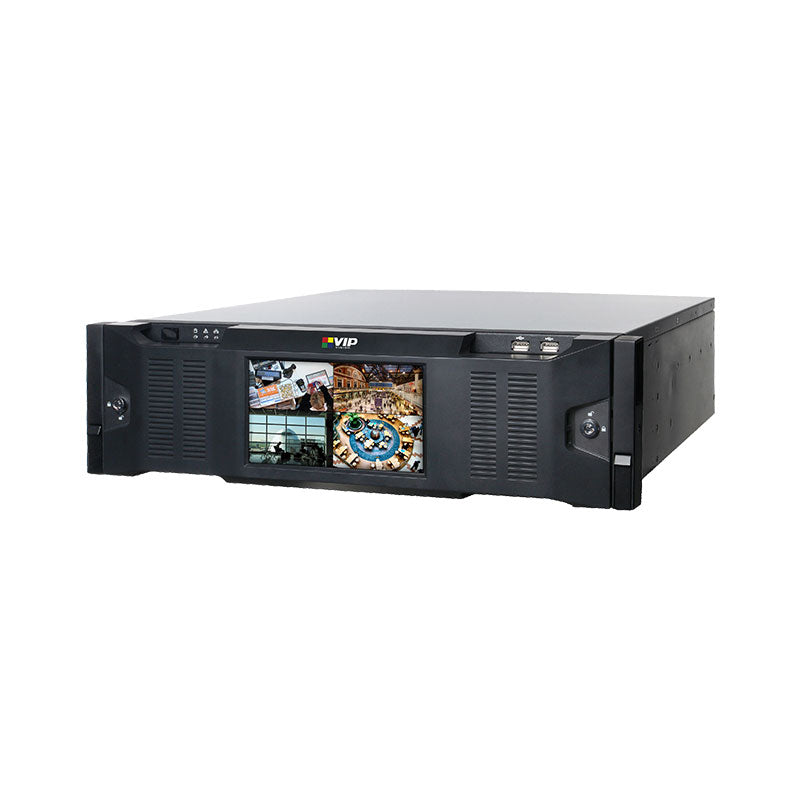

VIP Vision General System Management Centre

Main Processor: 64-Bit 4-Core CPU (CORE-I5-6600)

Operating System: Linux

System Disk: Seagate 7200 RPM Enterprise Class HDD, 2TB

Motherboard: Embedded Board (24/7 Operation)

Hard Disk Compatibility: SAS / SATA Disk

Hot Swap: Supports Hot Swap & Online Replacement

Power Redundancy: 1+1 Redundant Power

Memory: 16GB

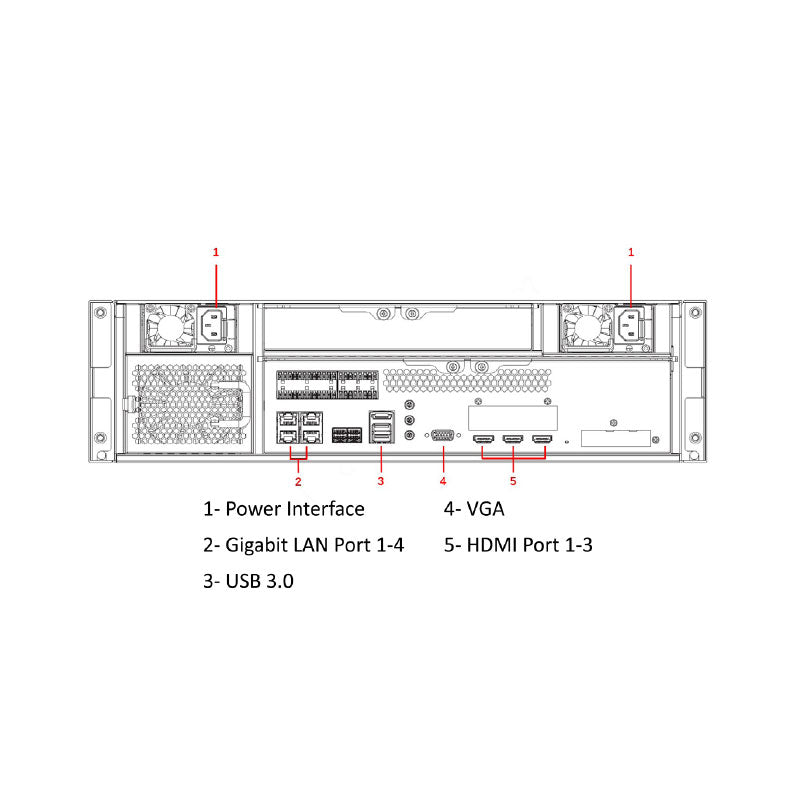

Network Port: 4 Ethernet Ports (100/1000Mbps)

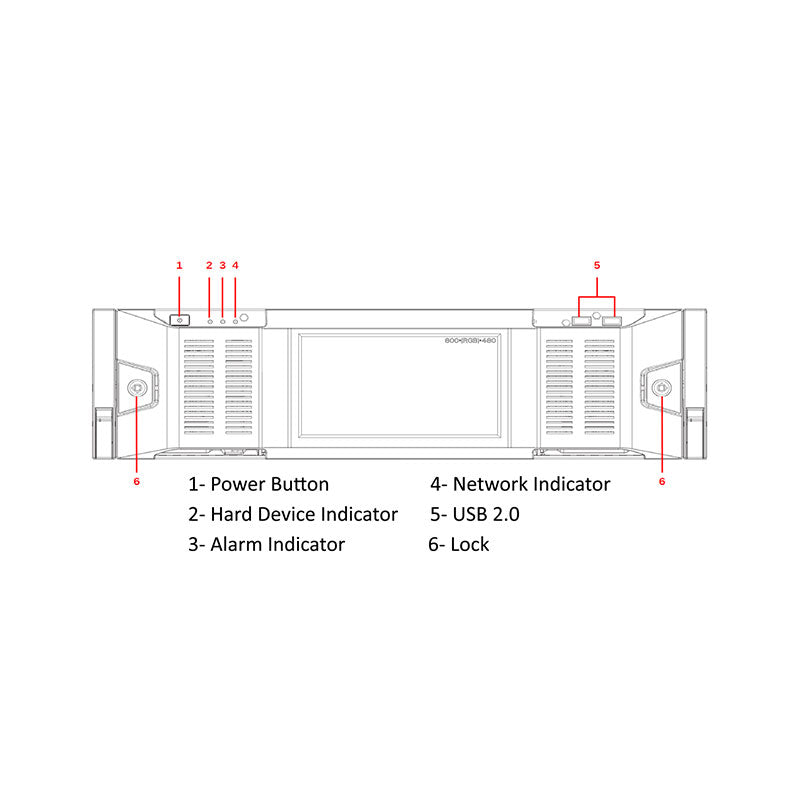

USB Port: Front Panel: 2 × USB 2.0 / Rear Panel: 2 × USB 3.0

HDMI: 3 × HDMI

VGA: 1 × VGA, as Network Config

HDD Installation: Built-in 1 × 2TB HDD Disk (2.5") for System; Supports 15 HDD Disks (3.5") for Video & Picture Storage (Max. 16TB per HDD, 200TB per Server)

Power: 315W (Max.), 210W (Stable)

Operating Environment: 0°C to +40°C / 10%–80% RH

Storage Environment: -20°C to +70°C / 5%–90% RH

Weight (Without Package): 19.1 kg

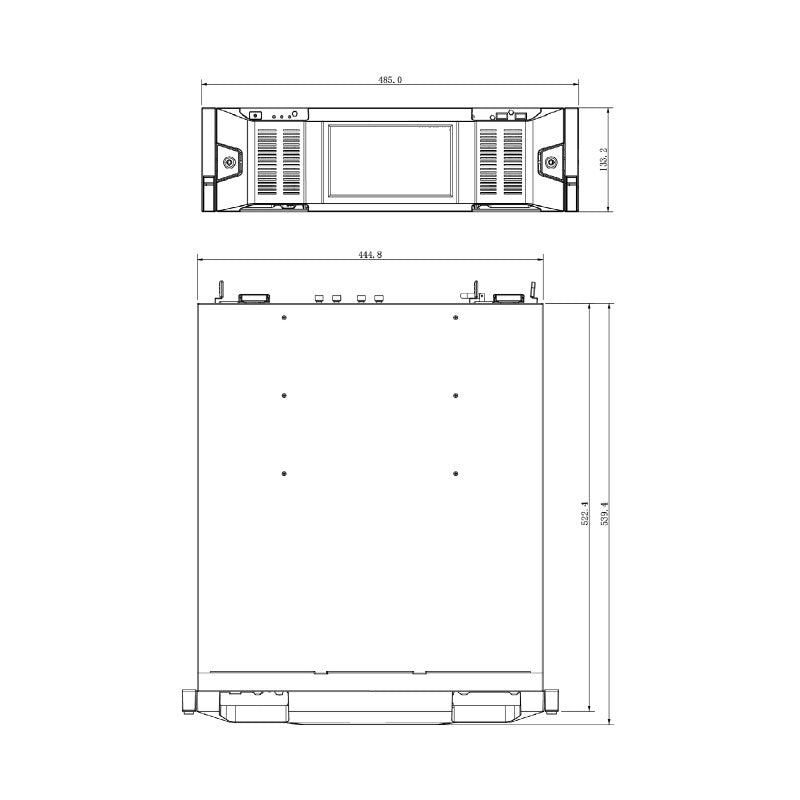

Dimension: 444.8 × 133.2 × 522.2 mm

Installation Method: Standard 19" Rack Installation

Secondary Development: Platform SDK Provided

Sub Servers: Up to 5 Sub-Servers

Included Device License: 1,000 Devices (Single Server) / 5,000 Devices (Multiple Servers)

Maximum Device Licences: 2,000 Devices (Single Server) / 6,000 Devices (Multiple Servers)

PC Client & DSS Mobile Users: 50 Online, 200 Total

Roles: 100 (32 per User)

DSS Mobile for VDP: 500 Online, 5,000 Total

Video: 500 Devices, 1,000 Channels (Single Server) / 2,500 Devices, 5,000 Channels (Multiple Servers)

ONVIF: 500 Devices, 1,000 Channels (Single Server) / 2,500 Devices, 5,000 Channels (Multiple Servers)

P2P: 32 Devices

Access Control: 200 Devices, 500 Doors (Single Server) / 600 Devices, 1,500 Doors (Multiple Servers)

Video Intercom Devices: 2,000 Devices

Alarm Controllers: 64 Devices, 640 Zones (Single Server) / 320 Devices, 3,200 Zones (Multiple Servers)

Facial Recognition Channels: 20 Devices, 100 Channels (Single Server) / 100 Channels, 500 Channels (Multiple Servers)

ANPR Camera: 100 Channels (Single Server) / 500 Channels (Multiple Servers)

Alarm Host: 100 Channels (Single Server) / 500 Channels (Multiple Servers)

Video Metadata: 100 Channels (Single Server) / 500 Channels (Multiple Servers)

People Counting & Heat Map: 32 Channels (Single Server) / 160 Channels (Multiple Servers)

Total Bandwidth Incoming / Outgoing / Storage: 600Mbps (Single Server) / 3000Mbps (Multiple Servers)

Video Bandwidth Incoming / Outgoing / Storage: 600Mbps (Single Server) / 3000Mbps (Multiple Servers)

Picture Bandwidth Incoming / Outgoing / Storage: 100 Channels (Single Server) / 500 Channels (Multiple Servers)

Maximum Capacity per Storage Server (Local & IPSAN): 200TB (Single Server) / 1PB (Multiple Servers)

Prerecording Bandwidth for Alarm Recordings: 400Mbps (Single Server) / 2,000Mbps

General Recording Plans: 3,000

Motion Detection Recording Plans: 3,000

Video Retrieval Plans: 3,000

Event Reception (w/o Picture): 240 per Second (Single Server) / 480 per Second (Multiple Servers)

Event Reception (w/ Picture): 100 per Second (Single Server)

Access Control Events: 240 per Second (Single Server) / 480 per Second (Multiple Servers)

Event Sources for Event Rules: 3,000

Combined Event Rules: 100

Combined Events: 200

Hierarchy of Raster Map: 8 Hierarchies

Raster Map Total: 256

Map Size of Raster Map: Up to 15MB

Resources per Raster Map: 300

Persons & Vehicle Groups: 999

Group Levels: 10

Persons: 100,000

Cards: 200,000

Faces: 100,000

Fingerprints: 200,000

Vehicles: 20,000

Total Vehicles: 20,000

Total Vehicle Groups: 16 Groups

Parking Lots: 8

Entrances & Exits: 16

Total Faces: 100,000

Face Watch List: 50

Faces per Watch List: 50,000

Vehicle Watch Lists: 16

Vehicles per Vehicle Watch List: 20,000

Total Groups: 8

Rules per Group: 20

Door Access Rules for People: 10,000 People (1 Password, 2 Face Images, 3 Fingerprints & 5 Cards for Each Person)

Zones: 256

Door Access Rules: 200

Public Passwords: 1,500

Appointments in Progress: 10,000

Notification Center Message: 1,000

Features: Face Recognition / ANPR / Metadata / People Counting / Heat Map / Video Intercom / Access Controller / Operation Logs / Service Logs (5,000,000 Each)

Warranty: 4 Years
