VIP Vision Access Control Card & Bluetooth Reader - Slimline

AC-WRB-CB

Regular price $89.00

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

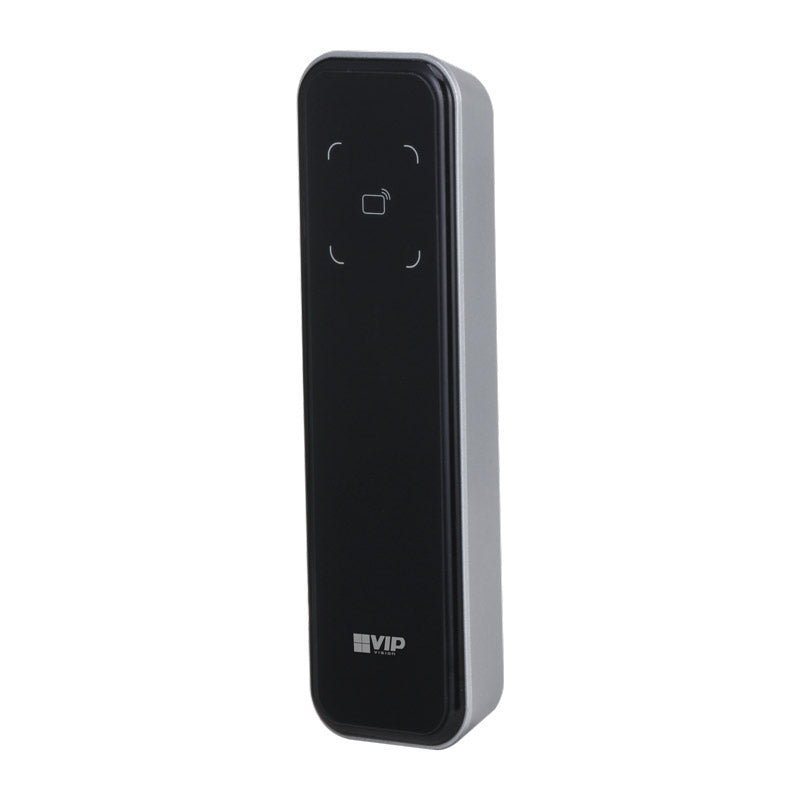

The AC-WRB-CB reader in the AC-W Series is a slimline, surface mount card and Bluetooth authentication reader, with premium design and quick surface mount installation. Users are prompted to access alerts via audio and LED indicator cues for a smooth access control experience, ideal for commercial applications.

Enable authentication via Bluetooth and mobile app to use your phone as your access key. Bluetooth unlock operates at set distance from the reader, from 0.2m up to 10m.

• Card and Bluetooth reader authentication
• Web management via controller and web browser
• RS-485 or Wiegand protocol via 13.56MHz RFID
• Reader can enroll new access cards or keyfobs
• LED and chime for user audio/visual prompts
• Anti-tamper alarm and backlit keypad
• Polycarbonate and tempered glass construction
• IP66 weather rated (fitted as per install guidelines)


Product: Card/Bluetooth Reader

Communication: RS-485 / Wiegand 34

RFID Format: 13.56MHz (Mifare)

RFID Read Range: ≤5 cm (RFID), 0.2 m–10 m (Bluetooth)

RFID Read Time: 0.1 s

Fingerprint Scan: No

Keypad: No

Audio: Buzzer

Light: Blue Backlight

Tamper Switch: Yes

Ingress Protection: IP66 (when installed as per product guidelines)

Vandal Protection: No

Power Supply: 12V DC, 0.5A

Power Consumption: ≤0.9W Standby, ≤1.7W Maximum

Operating Conditions: -30°C to +70°C / <95% RH

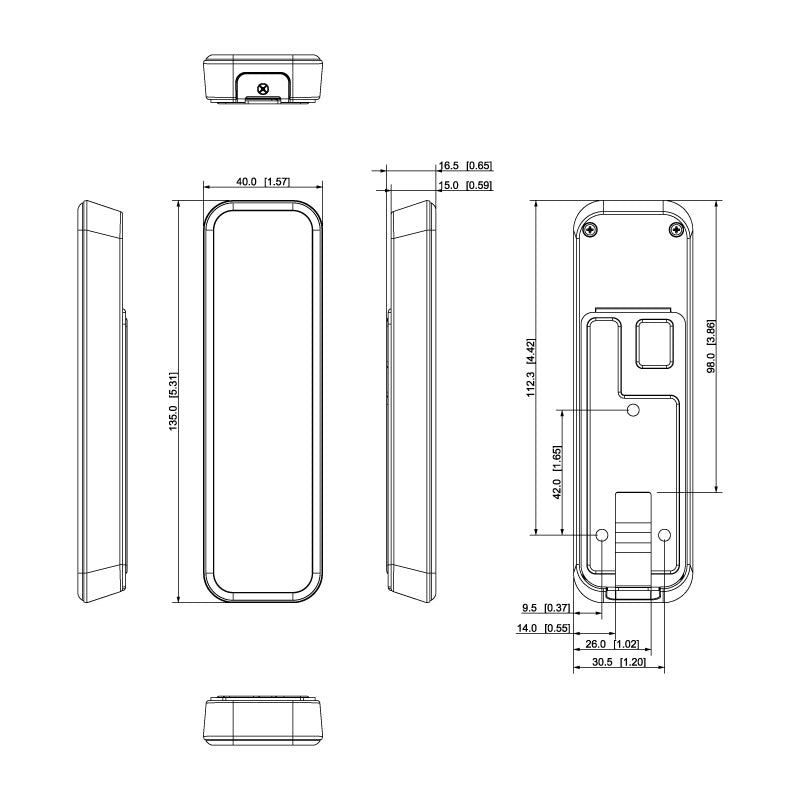

Dimensions: 135 × 40 × 15 mm

Net Weight: 0.16 kg

Warranty: 4 Years

Shipping Width: 75 mm

Shipping Height: 195 mm

Shipping Depth: 55 mm

Shipping Weight: 0.20 kg
