VIP Vision 9-port Unmanaged Gigabit Fibre Access PoE Ethernet Switch

VSETH-SW9GF2

Regular price $390.50

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

The VSETH-SW9GF2 is a 9-port Gigabit Ethernet switch designed for integrating with fibre-optic network infrastructure. Connect IP devices including surveillance, telephones, access points and more to fibre backbone with multiple gigabit SFP & Ethernet ports. It is ideal in connecting large facilities such as school & university campuses. This model features 4 ports of PoE.

Product features:
• 4 x Gigabit 1000Mbps PoE ports
• 4 x Gigabit 1000Mbps SFP fibre ports
• 1 x Gigabit 1000Mbps uplink port
• Total PoE power load up to 120W
• Unmanaged switch for plug and play applications
• DIN rail mountable for neat rackmount installations
• Full metal enclosure for professional appearance
• Lightning overvoltage protection up to 4kV
• Electrostatic discharge protection up to 8kVW
• Operates in extreme temperatures from -30°~65°C


Ports: 9 Ports

Speed: Gigabit 10/100/1000

Management: Unmanaged

Device Ports: 4 × 10/100/1000 Base-T (PoE)

Uplink Ports: 4 × 1000 Base-X / 1 × 10/100/1000 Base-T

Switching Capacity: 33Gbps

Packet Forwarding Rate: 13.39Mpps

Exchange Mode: Store & Forward

PoE: Yes

PoE Protocol: IEEE 802.3af / IEEE 802.3at / Hi-PoE / IEEE 802.3bt

Switch Power Load: Port 1 ≤90W / Port 2–4 ≤30W / Total ≤120W

Switch Management: Unmanaged

MAC Address Capacity: 4K

Virtual LAN: N/A

Network Time Protocol: N/A

Spanning Tree Protocol: N/A

Port Aggregation: N/A

Port Mirroring: N/A

LLDP: N/A

DHCP: N/A

Extend Mode: N/A

Flow Control: N/A

Security Features: N/A

System Maintenance: N/A

Quality of Service: N/A

Network Management: N/A

PoE Management: N/A

Input Power: 48–57VDC

Lightning Protection: Common Mode: 4kV / Differential Mode: 2kV

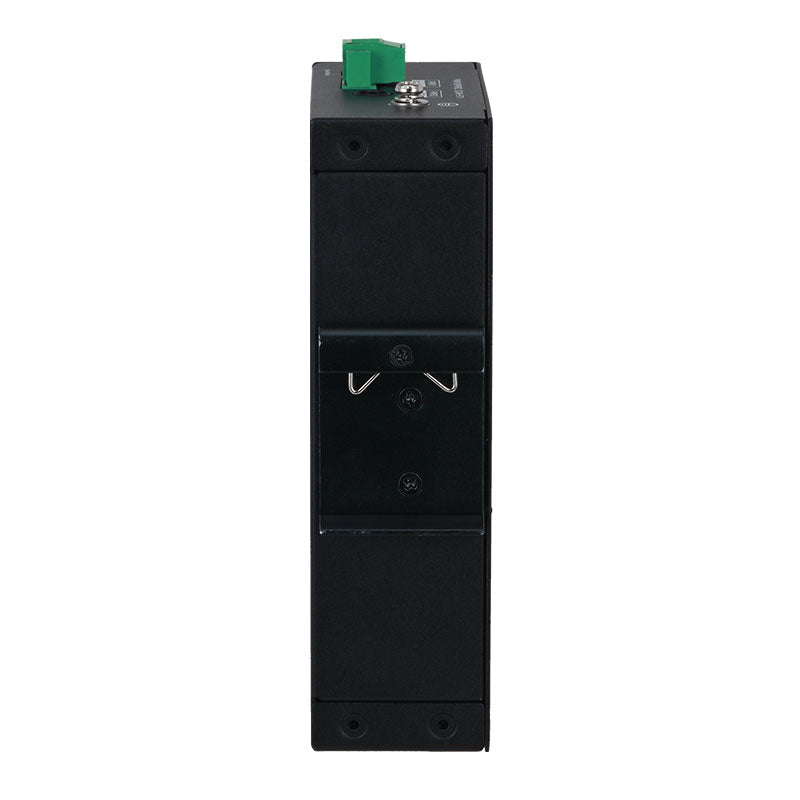

Mounting Options: DIN Rail

Operating Environment: -30°C to +65°C / RH 10–90%

Weight: 0.67 kg

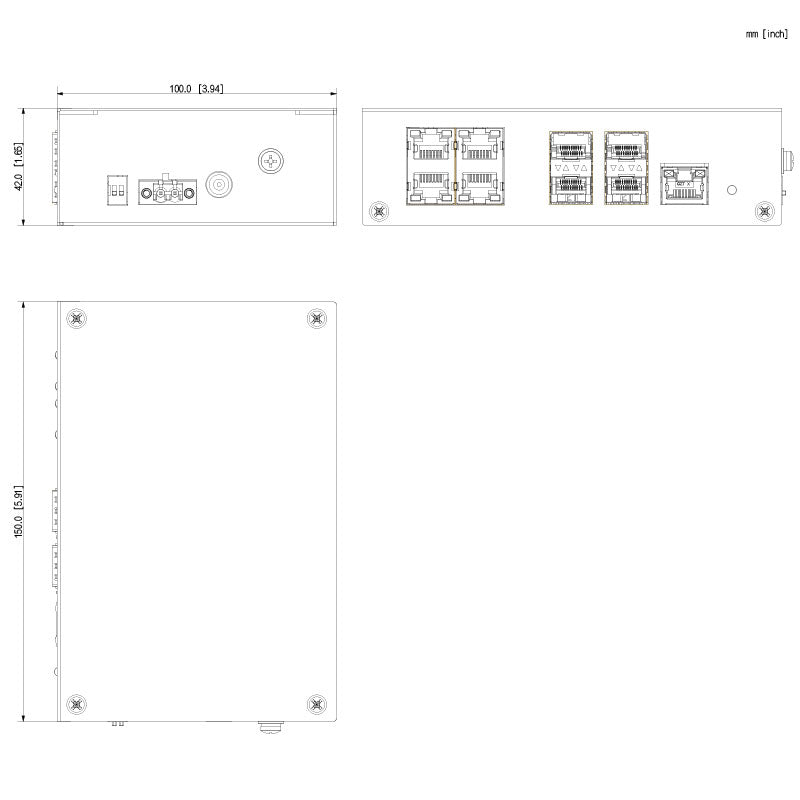

Dimensions: 150 × 110 × 42 mm

ESD Protection: Air Discharge: 8kV / Contact Discharge: 6kV

Warranty: 4 Years

Shipping Width: 110 mm

Shipping Height: 85 mm

Shipping Depth: 85 mm

Shipping Weight: 1.40 kg
