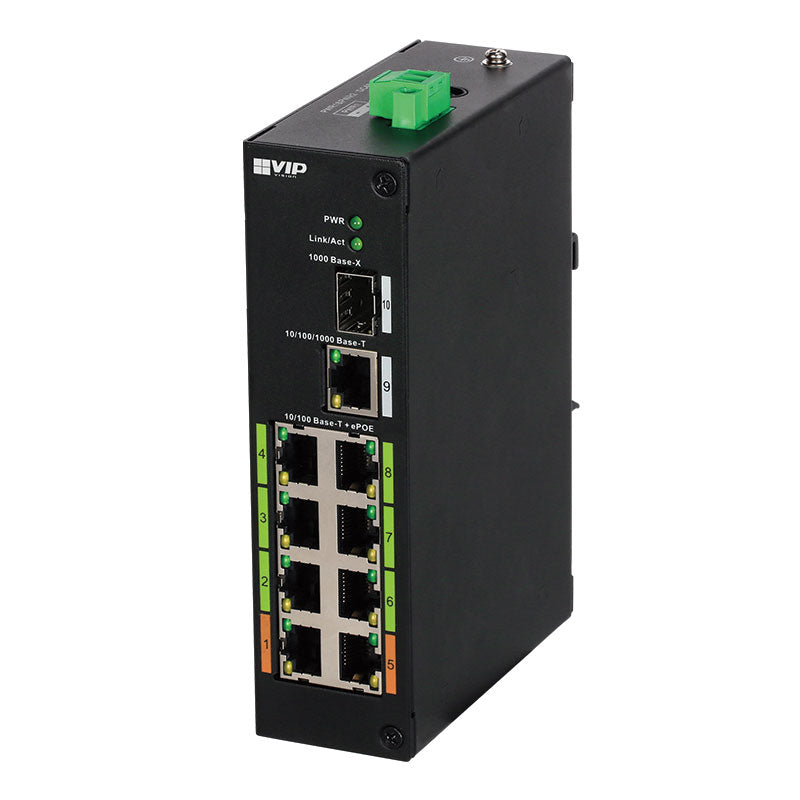

VIP Vision 8-port Unmanaged Fast Extended PoE DIN Rail Ethernet Switch

Ports: 8 Ports

Speed: Fast 10/100

Management: Unmanaged

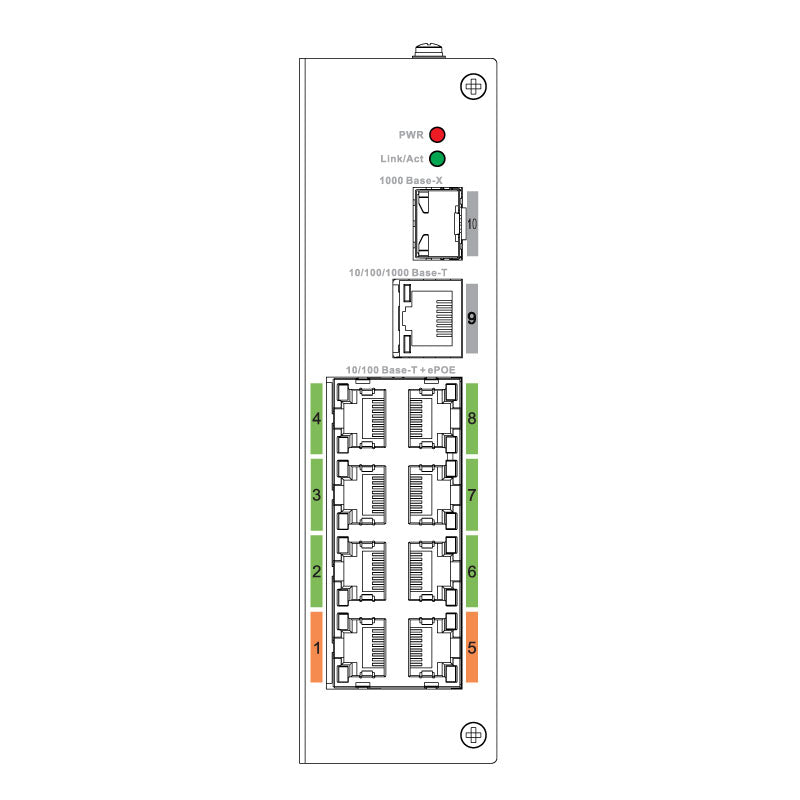

Device Ports: 8 × 10/100 Base-T (PoE Power Supply Ports)

Uplink Ports: 1 × 1000 Base-X / 1 × 10/100/1000 Base-T

Switching Capacity: 8.8Gbps

Packet Forwarding Rate: 4.17Mpps

Exchange Mode: Store & Forward

PoE: Yes

PoE Protocol: PoE (IEEE 802.3af) / PoE+ (IEEE 802.3at) / Hi-PoE

Switch Power Load: Ports 1, 5: ≤60W / Ports 2, 3, 4, 6, 7, 8: ≤30W (Total: ≤120W)

Switch Management: Unmanaged

MAC Address Capacity: 8K

Virtual LAN: N/A

Network Time Protocol: N/A

Spanning Tree Protocol: N/A

Port Aggregation: N/A

Port Mirroring: N/A

LLDP: N/A

DHCP: N/A

Extend Mode: N/A

Flow Control: Enabled

Security Features: N/A

System Maintenance: N/A

Quality of Service: N/A

Network Management: N/A

PoE Management: N/A

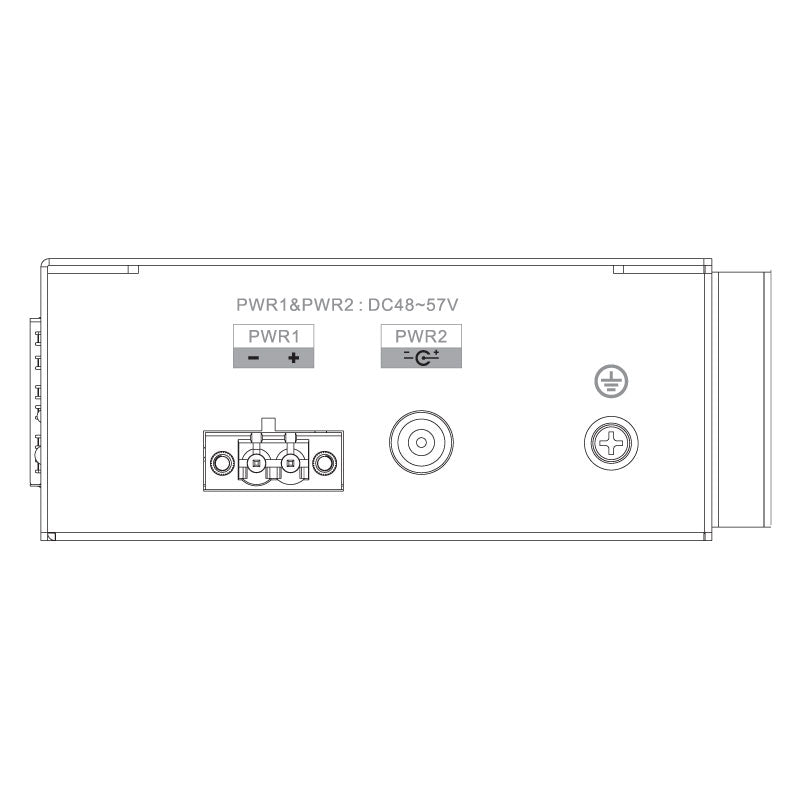

Input Power: 48–57VDC

Lightning Protection: Common Mode: 4kV / Differential Mode: 2kV

Mounting Options: DIN Rail

Operating Environment: -30°C to +65°C / RH 10–90%

Weight: 0.59 kg

Dimensions: 150 × 100 × 42 mm

Warranty: 4 Years

Shipping Width: 80 mm

Shipping Height: 270 mm

Shipping Depth: 240 mm

Shipping Weight: 2.00 kg
