VIP Vision 4.0MP Explosion Rated Bullet

Image Sensor: 1/2.8" 4.0MP Progressive Scan CMOS

Max. Resolution: 4.0 Megapixel

Effective Pixels: 2688 × 1520

RAM / ROM: 512MB / 128MB

Ultra Low Light Colour: N/A

Min. Illumination: 0.005 Lux at F1.5 (Colour) / 0.0005 Lux at F1.5 (B&W) / 0 Lux (IR On)

S/N Ratio: >56dB

Infrared: Yes

Infrared System: 3 × Infrared LEDs, 50 m Range, Auto / Manual On/Off Control

Lens Type: Fixed

Lens / Iris: 2.7–13.5 mm F1.5 Motorised Varifocal Lens with Fixed Iris

Field of View: Horizontal: 99°–29° / Vertical: 53°–16°

Focus: Fixed

Detect (25px/m): 64 m (Wide) / 210 m (Tele)

Observe (63px/m): 25 m (Wide) / 84 m (Tele)

Recognise (125px/m): 13 m (Wide) / 42 m (Tele)

Identify (250px/m): 6.4 m (Wide) / 21 m (Tele)

Resolution: 4.0MP (2688 × 1520) to CIF (352 × 288)

Frame Rate (Main): 4.0MP (1–25fps)

Frame Rate (Sub): D1 (1–25fps)

Frame Rate (Third): 2.0MP / 1080p (1–25fps)

Video Compression: AI H.264/265 / Smart H.264+/265+ / H.264/+ / H.265/+ / MJPEG

Bit Rate: H.264 / H.265: 32–8192Kbps

Bit Rate Control: Constant Bit Rate (CBR) / Variable Bit Rate (VBR)

Day/Night: Auto (ICR) / Colour / B&W

Lighting Compensation: BLC / HLC / WDR (120dB)

Smart Scene Adaptive (SSA): Yes

White Balance: Auto / Natural / Street Lamp / Outdoor / Manual

Gain Control: Auto

Noise Reduction: 3D DNR

Picture Control: Mirror / Flip (0° / 90° / 180° / 270°) (Support 90°/270° at 4.0MP Resolution and Lower)

IVS: Yes

Intelligent Functions: Motion Detection (4 Zones), Region of Interest (4 Zones), Privacy Masking (4 Zones), Heat Map

Ethernet: RJ-45 (100/1000 Base-T)

Protocol: IPv4 / IPv6 / HTTP / TCP / UDP / ARP / RTP / RTSP / RTCP / RTMP / SMTP / FTP / SFTP / DHCP / DNS / DDNS / QoS / UPnP / NTP / Multicast / ICMP / IGMP / NFS / SAMBA / PPPoE / SNMP / P2P

Streaming Method: N/A

Max. User Access: 20 (Total Bandwidth: 80Mbps)

RTMP Support: Yes

Video Interface: N/A

Audio Interface: 1 Input / 1 Output (RCA) / Compression: G.711a / G.711Mu / G726 / AAC

Alarm Interface: 1 Input (Wet Contact, 5mA 3–5VDC) / 1 Output (Dry Contact, 1000mA 30VDC, 500mA 50VAC)

RS485: 1 Port (1200–115,200bps Baud Rate)

Edge Storage: MicroSD Card (Up to 512GB) / NAS / Local PC / FTP / SFTP

Interoperability: ONVIF (Profile S / Profile G / Profile T) / CGI / Milestone / Genetec

Power Supply: 12VDC / PoE

Power Consumption: Basic: 3.96W (12VDC) / 4.95W (PoE), Maximum (H.265 + Intelligence On + WDR + IR On + Auto Focus): 9.2W (12VDC) / 11.5W (PoE)

Operating Conditions: -30°C to +60°C / Less Than 95% RH

Ingress Protection: IP68

Weather Resistance: Yes

Vandal Resistance: N/A

Series: Explosion Protected Series

Camera Type: Bullet

Housing: Stainless Steel (SUS304, SUS316L Optional)

Pan/Tilt/Rotation: N/A

Tri-Axis Mounting: N/A

ePoE: No

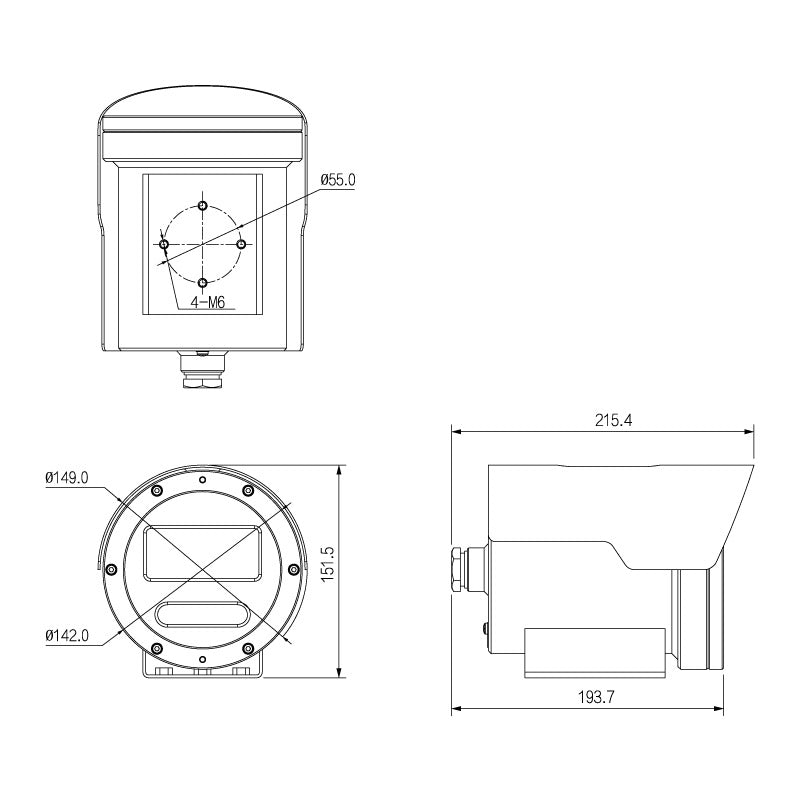

Dimensions: 215 × 149 × 151 mm

Net Weight: 5 kg (Net)

Certifications: CE-LVD: EN62368-1 / CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU / ATEX: II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80°C Db / IECEx: Ex db IIC T6 Gb, Ex tb IIIC T80°C Db

Warranty: 4 Years

Shipping Width: 173 mm

Shipping Height: 121 mm

Shipping Depth: 300 mm

Shipping Weight: 3.35 k
