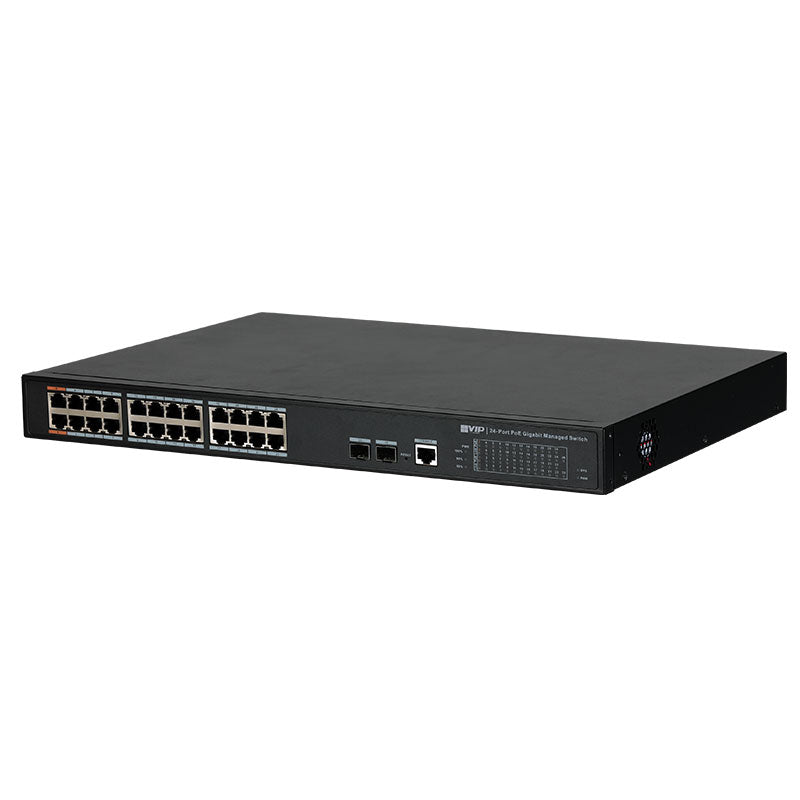

VIP Vision 24-port Managed Gigabit Hi-PoE Ethernet Switch

VSPOE-SWC24

Regular price $850.85

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

The VSPOE-SWC24 is a fast rackmount ethernet switch, suitable for high-powered PoE devices. The series offers web management and L2 management for network traffic quality of service, VLAN and a suite of other features.

Product features:
• 22 x PoE+ 1000Mbps device ports
• 2 x Hi-PoE 1000Mbps device ports
• 2 x 1000Mbps Base-X (SFP) uplink combo ports
• PoE, PoE+ and Hi-PoE support for up to 60W per port
• Total PoE power load up to 360W
• L2 management, manage via web browser
• Rackmount tabs for 19” cabinet installation
• Professional appearance full metal enclosure
• Lightning overvoltage protection up to 2kV


Ports: 24 Ports

Speed: Gigabit 10/100/1000

Management: N/A

Device Ports: Ports 1–24: 16 × 10/100/1000M Base-T (PoE)

Uplink Ports: Ports 25–26: 2 × 1000M Base-X (Uplink)

Switching Capacity: 52Gbps

Packet Forwarding Rate: 38.68Mbps

Exchange Mode: Store & Forward

PoE: Yes

PoE Protocol: IEEE 802.3af / IEEE 802.3at / Hi-PoE

Switch Power Load: Ports 1–2: ≤60W / Ports 3–24: ≤30W

Switch Management: L2 Management

MAC Address Capacity: 8K

Virtual LAN: 802.1Q Standard VLAN

Network Time Protocol: Support

Spanning Tree Protocol: STP / RSTP / MSTP

Port Aggregation: Manual Aggregation / LACP Protocol

Port Mirroring: Many-to-One Port Mirroring

LLDP: Support

DHCP: DHCP Client / DHCP Server / DHCP Snooping

Extend Mode: N/A

Flow Control: Half-Duplex Based on Back Pressure Type Control / Full Duplex Based on PAUSE Frame

Security Features: Users Management / SSH / HTTPS / SNMP V1/V2/V3 / ROMN / ACL / IP Source Guard / ARP Inspection / 802.1x / Loop Protection

System Maintenance: Configuration File Upload/Download / Supports Updated Packet Upload / System Log

Quality of Service: Support QoS Based on CoS/DPL/PCP/DEI / Each Port Supports 8 Output Queues / Supports Port Shaping / Supports Port Tag Remarking / Supports QoS Based on DSCP

Network Management: Web (HTTP Protocol) / Serial / SNMP

PoE Management: N/A

Input Power: 100–240VAC

Lightning Protection: Common Mode: 2kV / Differential Mode: 1kV

Mounting Options: Rackmount Tabs

Operating Environment: -10°C to +55°C / RH 90% (Max.)

Weight: 3.51 kg

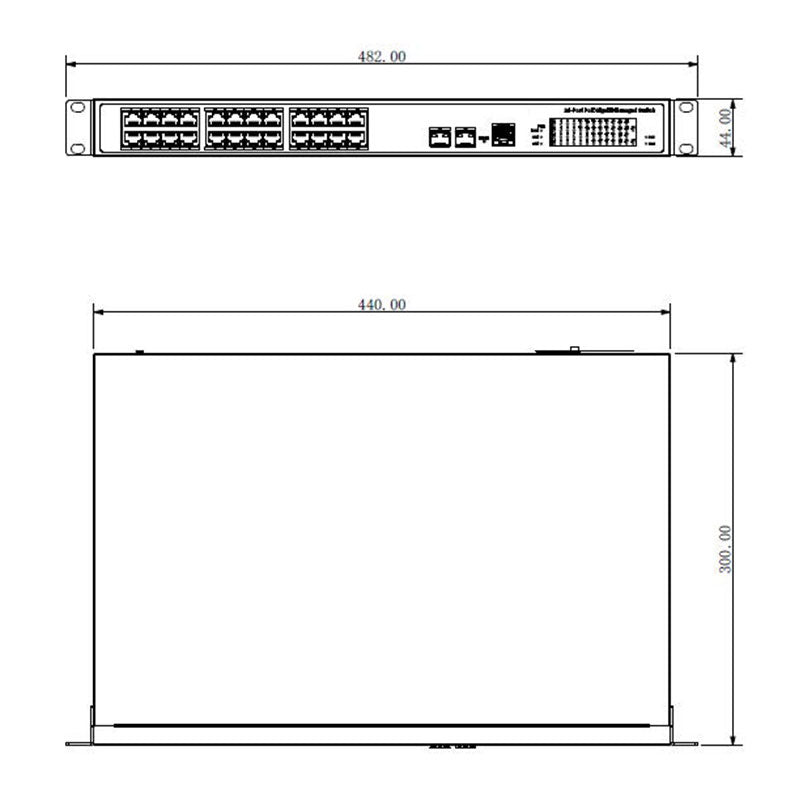

Dimensions: 440 × 300 × 44 mm

Category: Network & Communication

Warranty: 4 Years

Shipping Width: 120 mm

Shipping Height: 530 mm

Shipping Depth: 420 mm

Shipping Weight: 5.00 kg
