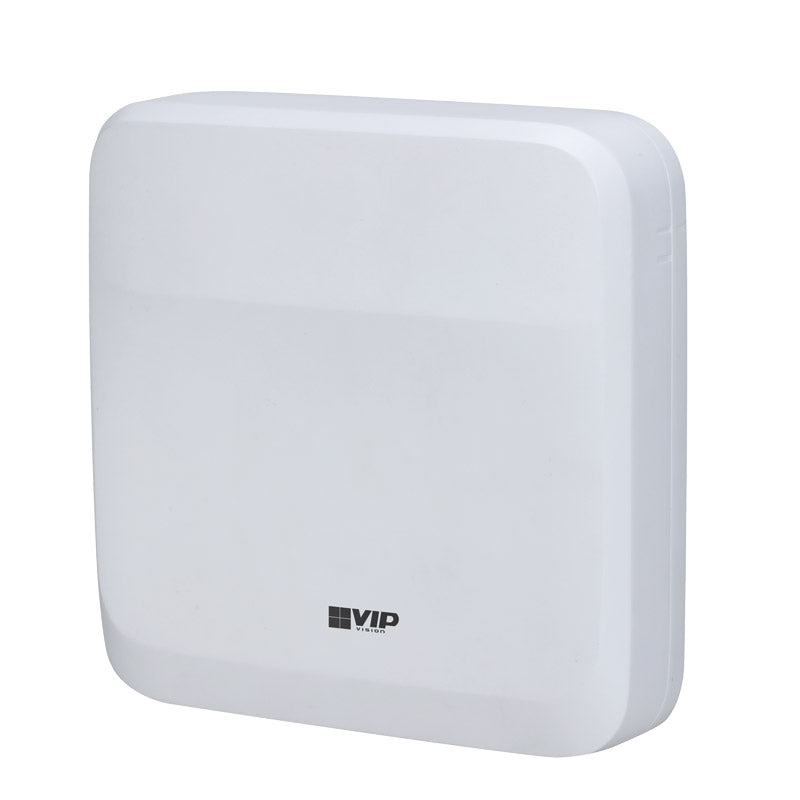

VIP Vision 2-Door Web Access Controller Module

AC-WCM

Regular price $369.00

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

The AC-W Series comprises powerful and flexible access control systems designed to deliver secure and scalable access management for commercial applications.

The AC-WCM web control module acts as central command for your access control system, managed simply via your network within your web browser. Cascade web control modules to grow your system to manage up to 40 doors, perfect for securing small to medium enterprises. To scale further, combine multiple systems via Access Management Platform software, built for large enterprise deployments.

• Built-in web server for master and sub configuration
• Power via PoE and output 12VDC 1A to door locks
• Access features incl. first-person unlock, global anti-passback and more
• Combine up to 20 modules to control up to 40 doors
• Web control module supports up to 1000 users
• Manage users, roles, keys, codes via web browser
• Accesses readers via Wiegand & RS-485 protocols


System: Access Control System

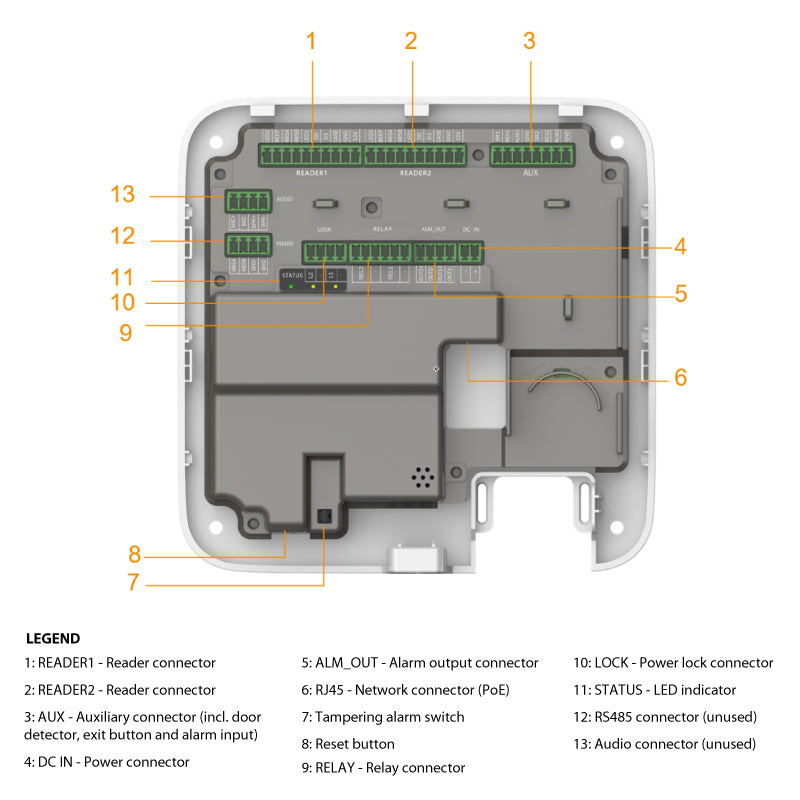

Input Ports: 2 × Door Status, 2 × Lock Control, 2 × Exit Button, 2 × Alarm Input/Output, 1 × RJ-45, 2 × Wiegand, 3 × RS-485

Output Ports: 2 × Door Lock, 2 × Alarm Output

Main Processor: Embedded Processor

Memory: Embedded

Reader Ports: 2

Card Memory: 5,000 (Main Controller), 50,000 (Sub Controller)

Event Memory: Up to 300,000 Events

Access Control: First-Person Unlock, Multi-Person Unlock, Multi-Door Interlock, Global Anti-Passback, Global External Alarm, Blocklist/Allowlist, Real-Time Monitoring, Multi-Factor Authentication, Web Configuration, Network Software Updates, Multi-User Authentication

User Management: General, VIP, Guest, Patrol, Blocklist, Other

Alarm Function: Door Sensor Timeout, Tamper Alarm, Duress Alarm via Card or Fingerprint, Intrusion Alarm, Illegal Card

Period: Up to 128 General Purpose Periods and 128 Holiday Periods

Ethernet: RJ-45 (10/100Base-T)

Reader Interface: RS-485 / Wiegand 34

RTC: Configurable via Web Interface

Battery Backup: Supported via AC-WSB

Battery Up-time: 6–12 Hours (System Dependent)

Power Supply: 12V DC / PoE (802.3at)

Operating Conditions: -10°C to +55°C / Less than 95% RH / Indoor Use Only

Housing: Plastic (PC and ABS)

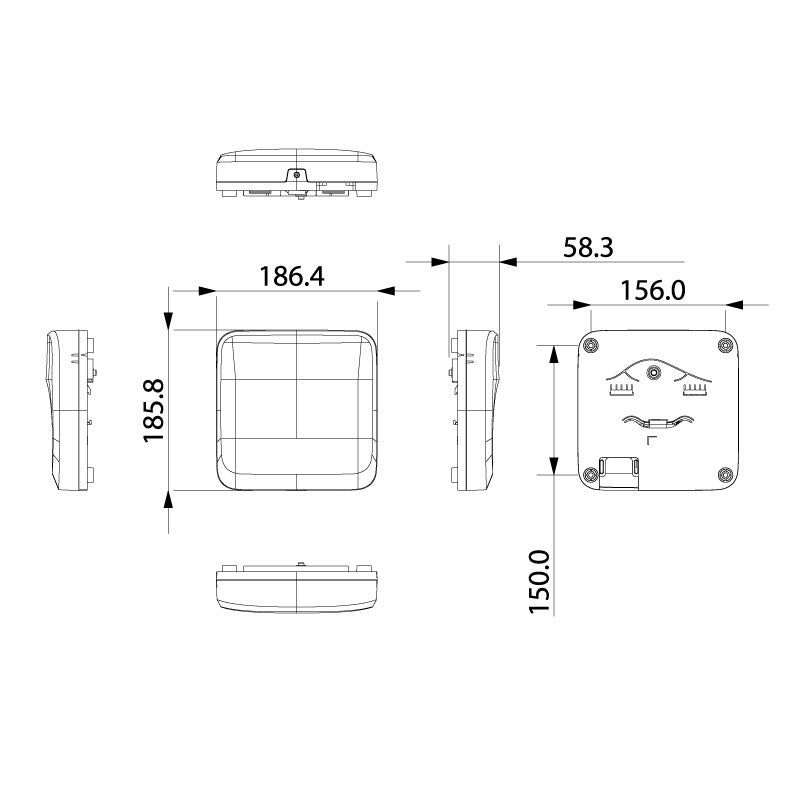

Dimensions: 186 × 186 × 58 mm

Net Weight: 0.99 kg

Warranty: 4 Years

Shipping Width: 250 mm

Shipping Height: 250 mm

Shipping Depth: 90 mm

Shipping Weight: 0.99 kg
