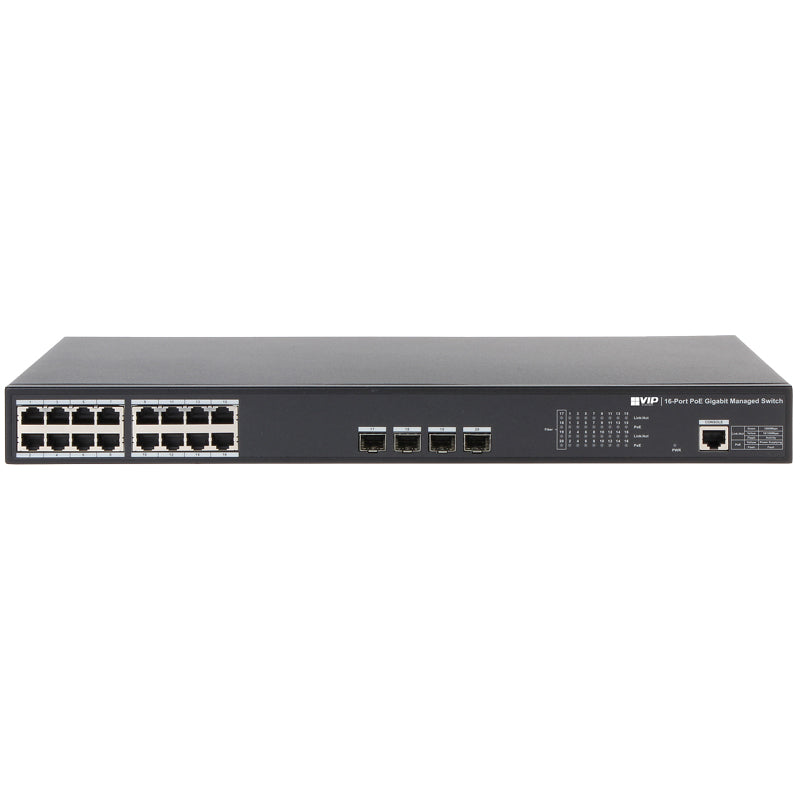

VIP Vision 16-port Managed Gigabit Hi-PoE Network Switch

VSPOE-SWB16G

Regular price $1,079.00

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

The VSPOE-SWB16G is a 16-port managed Gigabit PoE network switch. Each port on this L2 managed switch is 10/100/1000 Base-T, allowing for ultra fast 1000Mbps downlink speeds for the most demanding of network applications, including fibre-optics.

Product features:
• 16 x 10/100/1000 PoE+ Base-T ports
• 4 x 1000 Base-X ports for optical fibre integration
• Supports IEEE802.3af and IEEE802.3at protocols
• Transmit power and data up to 250m
• 56Gbps switching capacity
• 29.76Mpps packet forwarding rate
• PoE management with PoE Settings and Event Statistics
• Support web management
• Sturdy full metal casing

Ports: 16 Ports

Speed: Gigabit 10/100/1000

Management: N/A

Device Ports: 16 × 10/100/1000 Base-T (PoE Power Supply Ports)

Uplink Ports: 4 × 1000 Base-X

Switching Capacity: 56Gbps

Packet Forwarding Rate: 29.76Mpps

Exchange Mode: Store & Forward

PoE: Yes

PoE Protocol: PoE (IEEE 802.3af) / PoE+ (IEEE 802.3at)

Switch Power Load: Each Port: ≤30W / Total: ≤250W

Switch Management: Managed

MAC Address Capacity: 8K

Virtual LAN: 802.1Q Standard VLAN

Network Time Protocol: N/A

Spanning Tree Protocol: N/A

Port Aggregation: Manual Aggregation

Port Mirroring: Many-to-One Port Mirroring

LLDP: N/A

DHCP: N/A

Extend Mode: N/A

Flow Control: Half-Duplex Based on Back Pressure Type Control / Full Duplex Based on PAUSE Frame

Security Features: IP+MAC Binding Based on Port / IP Source Address Protection / ARP Detection

System Maintenance: Configuration File Upload/Download / Supports Updated Packet Upload / System Log

Quality of Service: Diff-Serv QoS / 4 Output Queues per Port / 802.1p/DSCP Priority Mapping

Network Management: WEB (HTTP Protocol)

PoE Management: N/A

Input Power: 100–240VAC

Lightning Protection: Common Mode: 2kV / Differential Mode: 0.5kV

Mounting Options: Rackmount Tabs (1RU)

Operating Environment: -10°C to +55°C / RH 90% (Max.)

Weight: 3.75 kg

Dimensions: 440 × 260 × 44 mm

Category: Network & Communication

Warranty: 4 Years

Shipping Width: 95 mm

Shipping Height: 510 mm

Shipping Depth: 385 mm

Shipping Weight: 5.05 kg
