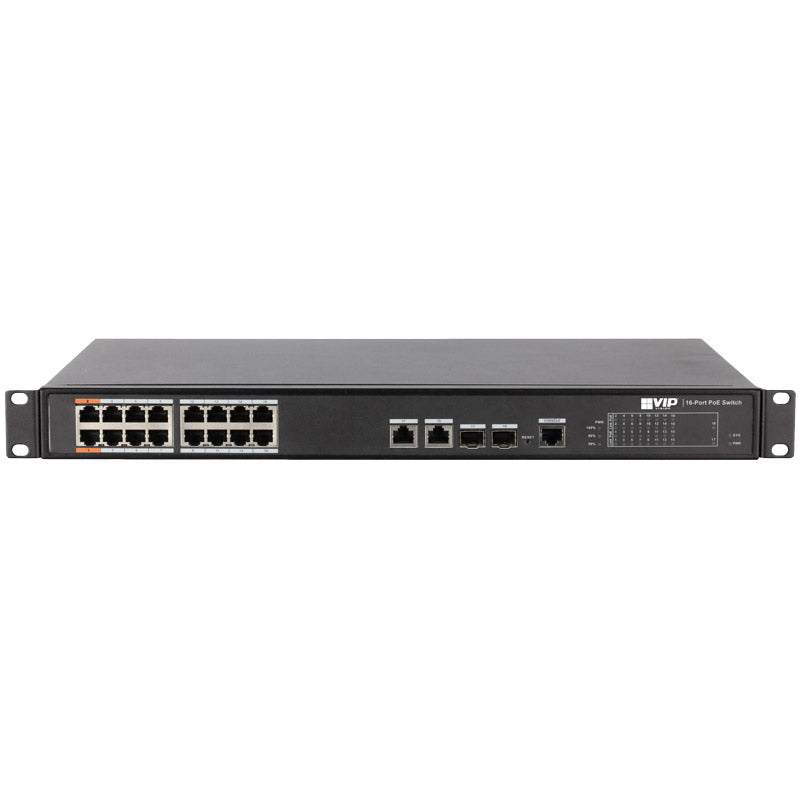

VIP Vision 16-port Managed Fast Hi-PoE Ethernet Switch

Ports: 16 Ports

Speed: Fast 10/100

Management: L2 Managed

Device Ports: 16 × 10/100 Base-T (PoE Power Supply Ports)

Uplink Ports: 2 × 1000 Base-X / 2 × 10/100/1000 Base-T

Switching Capacity: 8.8Gbps

Packet Forwarding Rate: 5.36Mbps

Exchange Mode: Store & Forward

PoE: Yes

PoE Protocol: PoE (IEEE 802.3af) / PoE+ (IEEE 802.3at) / Hi-PoE

Switch Power Load: Ports 1–2: ≤60W / Ports 3–16: ≤30W / Total: ≤240W

Switch Management: Managed

MAC Address Capacity: 4K

Virtual LAN: 802.1Q Standard VLAN

Network Time Protocol: N/A

Spanning Tree Protocol: STP / RSTP

Port Aggregation: Static Link Aggregation / LACP Protocol

Port Mirroring: Many-to-One Port Mirroring

LLDP: N/A

DHCP: DHCP Client

Extend Mode: Up to 250 m Range at 10Mbps (Port Configurable via Management Interface)

Flow Control: Half-Duplex Based on Back Pressure Type Control / Full Duplex Based on PAUSE Frame

Security Features: IP+MAC Binding Based on Port / IEEE 802.1x Port Authentication

System Maintenance: One-Key Recovery / Supports Updated Packet Upload / System Log

Quality of Service: High and Low Priority / WRR / 802.1P / DSCP / Support Priority According to Protocol

Network Management: WEB (HTTP and HTTPS Protocol) / Supports SNMP V1/V2/V3

PoE Management: PoE Setting (Real-Time Port Consumption) / PoE Event Statistics / Green PoE

Input Power: 100–240VAC

Lightning Protection: Common Mode: 4kV / Differential Mode: 2kV

Mounting Options: Rackmount Tabs (1RU)

Operating Environment: -10°C to +55°C / RH 90% (Max.)

Weight: 3.51 kg

Dimensions: 440 × 300 × 44 mm

Category: Network & Communication

Warranty: 4 Years

Shipping Width: 530 mm

Shipping Height: 120 mm

Shipping Depth: 420 mm

Shipping Weight: 4.20 kg
