Vertical Wall Mount Security Cabinet

SECCAB

Regular price $465.00

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

The SECCAB is a compact, vertical, wall-mount security cabinet that is great for delivering professional results in security installations. The SECCAB offers secure storage of CCTV surveillance, alarm & access control systems in difficult areas with limited space, such as behind refrigerators, in cupboards or wardrobes.

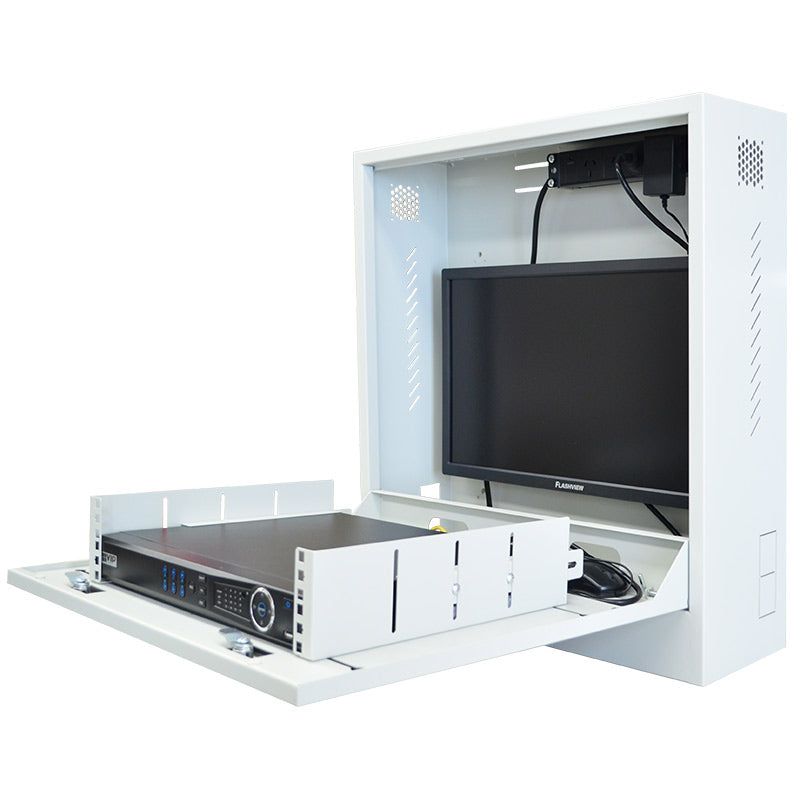

The SECCAB vertical rackmount shelf has a capacity of up to 2U height, up to 480mm width & 465mm depth, with extra space to mount up to a 24'' LCD monitor. It can house 1 HDD, 2HDD and 4HDD bay NVRs and DVRs from VIP Vision, Watchguard, Securview. It can also accommodate a WGAP864 alarm system and professional VIP Vision access control system in a single cabinet.

Product features:

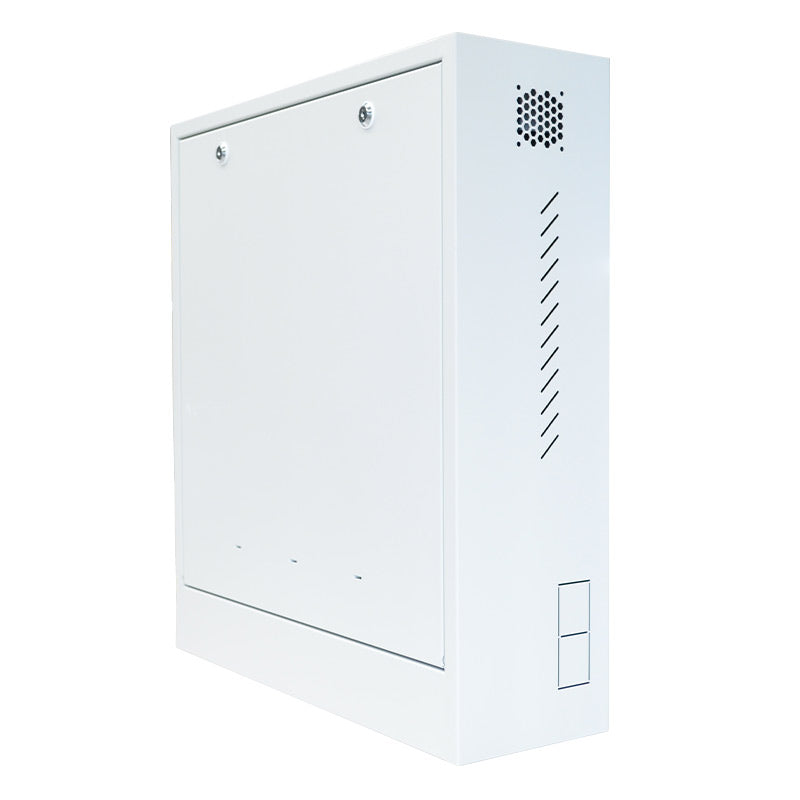

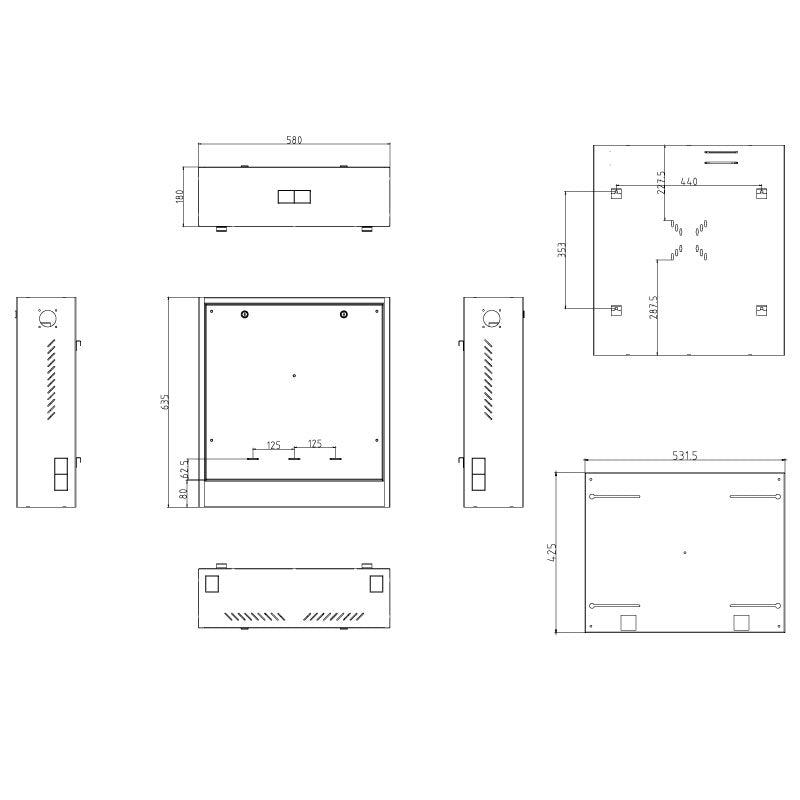

• Compact; only 580(W) x 635(H)x 180(D)mm (closed)
• Capacity: 2RU, 240~480mm width, 465mm depth
• Cable management knockouts from all cabinet sides
• Superior ventilation; optional 2 x 50mm cooling fans

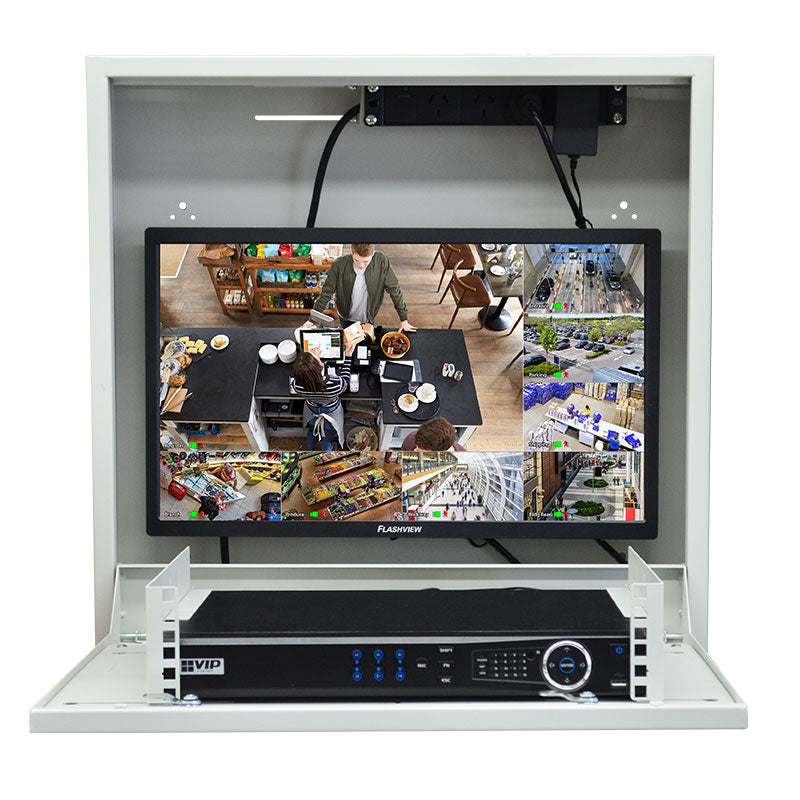

• Fit up to 24” monitor, with 50/75/100 VESA mounts

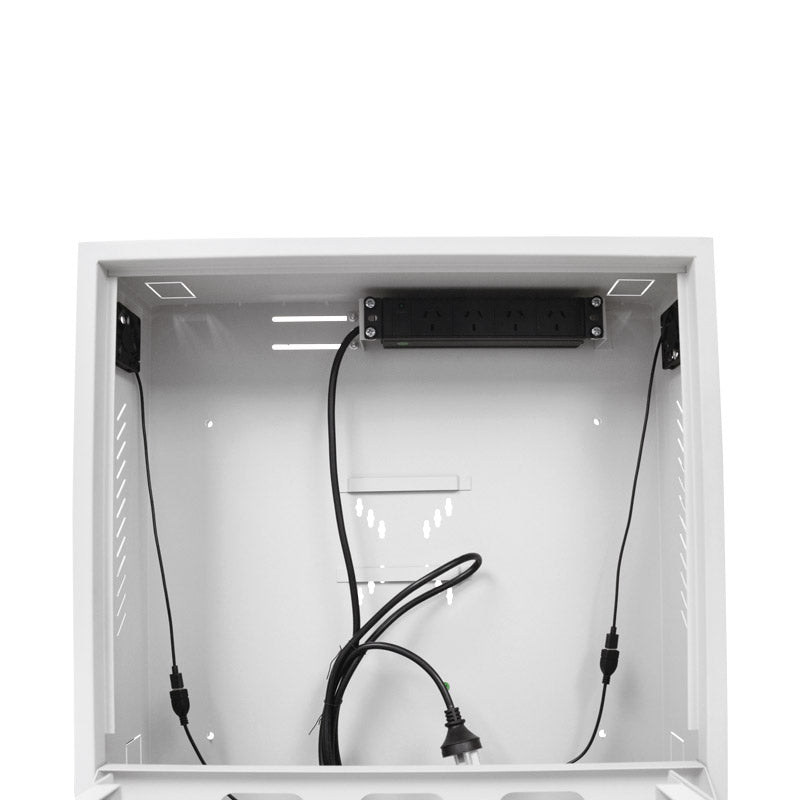

• Integrated 4 x outlet powerboard & 2 x cabinet locks

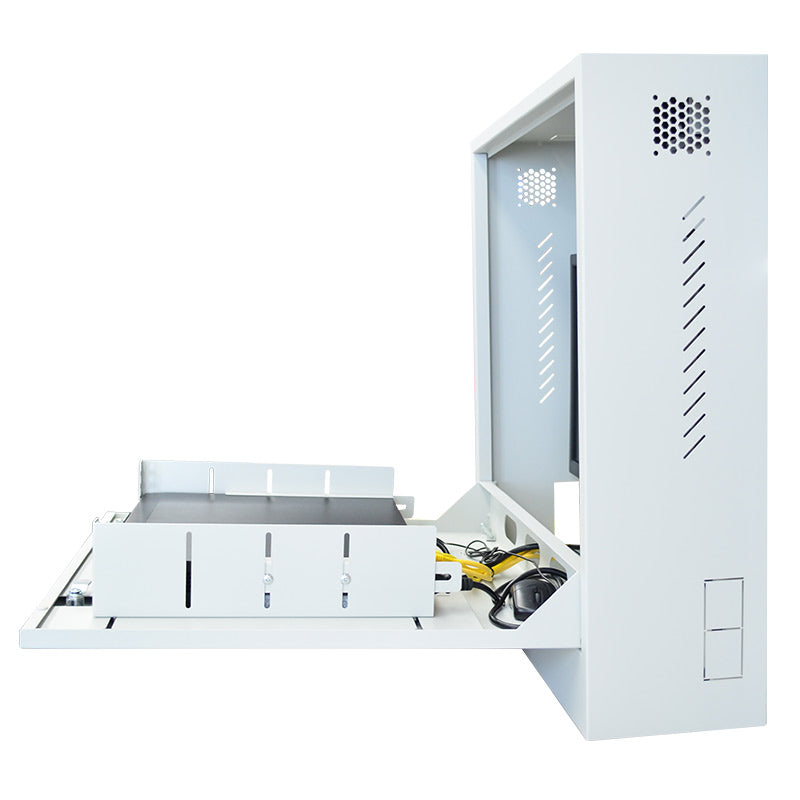

• 30kg cabinet load bearing capacity (10kg vertical shelf)
• 440mm width between mount points to fit wall studs
• SPCC steel construction and white powder coating

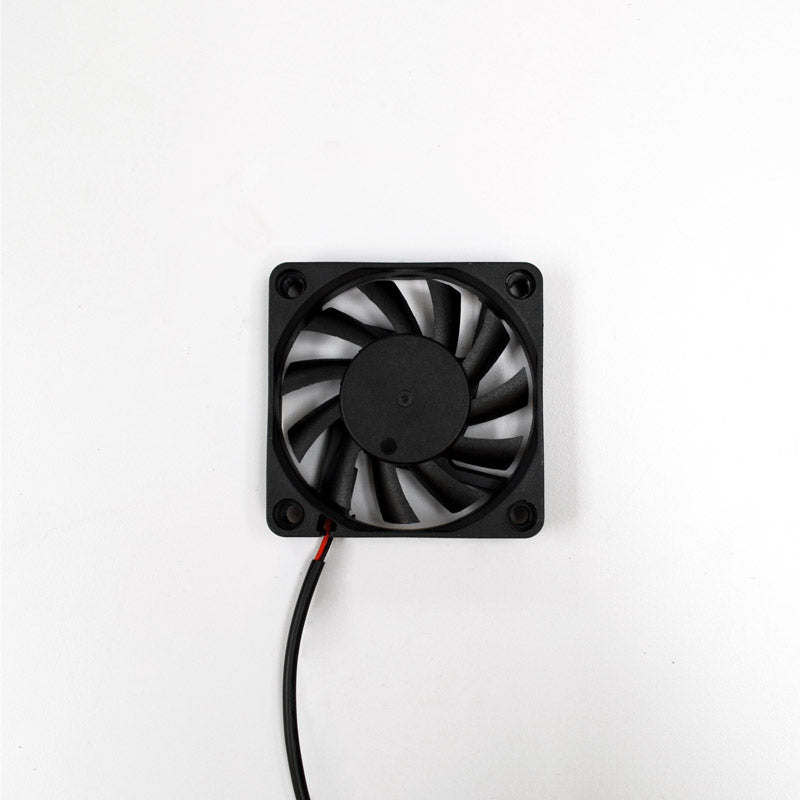

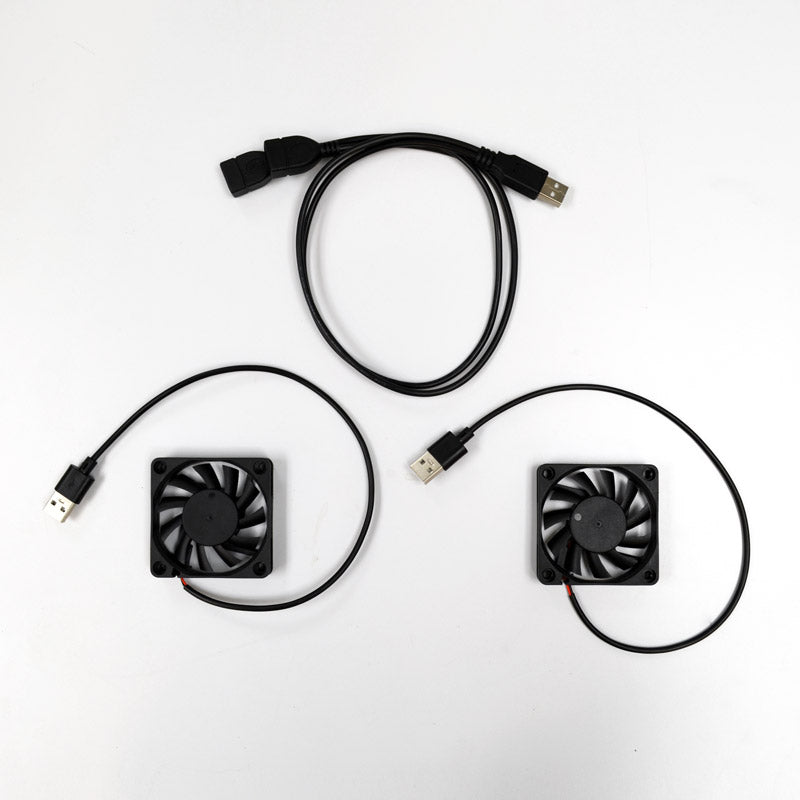

• USB Fans included

* Ensure monitor has vertical / downwards-facing input ports & power connectors
* Included standoffs and screws for attachment of alarm panels and other security systems to the SECCAB
* 4 x nuts, washers & bolts included for monitor mounting

*NOTE: We are recommending only using monitors listed below under Suggested Products; other monitors may not fit.

Max. Capacity (H): 2RU (~90 mm)

Max. Capacity (W): Adjustable 240–480 mm Rackmount Slides

Max. Capacity (D): 465 mm

Max. Monitor Size: 24" (16:9 Widescreen)

VESA Mount: 50 / 75 / 100

Ventilation: 2 × 50 mm Fan Slots (Optional)

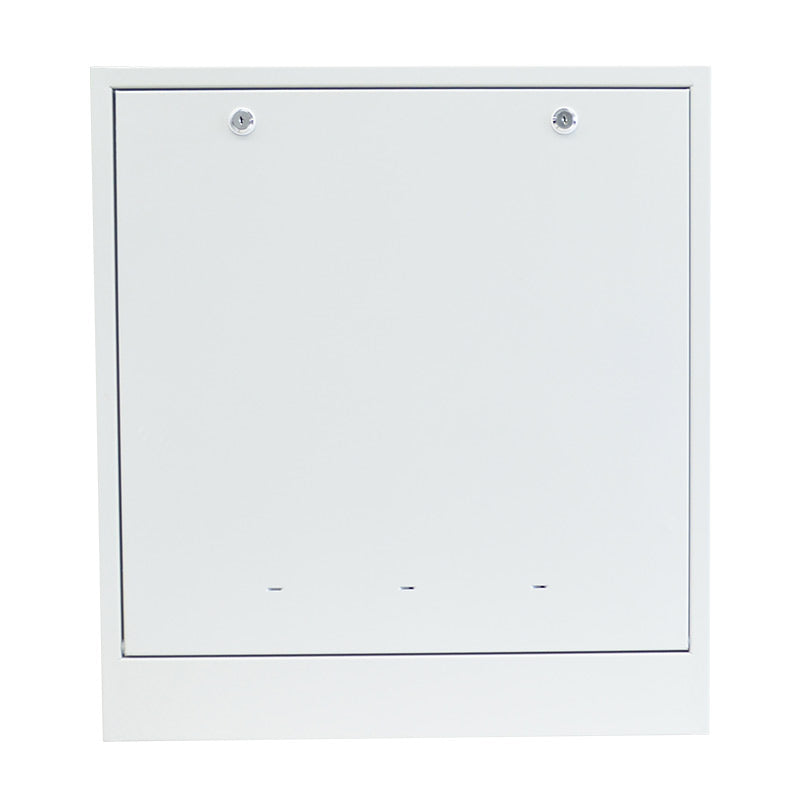

Cabinet Lock: 2 × Locks on Front Door

Cable Management: 2 per Side, 8 Total (40 × 50 mm Each)

Power: 4 × Outlet Powerboard

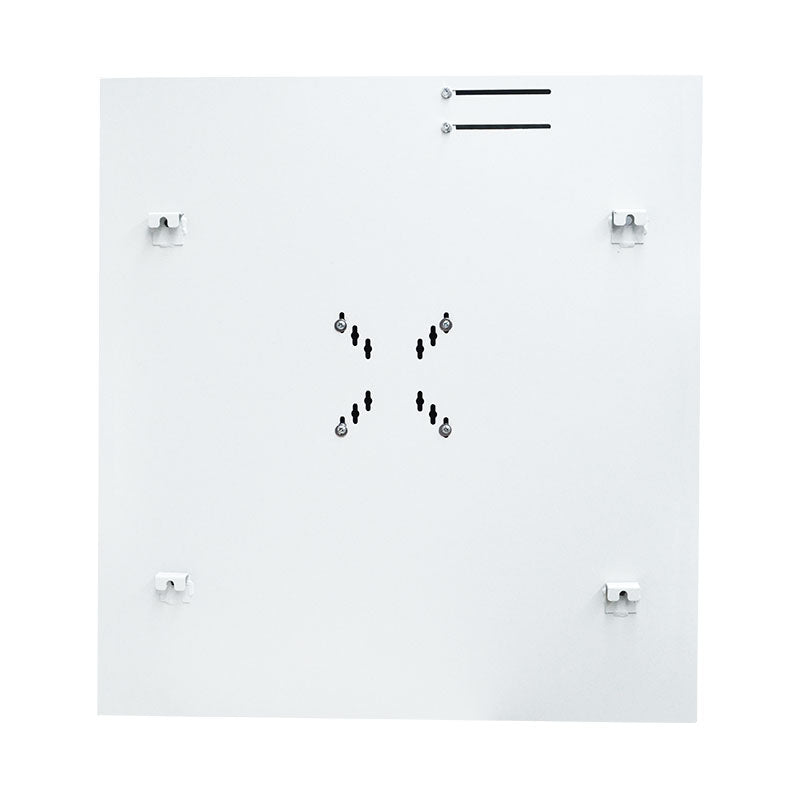

Wall Mount: 4 × Mounting Points with Hooks

Wall Mount Dimensions (W × H): 440 × 353 mm

Load Capacity: Wall Mount: 30 kg / Hinged Shelf: 10 kg

Materials: SPCC Quality Cold Rolled Steel, Powder Coated

Weight: 17.0 kg

Dimensions (W × H × D): Closed: 580 × 635 × 180 mm / Open: 580 × 635 × 712 mm

Cabinet Depth: 465 mm

Fixed Shelves: No

Mounting Options: Wall Mount

Power Board: Yes

Rack Units (RU): 2

Wheels: No

Warranty: 1 Year

Shipping Width: 660 mm

Shipping Height: 610 mm

Shipping Depth: 220 mm

Shipping Weight: 16.00 kg
