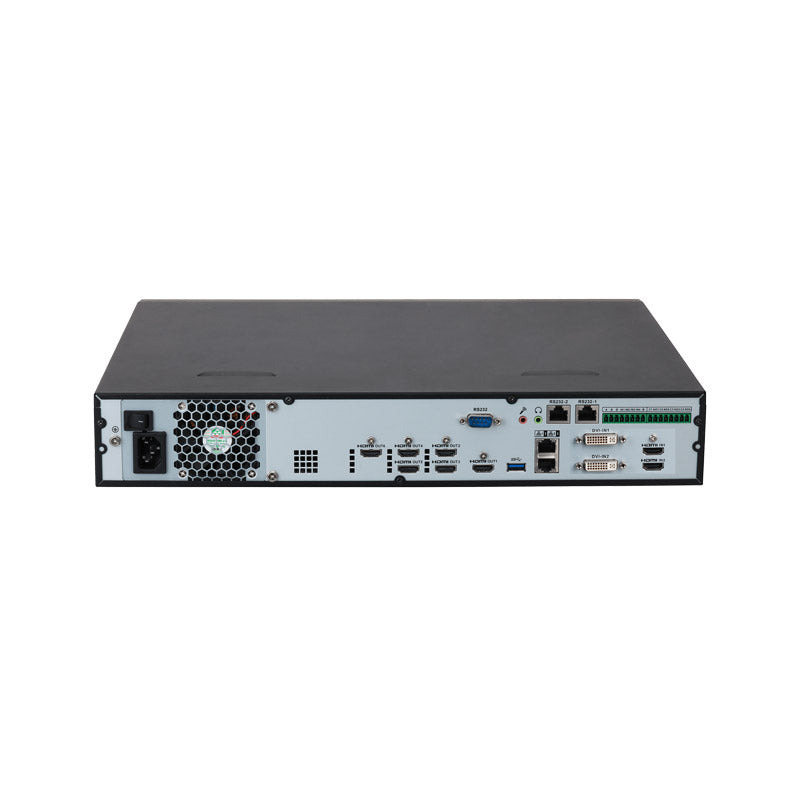

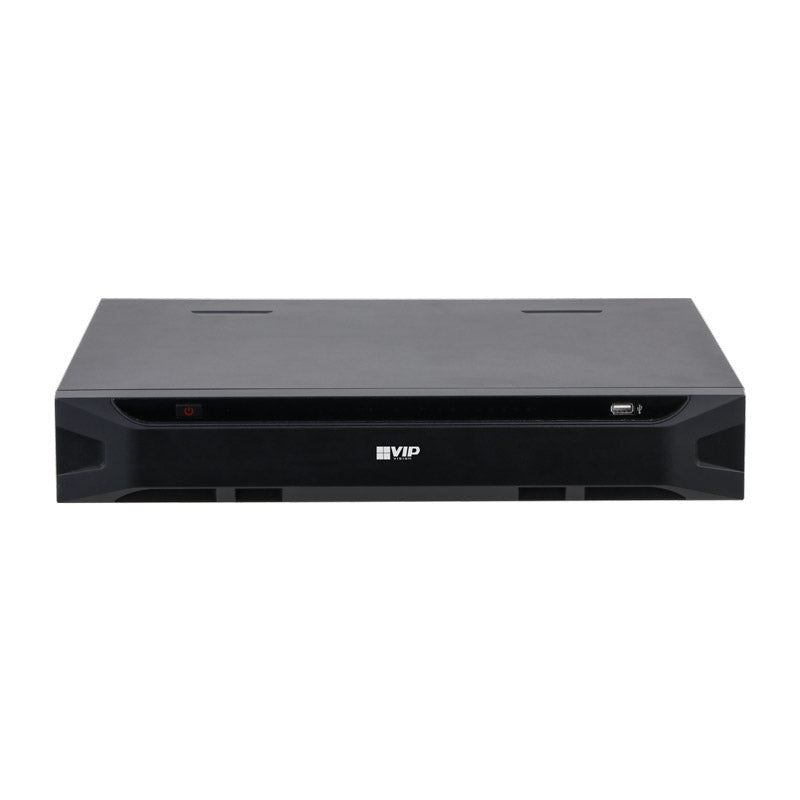

Ultra HD Network Video Decoder (6 x HDMI Out)

NVD-A6

Regular price $3,795.00

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

The NVD-A6 is an IP video decoder that allows for configuration of up to 6 HDMI displays, creating video walls that display live footage from any camera or recorder connected to the network, plus any connected HDMI video inputs. Each decoder can be fully configured and adjusted over the network or with SmartPSS.

Product features:
• Roaming decoder displays all video feeds on network
• Video wall splicing for up to 36 displays per monitor
• Split screen control with zoom/merge/roam/overlay
• Switch between standard & high definition streams
• Decode up to 8CH 4K, 32CH 1080p or 72CH 720p
• Support for audio, alarm, bi-directional talk, RS232, RS485
• Fisheye dewarp & multi-video split display
• Manage via web browser or VIP Vision™ SmartPSS

Processor: Internal Processor

Operating System: Embedded Linux

Video Format: H.264 / H.265 / SVAC / MJPEG / MPEG2 / MPEG4

Audio Format: PCM / G.711 / AAC

Video Decoding Capacity (Separate): Port 1, 2 & 3: 1CH @ 32MP (25fps) / 3CH @ 12MP (15fps) / 4CH @ 8MP / 16CH @ 1080p / 36CH @ 720p / 64CH @ D1; Port 4, 5 & 6: 1CH @ 32MP (25fps) / 3CH @ 12MP (15fps) / 4CH @ 8MP / 16CH @ 1080p / 36CH @ 720p / 64CH @ D1

Video Decoding Capacity (Total): 2CH @ 32MP (25fps) / 6CH @ 12MP (15fps) / 8CH @ 8MP / 32CH @ 1080p / 72CH @ 720p / 128CH @ D1

Decoding Resolution: 32MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / 960H / D1 / HD1 / 2CIF / CIF / QCIF

Video Frame Rate: PAL: 1–25fps / NTSC: 1–30fps

Video Input: 2 × HDMI, 2 × DVI-I

Video Output: 6 × HDMI

Collection Resolution: 3840 × 2160 / 1920 × 1080 / 1600 × 1200 / 1680 × 1050 and Lower

Display Resolution: 3840 × 2160 / 2048 × 1152 / 1920 × 1200 / 1920 × 1080 / 1280 × 1024 / 1280 × 720 / 1024 × 768 (4 Ports Support 3840 × 2160, Remaining 2 Ports Support 2560 × 1600)

Display Split: 1 / 4 / 6 / 8 / 9 / 16 / 25 / 36

Bi-Directional Talk: 1 Pair 3.5 mm Jack (2.0V Line In / 50mV Mic In / 10KΩ, 2.0V / 16Ω Out)

Alarm Input: 4CH

Alarm Output: 4CH Relay Out (30VDC 1A, 125VAC 0.5A)

Communication Interface: 2 × RJ45 Network Ports (10M/100M/1000M); 3 × RS232 (1 × DB9, 2 × RJ45); 1 × RS485

Power Supply: 100–240VAC, 50–60Hz

Power Consumption: ≤70W

Operating Temperature: -10°C to +55°C / 10%–95% RH (86–106kPa)

Dimensions: 440 × 408 × 70 mm (1.5U)

Weight: 4.83 kg

Warranty: 4 Years

Shipping Width: 510 mm

Shipping Height: 220 mm

Shipping Depth: 530 mm

Shipping Weight: 7.00 kg
