Surface Mount Magnetic Lock - Door & Lock Monitored with Timer

MAGLOC100S-DST

Regular price $207.35

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

The Watchguard™ MAGLOC Series comprises affordable access solutions, with a wide range of electromagnetic locks and accessories to safely and securely control access in your home or business.

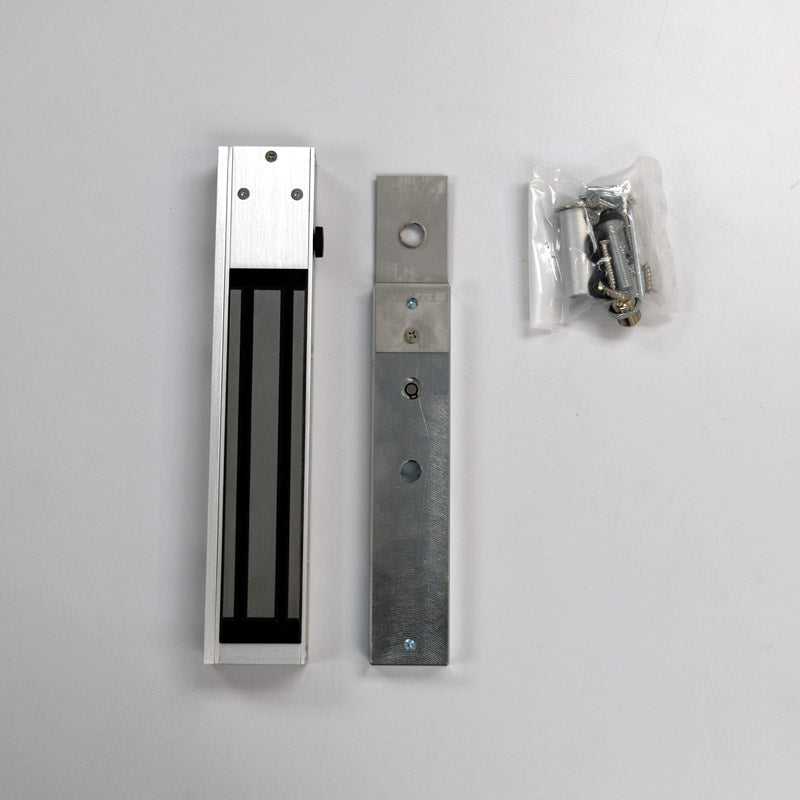

The MAGLOC100S-DST is a surface mounted electromagnetic door lock, designed for indoor use. It is the optimal choice for alarm integration with lock/door status sensors and a configurable timer (1~90s). This model includes the electromagnetic lock, armature plate and mounting component kit.

Product features:
• Surface mount design
• 270kg approximate holding force
• Anodised aluminium face plate with zinc finish
• Lock and door status sensors
• Configurable delay timer 1~90s
• 12V/24VDC selectable power input
• Overvoltage/voltage spike protection

Type: Surface Mount

Holding Force: 270 kg

Door Status Sensor: Yes

Lock Status Sensor: Yes

Timer: Yes (1–90s)

Lock Configuration: Fail Safe

Weather Rating: Indoor Only

Construction: Anodised Aluminium with Zinc Finish

Power Input: 12VDC / 24VDC (Selectable)

Current Draw: 500mA @ 12V / 250mA @ 24V

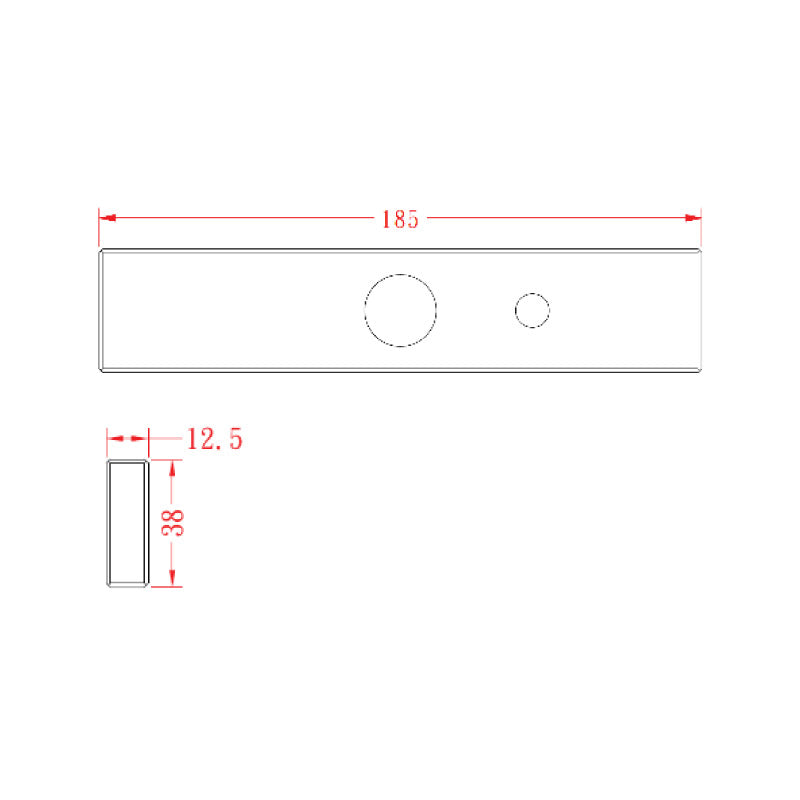

Armature Dimensions: 185 × 38 × 12.5 mm

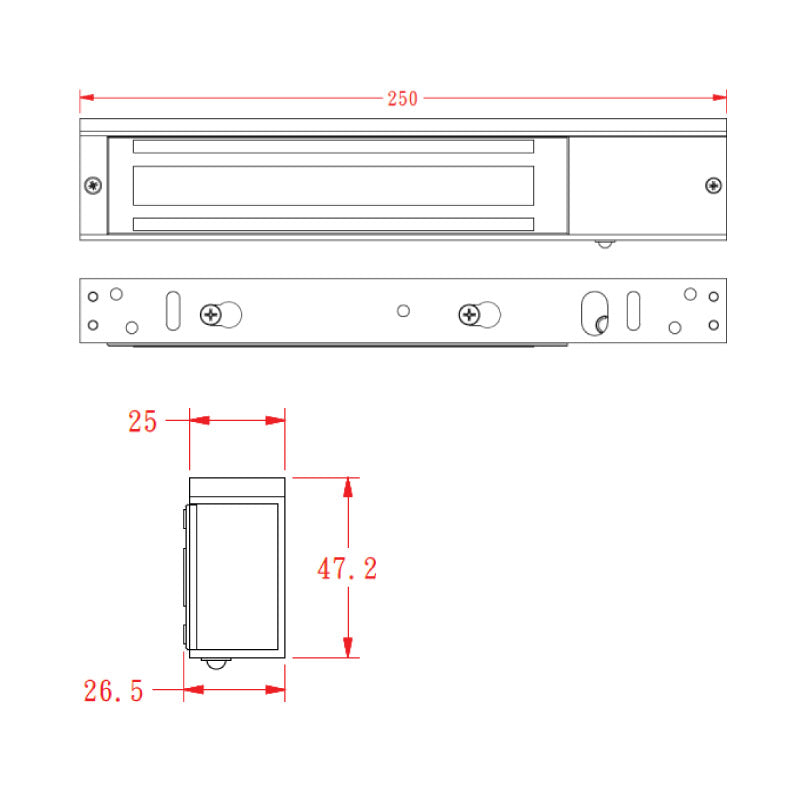

Lock Dimensions: 250 × 47.2 × 26.5 mm

Warranty: 1 Year

Shipping Width: 85 mm

Shipping Height: 190 mm

Shipping Depth: 145 mm

Shipping Weight: 2.20 kg
