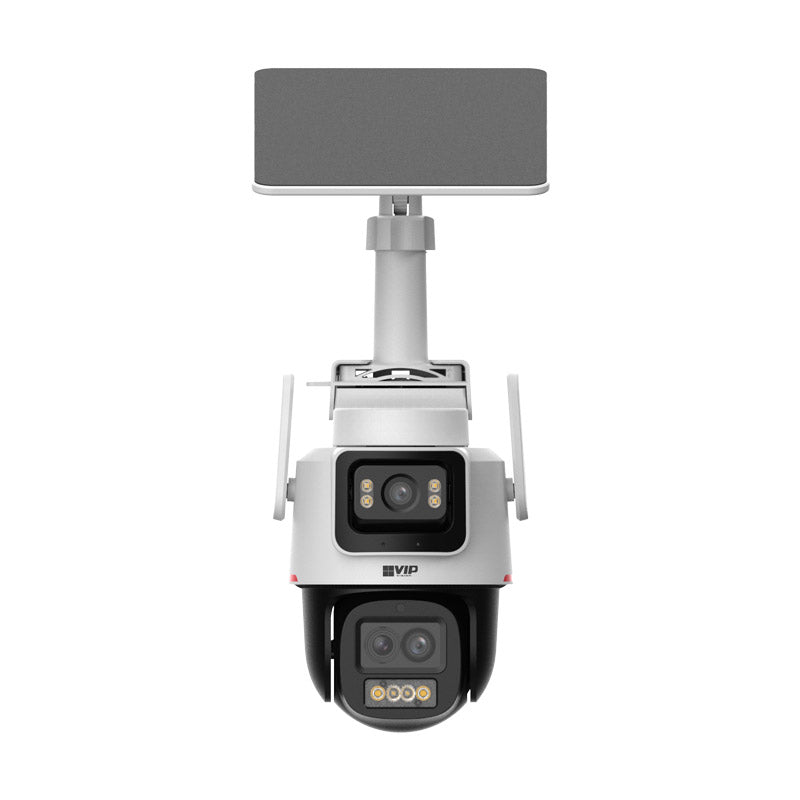

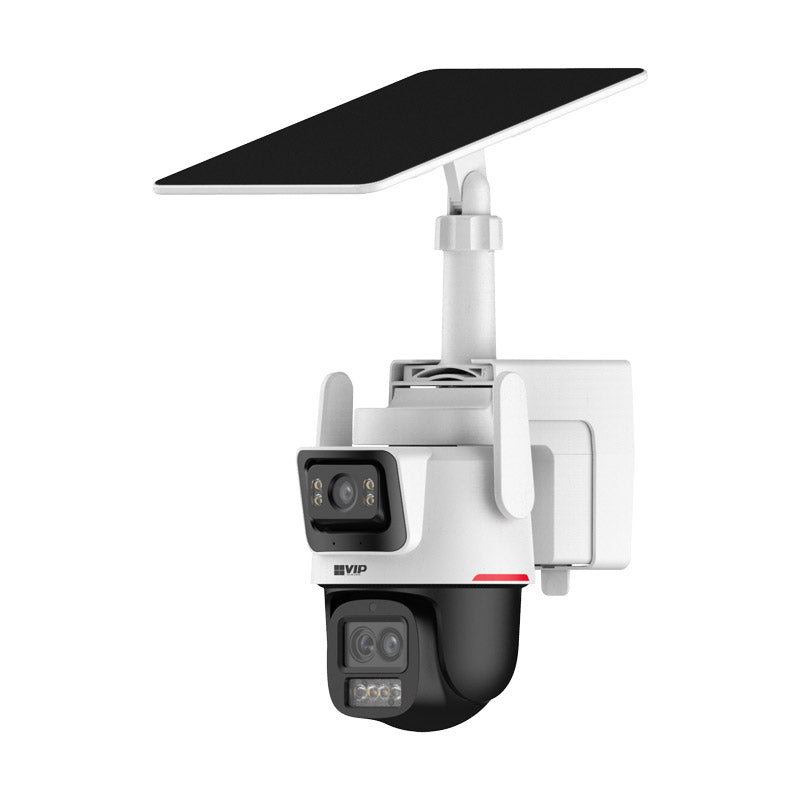

Specialist AI Series Solar 4G Multi-Vision PTZ with 6x Hybrid Zoom

Image Sensor: Overview: 1/2.8" CMOS / PTZ: 1/2.8" CMOS

Max. Resolution: 3.0 Megapixel

Effective Pixels: Overview: 2304 × 1296 / PTZ: 2304 × 1296

RAM / ROM: Overview: 256MB / 256MB / PTZ: 256MB / 256MB

Min. Illumination: 0.0005 Lux at F1.0 (Colour, 30 IRE) / 0 Lux (Illuminator On)

S/N Ratio: >56dB

Infrared System: Overview: 4 × LED Spotlights (Warm White), 30 m Range / PTZ: 4 × LED Spotlights (Warm White), 50 m Range

Lens Type: Fixed

Lens / Iris: Overview: 2.8 mm F1.0 Fixed Lens / PTZ: 3.6 mm & 8.4 mm F1.0 Fixed Lenses

Field of View: Overview: Horizontal: 94° / Vertical: 52° / Diagonal: 110° / PTZ: 3.6 mm Lens: Horizontal: 82° / Vertical: 44° / Diagonal: 96° / 8.4 mm Lens: Horizontal: 15.1° / Vertical: 8.4° / Diagonal: 17.8°

Focus: Overview: Fixed / 1.0 m Min. Focus Distance / PTZ: Auto / Semi-Auto / Manual Control, 3.6 mm: 1.7 m / 8.4 mm: 6 m Min. Focus Distance

Detect (25px/m): Overview: 40 m / PTZ: 51 m (Wide) / 1200 m (Tele)

Observe (63px/m): Overview: 16 m / PTZ: 20 m (Wide) / 47 m (Tele)

Recognise (125px/m): Overview: 8 m / PTZ: 10 m (Wide) / 24 m (Tele)

Identify (250px/m): Overview: 4 m / PTZ: 5 m (Wide) / 12 m (Tele)

Pan / Tilt Range: Pan: 0°–350° (Endless) / Tilt: 0°–90°

PTZ Speed: Preset: Pan: 40°/s / Tilt: 40°/s / Manual: Pan: 40°/s / Tilt: 40°/s

Modes / Presets: Up to 50 Presets / 8 Tours (32 Presets per Tour)

Start-up Action: Supported

Resolution: Overview: 3.0MP (2304 × 1296) to 640 × 360 / PTZ: 3.0MP (2304 × 1296) to 640 × 360

Frame Rate (Main): Overview: 3.0MP / 1080p / 720p / 640 × 360 (15fps) / PTZ: 3.0MP / 1080p / 720p / 640 × 360 (15fps)

Frame Rate (Sub): N/A

Frame Rate (Third): N/A

Video Compression: Smart H.265+

Bit Rate: H.265: 54–1280Kbps

Bit Rate Control: Variable Bit Rate (VBR)

Day/Night: Colour and B&W Day/Night

Lighting Compensation: Digital WDR

Smart Scene Adaptive (SSA): N/A

White Balance: Auto

Gain Control: Auto

Noise Reduction: 3D DNR

Picture Control: 180° Image Rotation

Face Recognition: N/A

Face Capture: N/A

Perimeter Protection: Tripwire & Intrusion (Add Recognition of Humans & Vehicles)

Auto Tracking: Supported

Metadata: Search via People or Vehicle Detection Events

People Counting: N/A

Heat Map: N/A

IVS Functions: Motion Detection

Event Triggers: Filter Motion Detection Alarms, Recognises Humans and Vehicles from Other Moving Objects

Region of Interest: N/A

Optical Defog: N/A

Digital Zoom: Supported

Privacy Masking: N/A

Image Stabilisation: N/A

Ethernet: N/A

Protocol: N/A

Streaming Method: N/A

Max. User Access: N/A

Video Interface: N/A

Audio Interface: Built-In Mic & Loudspeaker

Alarm Interface: Built-In White LED Spotlight & Deterrence Siren

RS485: N/A

Edge Storage: MicroSD Card Slot (Up to 512GB) / Includes 128GB MicroSD Card

Interoperability: N/A

Power Supply: 65Wh Lithium Battery / 8W Solar Panel / Supports USB Type-C Power Supply

Power Consumption: Super Power Saving Mode: 40mW (4G Keep-Alive) / Always-on-Video Mode: 170mW (1 Frame Every 2 Seconds, SD Card Recording, 4G Keep-Alive) / Performance Mode 1: 2.4W (4G Streaming, SD Card Recording, PTZ Static, Illuminator Off) / Performance Mode 2: 3.7W (4G Streaming, SD Card Recording, PTZ Static, Illuminator On) / Max. Power Consumption: 8.0W (4G Streaming, SD Card Recording, PTZ Moving, Illuminator On, Speaker On)

Operating Conditions: Camera & Solar Panel: -10°C to +50°C / ≤95% RH / Battery: -20°C to +60°C / ≤95% RH

Ingress Protection: IP66 / TVS 2000V Lightning Proof / Surge Protection / Voltage Transient Protection

Vandal Resistance: N/A

Series: Specialist AI Series

Camera Type: Solar

Housing: Plastic

Pan/Tilt/Rotation: Pan: 0°–360° / Tilt: 0°–78° / Rotation: 0°–360°

ePoE: No

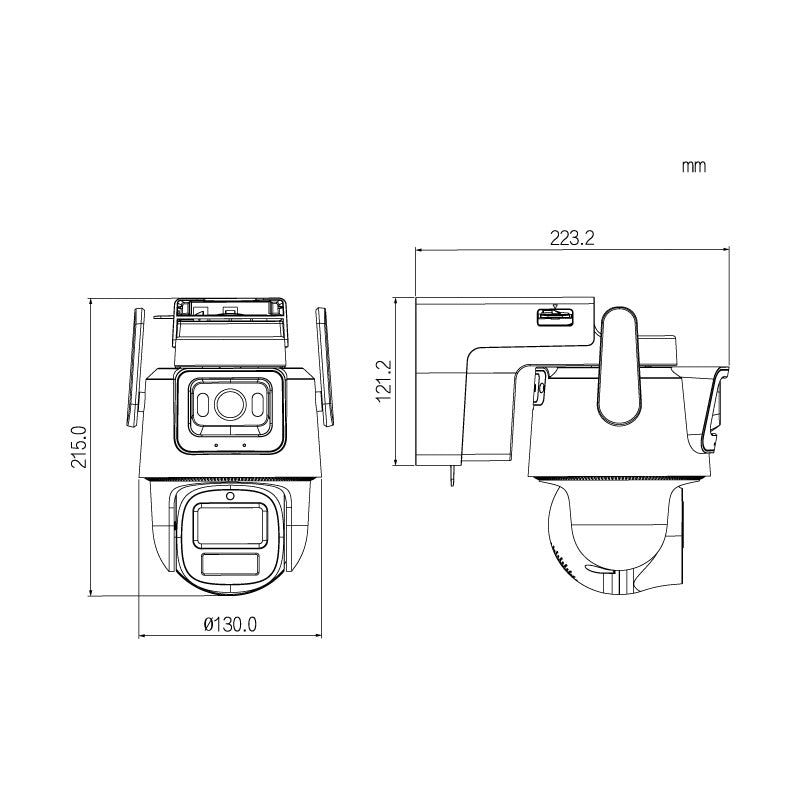

Dimensions: 223.2 × 130 × 215 mm

Net Weight: 1.8 kg

4G Carrier Frequency: B1 / B3 / B5 / B7 / B8 / B20 / B28 (FDD) / B38 / B40 / B41 (TDD)

Management Software: DMSS (Android & iOS)

Transmission Power: 4G: Power Class 3: 23dBm ±2.7dB

Warranty: 4 Years

Shipping Width: 280 mm

Shipping Height: 200 mm

Shipping Depth: 300 mm

Shipping Weight: 2.30 kg
