Specialist AI Series PTZ Positioning Camera

Image Sensor: 1/2.8" 2.0MP Progressive Scan CMOS

Max. Resolution: 2.0 Megapixel

Effective Pixels: 1920 × 1080

RAM / ROM: 1GB / 4GB

Min. Illumination: 0.005 Lux at F1.6 (Colour) / 0.0005 Lux at F1.6 (B&W) / 0 Lux (IR On)

S/N Ratio: ≥61dB

Infrared System: 4 × Infrared LEDs, 150 m Range, Zoom Priority / Manual / Off On/Off Control

Lens Type: Motorised Varifocal

Lens / Iris: 4.8–120 mm F1.6–F3.5 Motorised Lens with Auto Iris

Field of View: Horizontal: 58.5°–2.8° / Vertical: 33.2°–1.5° (25x Optical Zoom)

Focus: Auto / Semi-Auto / Manual / 0.1–1.5 m Min. Focus Distance

Detect (25px/m): 1655 m

Observe (63px/m): 654 m

Recognise (125px/m): 331 m

Identify (250px/m): 165 m

Pan / Tilt Range: Pan: 0°–360° / Tilt: -90°–90°

PTZ Speed: Preset: Pan: 160°/s / Tilt: 110°/s / Manual: Pan: 0.1°–120°/s / Tilt: 0.1°–75°/s

Modes / Presets: Up to 300 Presets / 8 Tours

Start-up Action: Auto-Restore to Previous PTZ/Lens Status

Resolution: 1080p (1920 × 1080) to CIF (352 × 288)

Frame Rate (Main): 1080p (1–25fps)

Frame Rate (Sub): D1 / CIF (1–25fps)

Frame Rate (Third): 1080p / 960p / 720p / D1 / CIF (1–25fps)

Video Compression: H.264H / H.264B / Smart H.265+ / H.264 / H.265 / Smart H.264+ / MJPEG (Sub Stream)

Bit Rate: H.264: 64–10496Kbps / H.265: 25–6400Kbps

Bit Rate Control: Constant Bit Rate (CBR) / Variable Bit Rate (VBR)

Day/Night: Auto (ICR) / Colour / B&W

Lighting Compensation: BLC / HLC / WDR (120dB)

Smart Scene Adaptive (SSA): N/A

White Balance: Auto / Indoor / Outdoor / Track / Manual / Sodium Lamp / Natural Light / Street Lamp

Gain Control: Auto / Manual

Noise Reduction: 2D / 3D

Picture Control: Flip 180°

Face Recognition: Yes

Face Capture: Yes

Perimeter Protection: Tripwire & Intrusion (Add Recognition of Humans & Vehicles) / Fast Moving Detection / Loitering Detection / Parking & Gathering Detection

Auto Tracking: Support

Metadata: Via NVR Smart Search / Search Tripwire/Intrusion Events by People or Vehicle

People Counting: N/A

Heat Map: N/A

IVS Functions: Abandoned/Missing Object / Motion Detection / Region of Interest / Electronic Image Stabilisation / Privacy Masking (24 Zones) / Defog

Event Triggers: Motion Detection / Video Tampering / Audio Detection / Scene Changing / Network Disconnection / IP Address Conflict / Illegal Access / Storage Anomaly

Region of Interest: Support

Optical Defog: Support

Digital Zoom: 16x

Privacy Masking: Up to 24 Areas / Up to 8 Areas in the Same View

Image Stabilisation: Support

Ethernet: RJ-45 (10Base-T/100Base-TX)

Protocol: IPv4 / IPv6 / HTTP / HTTPS / 802.1x / QoS / FTP / SMTP / UPnP / SNMP / DNS / DDNS / NTP / RTSP / RTP / TCP / UDP / IGMP / ICMP / DHCP / PPPoE / ARP / SNMPv1/v2c/v3 (MIB-2) / RTCP / RTMP

Streaming Method: Unicast / Multicast

Max. User Access: 20 Users

Video Interface: N/A

Audio Interface: 1 Input / 1 Output / Supports Two-Way Audio / Compression: G.711a / G.711Mu / G.726 / AAC / MPEG2-Layer2 / G.722.1 / G.729 / G.723

Alarm Interface: 2 Inputs / 1 Output / Alarm Linkage: Capture / Preset / Tour / Pattern / SD Card Record / Trigger Digital Output / Client Electronic Map / Send Email

RS485: N/A

Edge Storage: MicroSD Card (Up to 256GB) / FTP / NAS

Interoperability: ONVIF (Profile S / Profile G) / CGI

Power Supply: 12VDC / 4A ±10% / PoE (802.3af)

Power Consumption: <16W / <24W (IR On, PTZ Operations)

Operating Conditions: -40°C to +70°C / ≤95% RH

Ingress Protection: IP67

Vandal Resistance: N/A

Series: Specialist AI Series

Camera Type: PTZ

Housing: Metal

Pan/Tilt/Rotation: N/A

ePoE: No

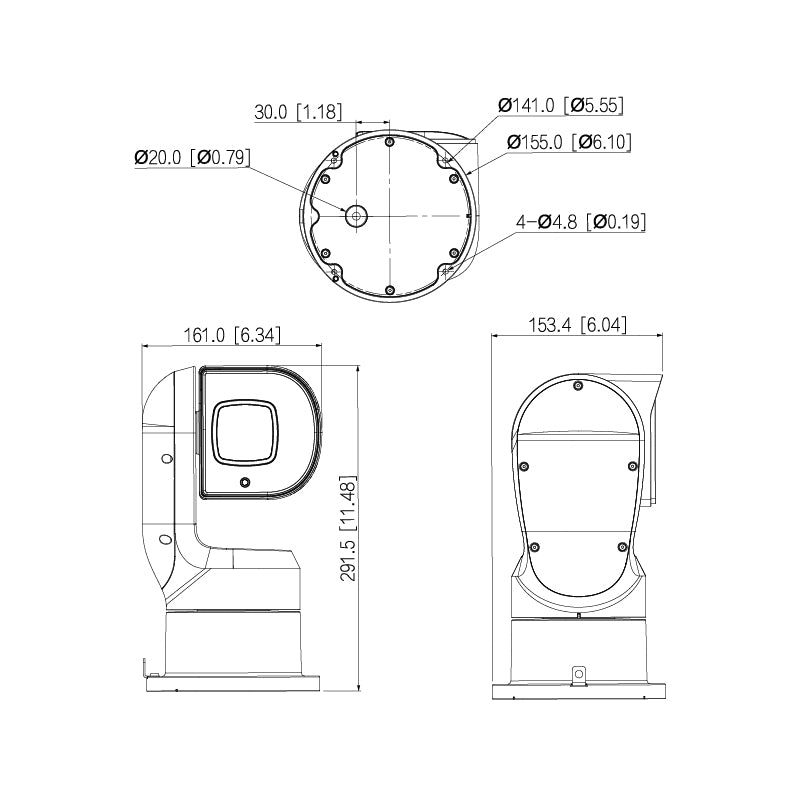

Dimensions: 161 × 135 × 292 mm

Net Weight: 3.6 kg

Surge Protection: TVS 8000V Lightning Proof / Surge Protection / Voltage Transient Protection

Warranty: 4 Years

Shipping Width: 187 mm

Shipping Height: 138 mm

Shipping Depth: 279 mm

Shipping Weight: 6.40 kg
