Specialist AI Series 6.0MP People Counting 360° Fisheye Dome

Image Sensor: 1/2.5" 6.0MP Progressive Scan CMOS

Max. Resolution: 6.0 Megapixel

Effective Pixels: 2560 × 2560

RAM / ROM: 4TB / 1TB

Min. Illumination: 0.006 Lux at F2.0 (Colour) / 0.0006 Lux at F2.0 (B&W) / 0 Lux (Illuminator On)

S/N Ratio: >56dB

Infrared System: 3 × Infrared LEDs, 15 m Range, Auto / Manual On/Off Control

Lens Type: Fixed

Lens / Iris: 1.68 mm F2.0 Fixed Circular Fisheye Lens

Field of View: Horizontal: 185° / Vertical: 185°

Focus: Fixed / 0.3 m Min. Focus

Detect (25px/m): 33.6 m

Observe (63px/m): 13.4 m

Recognise (125px/m): 6.7 m

Identify (250px/m): 3.4 m

Resolution: 6.0MP (2560 × 2560) to UVGA (1600 × 1200)

Frame Rate (Main): 6.0MP (1–25fps)

Frame Rate (Sub): 2.0MP (1–25fps)

Frame Rate (Third): 2.0MP (1–25fps)

Video Compression: H.265 / H.264 / H.264H / H.264B / AI H.265 / AI H.264 / MJPEG (Only Supported by Sub Stream)

Bit Rate: H.265: 3–16384Kbps / H.264: 3–16384Kbps

Bit Rate Control: Constant Bit Rate (CBR) / Variable Bit Rate (VBR) / Adaptive Bit Rate (ABR)

Day/Night: Auto (ICR) / Colour / B&W

Lighting Compensation: BLC / HLC / True WDR (120dB)

Smart Scene Adaptive (SSA): Yes

White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control: Auto / Manual

Noise Reduction: 3D DNR

Dewarping Modes: Original (No Dewarp) / Panoramic / Virtual PTZ / Original + 3 Split / + 4 Split / Front-Dewarp / Back-Dewarp

Intelligent Functions: Tripwire, Intrusion, Motion Detection (4 Zones), Region of Interest (4 Zones), Privacy Masking (4 Zones), Smart Infrared, Heat Map

People Counting: Supports Area People Counting (No. of People, People Quantity Thresholds, 4 Zones) / Heat Mapping (No. of People and Time Spent)

Ethernet: RJ-45 (100/1000 Base-T)

Protocol: IPv4 / IPv6 / HTTP / HTTPS / TCP / UDP / ARP / RTP / RTSP / RTCP / RTMP / SMTP / FTP / SFTP / DHCP / DNS / DDNS / QoS / UPnP / NTP / Multicast / ICMP / IGMP / NFS / PPPoE / SNMP / P2P

Streaming Method: Multicast

Max. User Access: 20 Users

Video Interface: N/A

Audio Interface: 1 Channel Input (RCA) / 1 Built-In Mic / 1 Built-In Speaker / 1 Channel Output / Audio Compression: PCM / G.711A / G.711Mu / G726 / AAC

Alarm Interface: 1 Channel Input (5mA 3–5VDC) / 1 Channel Output (300mA 12VDC)

RS485: 1 (Baud Rate Range: 1200bps–115200bps)

Edge Storage: MicroSD Card (Up to 1TB) / NAS / FTP / SFTP

Interoperability: ONVIF (Profile S / Profile G / Profile T) / CGI

Power Supply: 12VDC / PoE (802.3af)

Power Consumption: <1.4W (12VDC) / <8.1W (12VDC Max.) / <10.1W (PoE) / <8.8W (PoE Max.)

Operating Conditions: -10°C to +60°C / Less Than 95% RH

Ingress Protection: IP67

Vandal Resistance: IK10

Series: Specialist AI Series

Camera Type: Fisheye

Housing: Metal + Plastic

Pan/Tilt/Rotation: N/A

ePoE: No

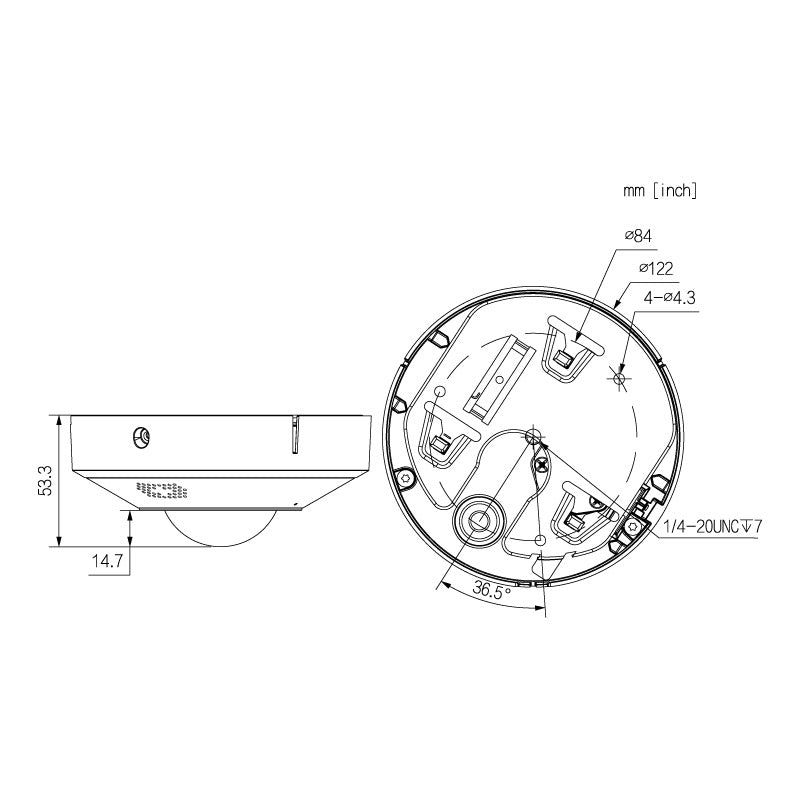

Dimensions: Ø122 × 53.3 mm

Net Weight: 0.46 kg

Warranty: 4 Years

Shipping Width: 340 mm

Shipping Height: 168 mm

Shipping Depth: 168 mm

Shipping Weight: 1.70 kg
