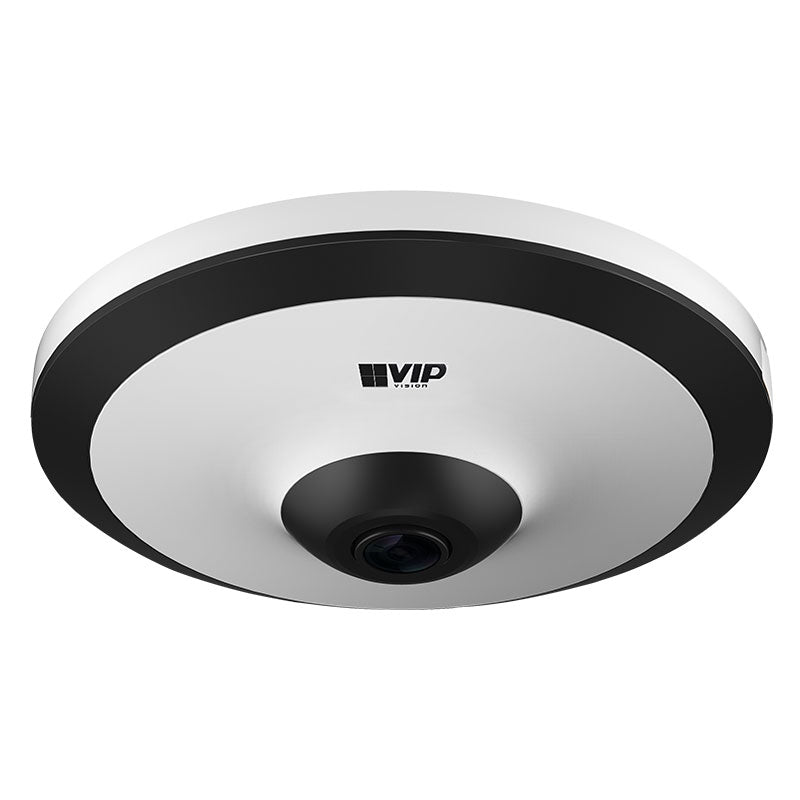

Specialist AI Series 5.0MP People Counting 360° Fisheye Dome

Image Sensor: 1/2.7" 5.0MP Progressive Scan CMOS

Max. Resolution: 5.0 Megapixel

Effective Pixels: 2592 × 1944

RAM / ROM: 512MB / 128MB

Min. Illumination: 0.006 Lux at F2.0 (Colour)

S/N Ratio: >56dB

Infrared System: 3 × Infrared LEDs, 10 m Range, Auto / Manual On/Off Control

Lens Type: Fixed

Lens / Iris: 1.4 mm F2.0 Fixed Circular Fisheye Lens

Field of View: Horizontal: 180° / Vertical: 180°

Focus: Fixed / 0.2 m Min. Focus

Detect (25px/m): 28 m

Observe (63px/m): 11 m

Recognise (125px/m): 6 m

Identify (250px/m): 3 m

Resolution: 5.0MP (2592 × 1944) to CIF (352 × 288)

Frame Rate (Main): 5.0MP (1–25fps)

Frame Rate (Sub): D1 (1–25fps)

Frame Rate (Third): 720p (1–25fps)

Video Compression: H.265+ / H.265 / H.264+ / H.264 / H.264H / H.264B / MJPEG

Bit Rate: H.265: 3–8192Kbps / H.264: 3–8192Kbps

Bit Rate Control: Constant Bit Rate (CBR) / Variable Bit Rate (VBR)

Day/Night: Auto (ICR) / Colour / B&W

Lighting Compensation: BLC / HLC / True WDR (120dB)

Smart Scene Adaptive (SSA): Yes

White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control: Auto / Manual

Noise Reduction: 3D DNR

Dewarping Modes: Original (No Dewarp) / Panoramic / Double Panoramic / Virtual PTZ / Original + 3 Split / + 4 Split / + 8 Split

Intelligent Functions: Tripwire, Intrusion, Motion Detection (4 Zones), Region of Interest (4 Zones), Privacy Masking (4 Zones), Smart Infrared, Heat Map

People Counting: Supports Area People Counting (No. of People, People Quantity Thresholds, 4 Zones) / Heat Mapping (No. of People and Time Spent)

Ethernet: RJ-45 (100/1000 Base-T)

Protocol: IPv4 / IPv6 / HTTP / HTTPS / TCP / UDP / ARP / RTP / RTSP / RTCP / RTMP / SMTP / FTP / SFTP / DHCP / DNS / DDNS / QoS / UPnP / NTP / Multicast / ICMP / IGMP / NFS / PPPoE / 802.1x / SNMP

Streaming Method: Unicast / Multicast

Max. User Access: 20 Users (Total Bandwidth: 64M)

Video Interface: N/A

Audio Interface: 1 Input (RCA Port) / 1 Built-In Mic / 1 Output (RCA Port) / Audio Compression: PCM / G.711a / G.711Mu / G726 / AAC

Alarm Interface: 1 Input (5mA 3–5VDC) / 1 Output (300mA 12VDC)

RS485: N/A

Edge Storage: MicroSD Card (Up to 256GB) / NAS / FTP / SFTP

Interoperability: ONVIF Profile S, G & T / CGI / P2P / Milestone / Genetec

Power Supply: 12VDC / PoE (802.3af)

Power Consumption: <3.6W (12VDC) / <4.4W (PoE) / <8.8W (Max.)

Operating Conditions: -10°C to +50°C / Less Than 95% RH

Ingress Protection: N/A

Vandal Resistance: N/A

Series: Specialist AI Series

Camera Type: Fisheye

Housing: Metal + Plastic

Pan/Tilt/Rotation: N/A

ePoE: No

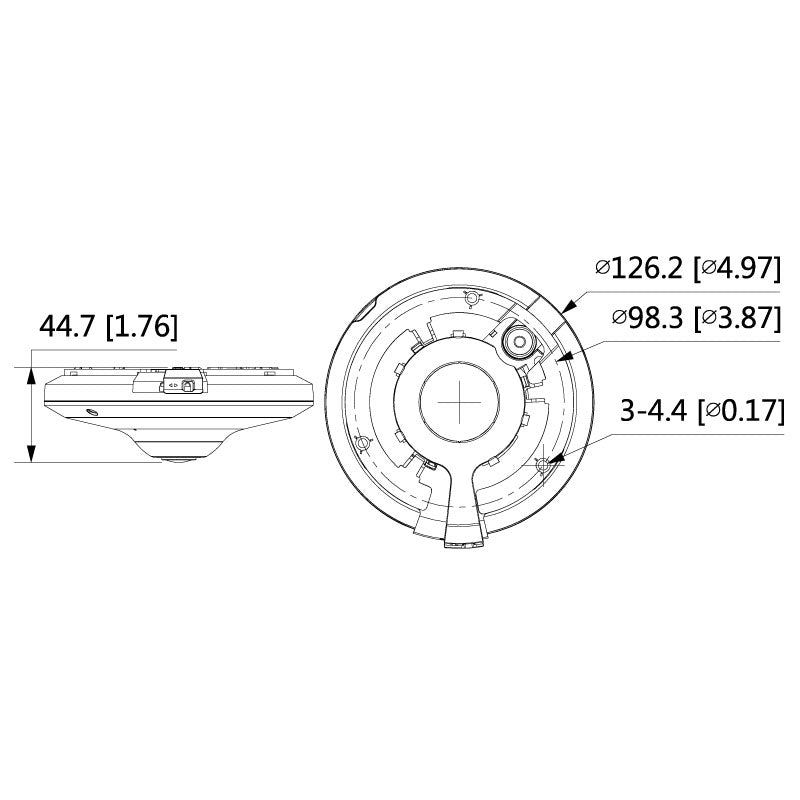

Dimensions: Ø126.2 × 44.6 mm

Net Weight: 0.3 kg

Warranty: 4 Years

Shipping Width: 340 mm

Shipping Height: 168 mm

Shipping Depth: 168 mm

Shipping Weight: 1.70 kg
