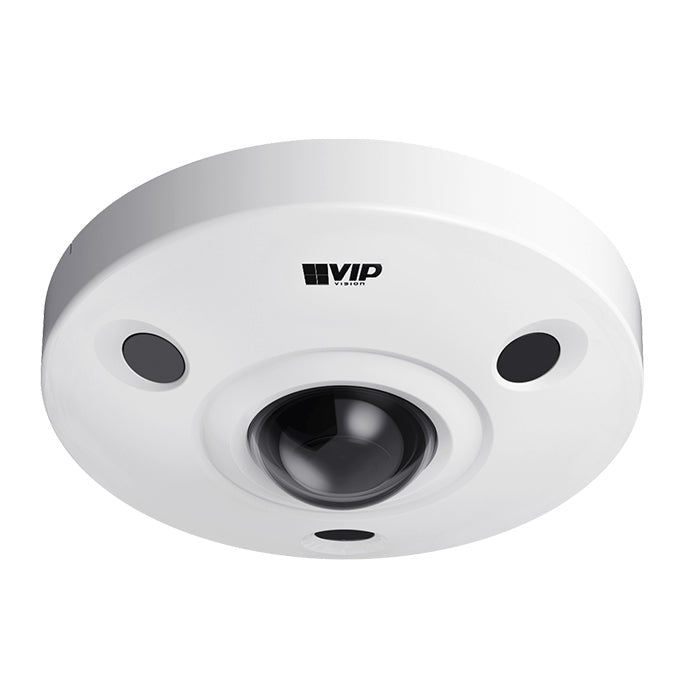

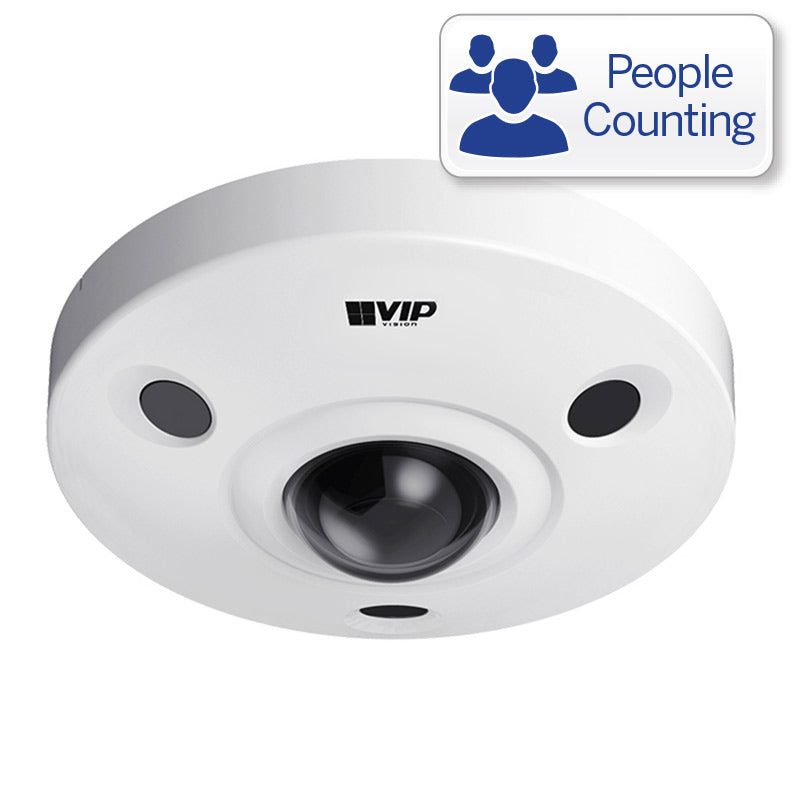

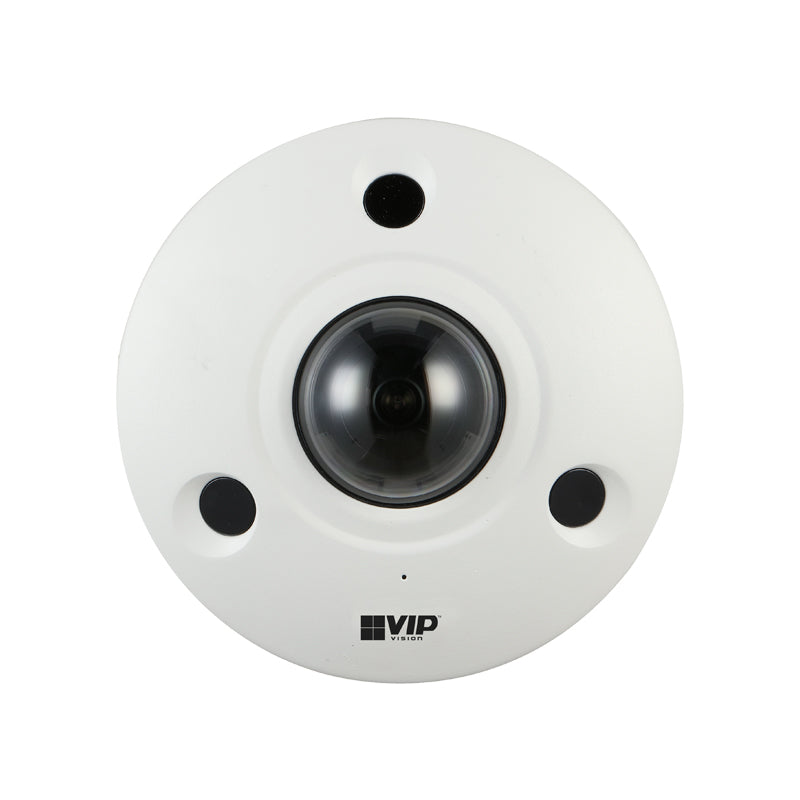

Specialist AI Series 12.0MP People Counting 360° Fisheye Dome

Image Sensor: 1/1.7" 12.0MP Progressive Scan CMOS

Max. Resolution: 12.0 Megapixel

Effective Pixels: 4000 × 3000

RAM / ROM: 4GB / 4GB

Min. Illumination: 0.001 Lux at F2.0 (Colour, 1/3s) / 0.01 Lux at F2.0 (Colour, 1/30s) / 0 Lux at F2.0 (IR On)

S/N Ratio: 49.7dB

Infrared System: 3 × Infrared LEDs, 10 m Range

Lens Type: Fixed

Lens / Iris: 1.85 mm F2.0 Fixed Focal Lens with Fixed Aperture

Field of View: Horizontal: 185° / Vertical: 180°

Focus: Fixed

Detect (25px/m): 40 m

Observe (63px/m): 16 m

Recognise (125px/m): 8 m

Identify (250px/m): 4 m

Resolution: 12.0MP (4000 × 3000) to CIF (352 × 288)

Frame Rate (Main): 12.0MP (1–25fps)

Frame Rate (Sub): D1 (1–25fps)

Frame Rate (Third): D1 (1–25fps)

Video Compression: H.265 / H.264 / H.264H / H.264B / MJPEG

Bit Rate: H.264: 88Kbps–16384Kbps / H.265: 52Kbps–16384Kbps

Bit Rate Control: Constant Bit Rate (CBR) / Variable Bit Rate (VBR)

Day/Night: N/A

Lighting Compensation: DWDR

Smart Scene Adaptive (SSA): No

White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control: Manual

Noise Reduction: 3D DNR

Dewarping Modes: Original (Dewarp Supported) / Panoramic / Double Panoramic / Virtual PTZ / Original + 3 Split / + 4 Split / + 8 Split

Intelligent Functions: Intrusion, Tripwire, Region of Interest (4 Zones), Privacy Masking (4 Zones), Smart Infrared, Heat Map

People Counting: Queue Management (Triggers Alarm When Designated Amount of People Enters Zone, 4 Zones) / Heat Mapping (Number of People and Time Spent)

Ethernet: RJ-45 (10/100Base-T)

Protocol: HTTP / TCP / ARP / RTSP / RTP / UDP / RTCP / SMTP / FTP / DHCP / DNS / DDNS / PPPoE / IPv4/IPv6 / SNMP / QoS / UPnP / NTP

Streaming Method: Unicast / Multicast

Max. User Access: 20 Users

Video Interface: N/A

Audio Interface: 1 Channel Input (RCA) / 1 Built-In Mic / 1 Channel Output / Audio Compression: G.711A / G.711Mu / G726 / AAC

Alarm Interface: 2 Channel Inputs / 2 Channel Outputs

RS485: N/A

Edge Storage: MicroSD Card (Up to 256GB) / FTP

Interoperability: ONVIF (Profile S / Profile G) / GB/T28181 / CGI

Power Supply: 12VDC / PoE

Power Consumption: <9.2W (12VDC) / <12.9W (PoE)

Operating Conditions: -30°C to +45°C / ≤95% RH

Ingress Protection: IP67

Vandal Resistance: IK10

Series: Specialist AI Series

Camera Type: Fisheye

Housing: Metal, Plastic

Pan/Tilt/Rotation: N/A

ePoE: No

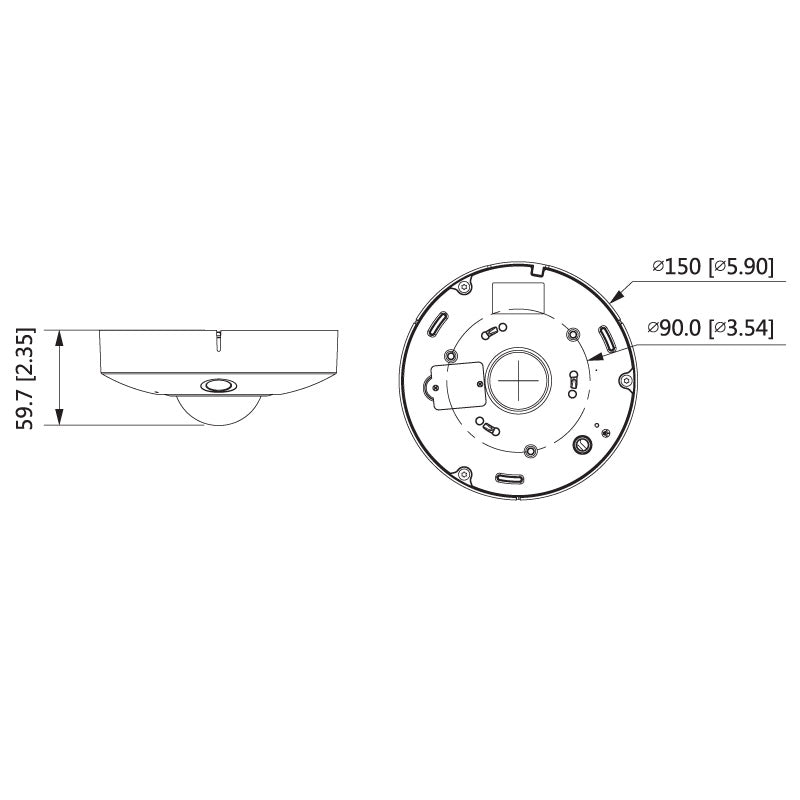

Dimensions: Ø150 × 60 mm

Net Weight: 0.77 kg

Warranty: 4 Years

Shipping Width: 340 mm

Shipping Height: 168 mm

Shipping Depth: 168 mm

Shipping Weight: 1.70 kg
