Residential IP Intercom Monitor with Handset (Black)

INTIPMONDBH

Regular price $345.00

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

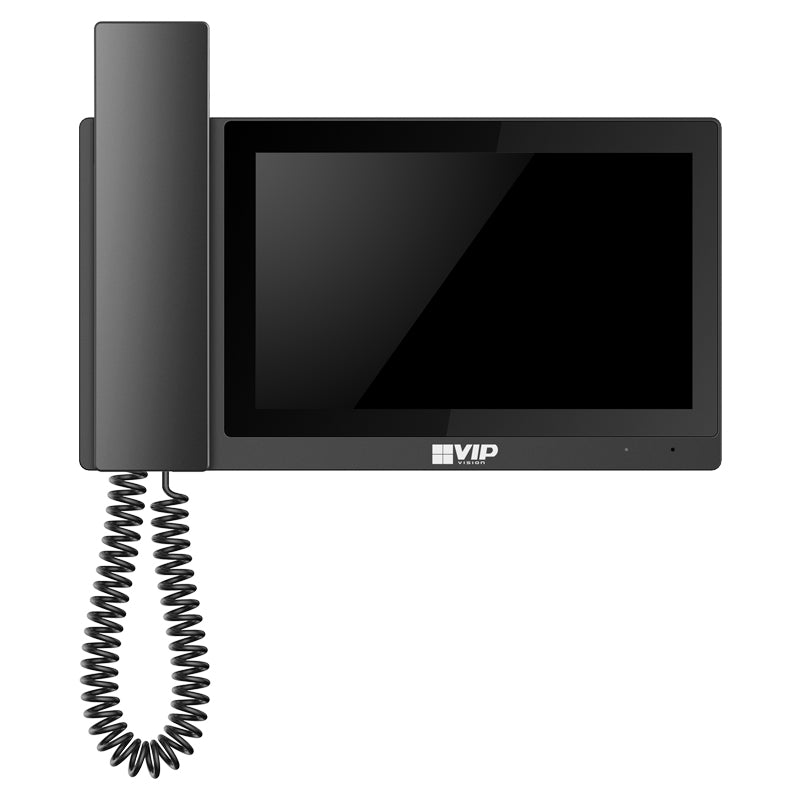

The INTIPMONDBH is a touch screen indoor monitor that integrates into IP video intercom solutions. The monitor communicates with the apartment door station via handset, and features live-view of the door station camera.

Product features:
• 1024 x 600 7" TFT capacitive touch screen
• Record and snapshot video calls/messages
• All calls and messages logged
• Prevent unwanted calls with Do Not Disturb mode
• Door station & IP camera live viewing
• Alarm system integration
• MicroSD storage (up to 32GB)
• Wall-mounted handset design

* Connection via LAN only.
* Requires an IP intercom Management Server (INTIPSIPSRV) for SIP firmware installations.
* Not compatible with INTIPRDSDB or other door stations that do not have SIP firmware available.

Main Processor: Embedded Microprocessor

Video Compression: H.264

Audio Input: Omni-Directional Microphone / Handset

Audio Output: Embedded Loudspeaker / Handset

Bidirectional Talk: Support

Display Size: 7" Colour TFT LCD (1024 × 600) Capacitive Touchscreen

Display Resolution: 1024 × 600

Alarm Support: 6 Input / 1 Output

Operational Input: Capacitive Touchscreen / Mechanical Keys

Internal Capacity: MicroSD Slot, Up to 32GB

Ethernet: 10/100Mbps Self-Adaptive

Network Protocol: SIP

Operating Temperature: -10°C to +55°C / 10–90% RH (Max.)

Installation: Surface Mountable. Optional Bracket (INTIPMONDH-B) for Desktop Mount

Power Input: 12VDC, PoE (802.3af)

Power Consumption: Standby <3.5W / Operation <5W

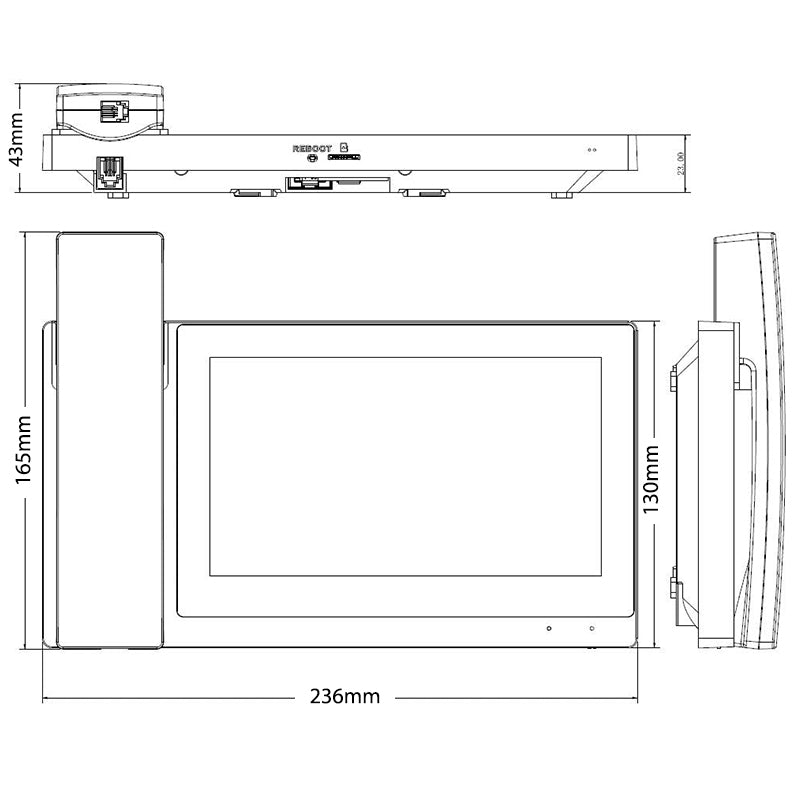

Dimensions: 236 × 166 × 42 mm

Weight: 0.90 kg

Warranty: 4 Years

Shipping Width: 280 mm

Shipping Height: 95 mm

Shipping Depth: 200 mm

Shipping Weight: 0.85 kg
