Residential D2 Series IP Door Station

INTIPRDSD2

Regular price $379.00

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

The VIP Vision Residential Series door station, INTIPRDSD2, is a perfect multi-functional access and communication control solution for large single-dwelling premises. It features support for intercom upgrades via existing 2-wire infrastructure and for new IP installations. It features keypad or IC card unlock for easy access.

Product features:
• 1/2.9’’ 2.0MP sensor, 1080p Full HD resolution
• Wide angle lens with 140° horizontal field of view
• Keypad for code unlock & NFC reader for card access
• Rings all monitors on call; add up to 10 monitors
• Intuitive, easy-to-use mechanical button interface
• 48VDC / PoE (802.3af/at) power input support
• IP65/IK08 weather & vandal resistant front plate
• Supplemental white light for illuminating visitors

* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.

*This door station is compatible with 13.56MHz NFC cards only.

Main Processor: Embedded Microprocessor

Button Illumination: Supplemental White Light (AGC) with Backlit Keypad

Card Support: Mifare, Up to 30 mm Card Detection, AM Modulation, 13.56MHz, 42dBuA/m@10m Max. TX Power

Tamper Detection: Yes

Internal MicroSD Slot: MicroSD Slot, Up to 256GB (Sold Separately)

Max. Additional Door Stations: 20

Max. Indoor Monitors: 10

App Connection: QR Code

Camera System: 1/2.9" 2.0 Megapixel CMOS with 2 mm Lens (Horizontal FoV: 140°)

Low-Light Application: N/A

Input / Output: 1 × RJ45, 1 × 12V/600mA, 1 × Alarm I/O, 1 × Wiegand, 1 × RS-485

Audio / 2-Way Talk: Omni-Directional Microphone & Embedded Loudspeaker for 2-Way Talk

Ethernet / Network: 10M/100Mbps Self-Adaptive / TCP/IP Protocol

Vandal Resistant: IK08

Ingress Protection: IP65 (Front Plate)

Construction: N/A

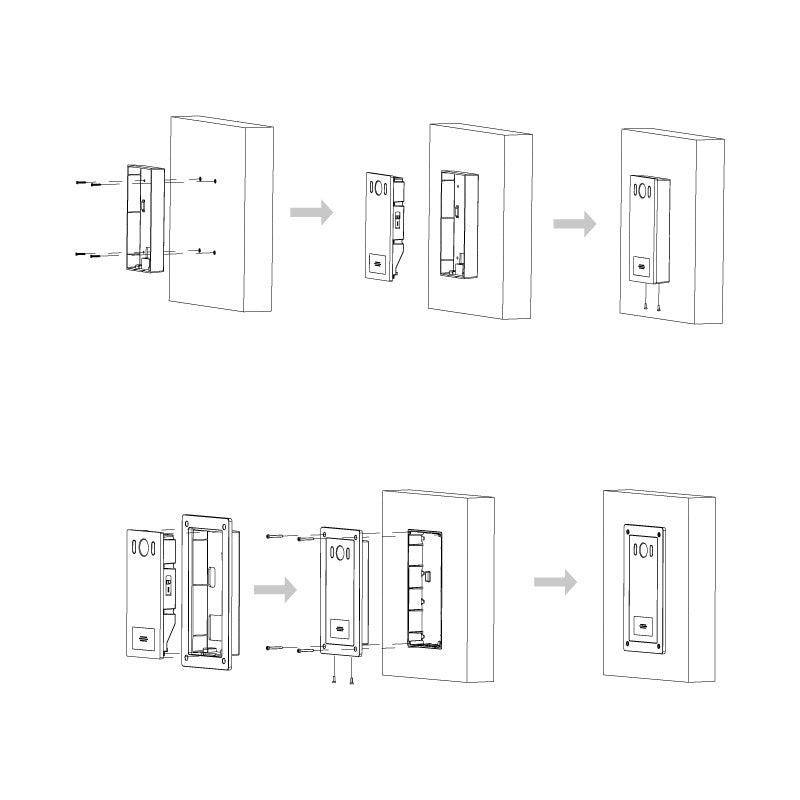

Installation Options: Surface Mount / Flush Mount (Sold Separately)

Power Input: 48VDC, PoE (802.3af/at)

Power Consumption: Standby <5W / Operation <7W

Weight: 0.69 kg

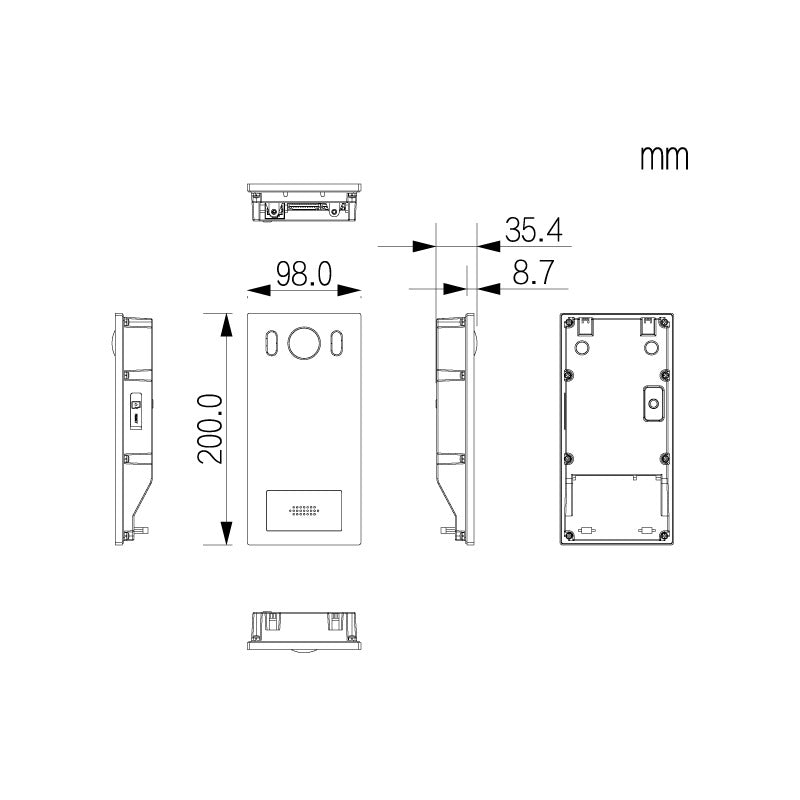

Dimensions: 200 × 98 × 35 mm

Interface: 1 × Door Chime, 1 × Exit Button, 1 × Lock Control

Operating Environment: -40°C to +60°C / 10–90% Relative Humidity

Warranty: 4 Years

Shipping Width: 130 mm

Shipping Height: 240 mm

Shipping Depth: 60 mm

Shipping Weight: 1.00 kg
