Residential 4 Button IP Intercom Door Station

INTIPDDS4W

Regular price $315.00

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

The INTIPDDS4W video intercom door station is ideal for homes and multi-premises buildings such as duplexes. The door station features a 2.0MP camera with auto day/night IRC, all in a stylish aluminium body.

Product features:
• 1/2.8’’ 2.0MP 1.9mm lens camera with 125° FOV
• Built-in microphone and speaker for 2-way talk
• Built-in NFC card reader for keycard access (up to 10,000 NFC cards)
• Connect with intercom monitor(s) via Ethernet
• Door control, alarm and RS485 input/output relays
• Customise number of buttons to your needs; 1, 2 or 4 buttons
• Intuitive, easy-to-use interface
• Weather and vandal resistant IP65/IK08 aluminium body
• Power over Ethernet (12VDC, 802.3af)

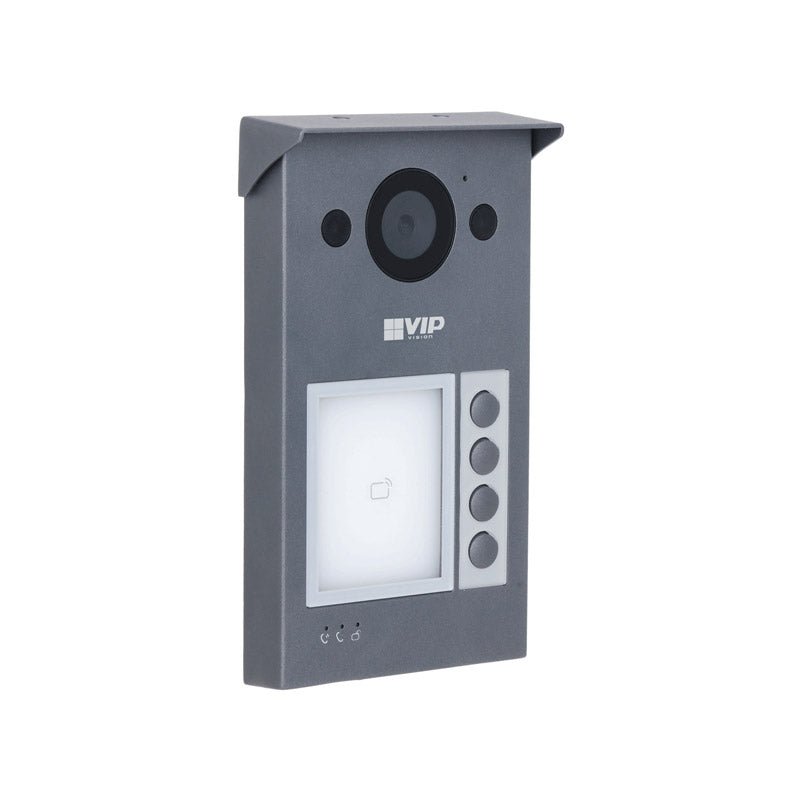

• Includes a rain cover

* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather.

Main Processor: Embedded Microprocessor

Button Illumination: None

Card Support: Built-in NFC Card Reader, Supports Up to 10,000 13.56MHz NFC Cards

Tamper Detection: Yes

Internal MicroSD Slot: 256GB

Max. Additional Door Stations: 20

Max. Indoor Monitors: 44 (11 per Button)

App Connection: QR Code

Camera System: 1/2.8" 2.0 Megapixel CMOS with 1.9 mm Lens (Horizontal FoV: 125°)

Low-Light Application: Day/Night ICR

Input / Output: 1 × Relay for Door Control / 2 × Channel Alarm Interface / 1 × RS-485

Audio / 2-Way Talk: Omni-Directional Microphone & Embedded Loudspeaker for 2-Way Talk

Ethernet / Network: 10M/100Mbps Self-Adaptive / TCP/IP Protocol

Vandal Resistant: IK08

Ingress Protection: IP65

Construction: Aluminium Alloy

Installation Options: N/A

Power Input: 12VDC, PoE (802.3af)

Power Consumption: Standby <3W / Operation <6W

Weight: 0.81 kg

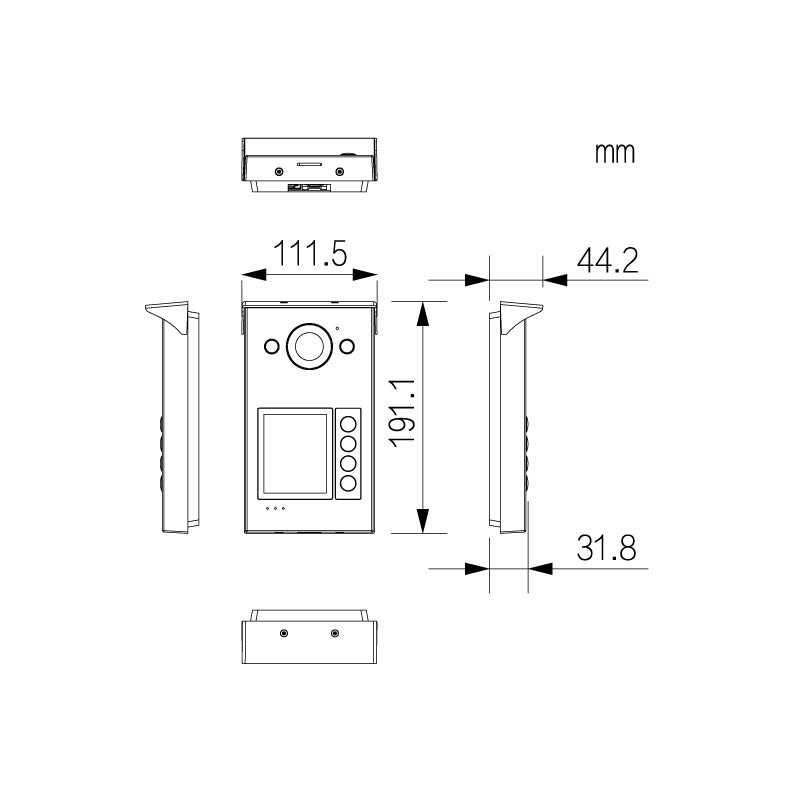

Dimensions: 182 × 107 × 30 mm

Category: Intercom Systems

Keypad: 4 Mechanical Buttons

Warranty: 4 Years

Shipping Width: 160 mm

Shipping Height: 60 mm

Shipping Depth: 240 mm

Shipping Weight: 1.00 kg
