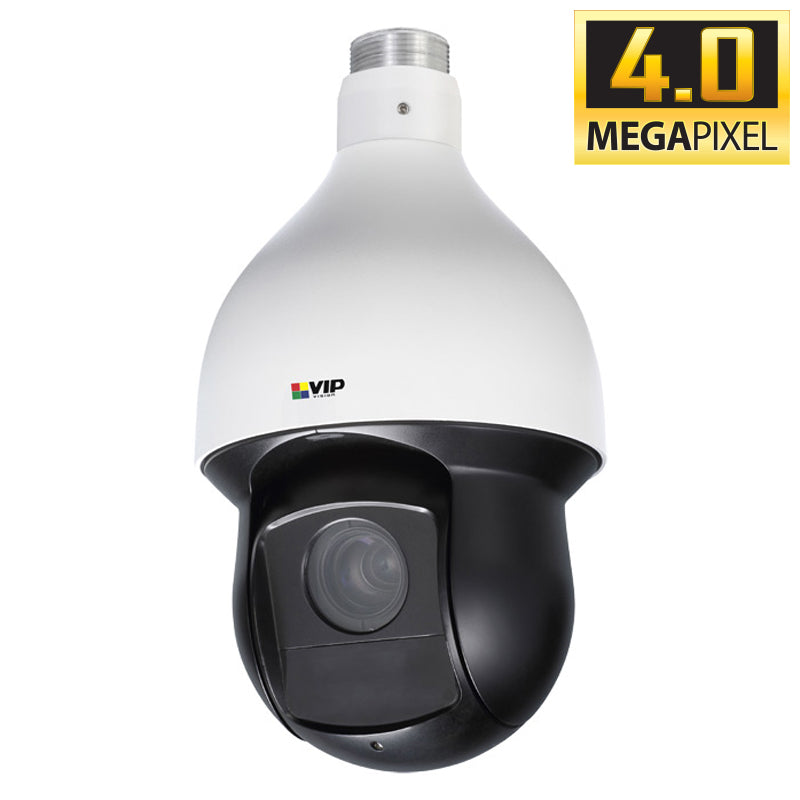

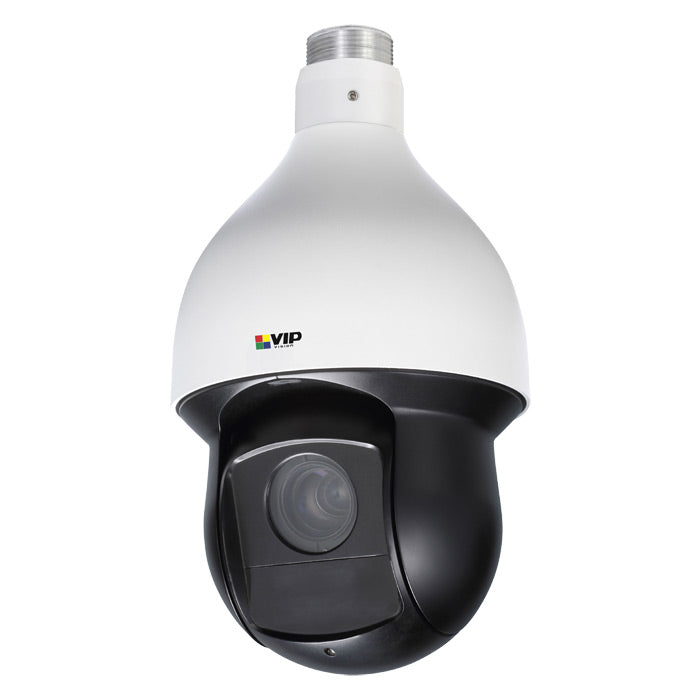

Professional Series 4.0MP WDR Infrared 30x Zoom PTZ Dome

Image Sensor: 1/3" 4.0MP Progressive Scan CMOS

Max. Resolution: 4.0 Megapixel

Effective Pixels: 2592 × 1520

RAM / ROM: 1024MB / 128MB

Ultra Low Light Colour: No

Min. Illumination: 0.005 Lux at F1.6 (Colour) / 0.0005 Lux at F1.6 (B&W) / 0 Lux at F1.6 (IR On)

S/N Ratio: >55dB

Infrared: Yes

Infrared System: 4 × Infrared LEDs, 100 m Range, Auto / Manual On/Off Control

Lens Type: Motorised Varifocal

Lens / Iris: 4.5–135 mm F1.6–F4.4 Motorised Lens

Field of View: Horizontal: 60°–2.2° (30× Optical Zoom)

Focus: Auto / Manual / 1 m Min. Focus Distance

Detect (25px/m): 2700 m

Observe (63px/m): 1080 m

Recognise (125px/m): 1772 m

Identify (250px/m): 270 m

Pan / Tilt Range: Pan: 0°–360° (Endless) / Tilt: -15°–90° / Auto-Flip 180°

PTZ Speed: Preset: Pan: 400°/s / Tilt: 300°/s / Manual: Pan: 300°/s / Tilt: 200°/s

Modes / Presets: Up to 300 Presets / 5 Pattern / 8 Tour / Auto Pan / Auto Scan

Start-up Action: Auto-Restore to Previous PTZ/Lens Status

Auto Tracking: Support

Resolution: 4.0MP (2592 × 1520) to CIF (352 × 288)

Frame Rate (Main): 4.0MP (1–25fps) / 1080p (1–50fps)

Frame Rate (Sub): D1 (1–25fps)

Frame Rate (Third): 1080p (1–25fps)

Video Compression: H.265 / H.264 / MJPEG

Bit Rate: H.265/H.264: 448K–8192Kbps / MJPEG: 5120K–10240Kbps

Bit Rate Control: Constant Bit Rate (CBR) / Variable Bit Rate (VBR)

Day/Night: Auto (ICR) / Colour / B&W

Lighting Compensation: BLC / HLC / WDR (120dB)

White Balance: Auto / ATW / Indoor / Outdoor / Manual

Gain Control: Auto / Manual

Noise Reduction: Ultra 2D/3D DNR

Picture Control: Flip 180°

IVS: Yes

Intelligent Functions: Tripwire, Intrusion, Abandoned/Missing Object, Face Detection, Motion Detection, Region of Interest, Electronic Image Stabilisation, Privacy Masking (24 Zones), Defog

Ethernet: RJ-45 (10/100Base-T)

Protocol: HTTP / HTTPS / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPoE / IPv4/IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP

Streaming Method: Unicast / Multicast

Max. User Access: 10 Users / 20 Users

RTMP Support: No

Video Interface: N/A

Audio Interface: 1 Input / 1 Output / Compression: G.711a / G.711mu / G.726 / AAC

Alarm Interface: 2 Inputs / 1 Output

RS485: N/A

Edge Storage: MicroSD Card (Up to 256GB) / NAS / Local PC

Interoperability: ONVIF / PSIA / CGI

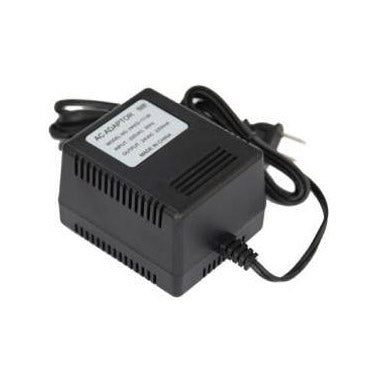

Power Supply: 24VAC / 3A / PoE+ (802.3at)

Power Consumption: <13W

Operating Conditions: -40°C to +70°C / Less Than 90% RH

Ingress Protection: IP66

Weather Resistance: Yes

Vandal Resistance: N/A

Series: Professional Series

Camera Type: PTZ Dome

Housing: Metal

Pan/Tilt/Rotation: Pan: 0°–360° / Tilt: 15°–90° / Rotation: 0°–360°

Tri-Axis Mounting: No

ePoE: No

Dimensions: Ø186 × 309 mm

Net Weight: 3.5 kg

Category: Network Surveillance

Warranty: 4 Years

Shipping Width: 290 mm

Shipping Height: 290 mm

Shipping Depth: 510 mm

Shipping Weight: 7.80 kg
