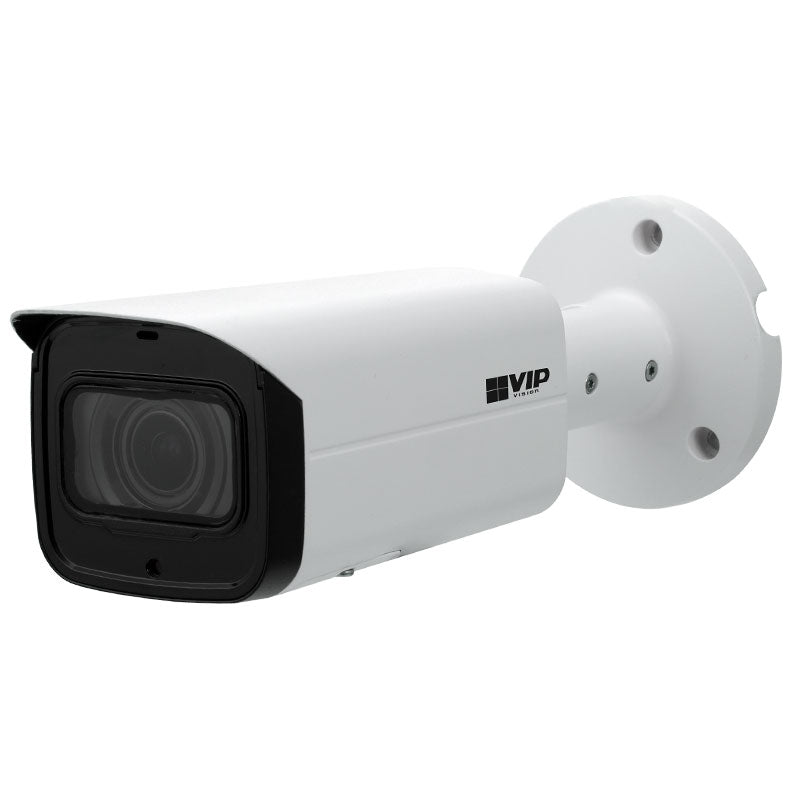

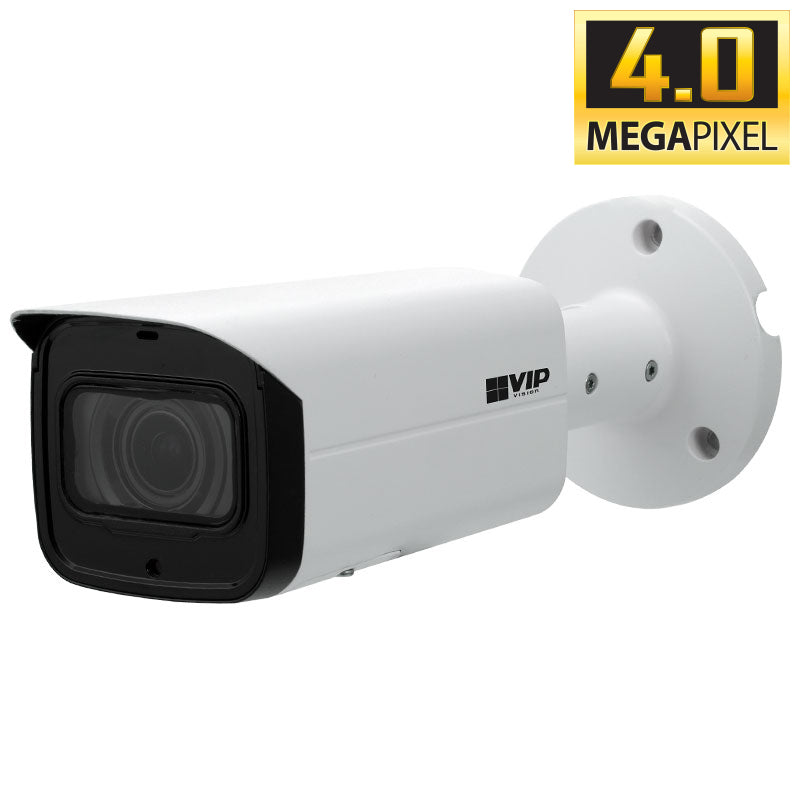

Professional Series 4.0MP Motorised Bullet

Image Sensor: 1/3" 4.0MP Progressive Scan CMOS

Max. Resolution: 4.0 Megapixel

Effective Pixels: 2688 × 1520

RAM / ROM: 128MB / 128MB

Ultra Low Light Colour: Yes

Min. Illumination: 0.008 Lux at F1.5 (Colour)

S/N Ratio: >50dB

Infrared: Yes

Infrared System: 4 × Infrared LEDs, 60 m Range, Auto / Manual On/Off Control

Lens Type: Motorised Varifocal

Lens / Iris: 2.7–13.5 mm F1.5 Motorised Varifocal Lens with Fixed Iris

Field of View: Horizontal: 104°–27° / Vertical: 55°–15° (5× Optical Zoom)

Focus: Auto Focus / 0.8 m Min. Focus Distance

Detect (25px/m): 64 m (Wide) / 220 m (Tele)

Observe (63px/m): 26 m (Wide) / 88 m (Tele)

Recognise (125px/m): 13 m (Wide) / 44 m (Tele)

Identify (250px/m): 6 m (Wide) / 22 m (Tele)

Resolution: 4.0MP (2688 × 1520) to CIF (352 × 288)

Frame Rate (Main): 4.0MP (1–20fps) / 3.0MP (1–25fps)

Frame Rate (Sub): D1 (1–25fps)

Frame Rate (Third): N/A

Video Compression: H.265 / H.264 / H.264B / MJPEG

Bit Rate: H.265: 12–6144Kbps / H.264: 32–6144Kbps

Bit Rate Control: Constant Bit Rate (CBR) / Variable Bit Rate (VBR)

Day/Night: Auto (ICR) / Colour / B&W

Lighting Compensation: BLC / HLC / WDR (120dB)

Smart Scene Adaptive (SSA): No

White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control: Auto / Manual

Noise Reduction: 3D DNR

Picture Control: Mirror / Flip (0° / 90° / 180° / 270°)

IVS: Yes

Intelligent Functions: Motion Detection (4 Zones), Region of Interest (4 Zones), Privacy Masking (4 Zones), Smart Infrared, Tripwire, Intrusion

Ethernet: RJ-45 (10/100Base-T)

Protocol: IPv4 / IPv6 / HTTP / HTTPS / TCP / UDP / ARP / RTP / RTSP / RTCP / RTMP / SMTP / FTP / SFTP / DHCP / DNS / DDNS / QoS / UPnP / NTP / Multicast / ICMP / IGMP / NFS / PPPoE / 802.1x / Bonjour

Streaming Method: Unicast / Multicast

Max. User Access: 20 Users

RTMP Support: N/A

Video Interface: N/A

Audio Interface: 1 Input / 1 Output / Audio Compression: G.711a / G.711Mu / G726 / AAC

Alarm Interface: 1 Channel In: 5mA 5VDC / 1 Channel Out: 300mA 12VDC

RS485: N/A

Edge Storage: MicroSD Card (Up to 256GB) / NAS

Interoperability: ONVIF / P2P / CGI / Milestone / Genetec

Power Supply: 12VDC / PoE (802.3af)

Power Consumption: <9.6W

Operating Conditions: -30°C to +60°C / ≤95% RH

Ingress Protection: IP67

Weather Resistance: Yes

Vandal Resistance: N/A

Series: Professional Series

Camera Type: Bullet

Housing: Metal

Pan/Tilt/Rotation: Pan: 0°–360° / Tilt: 0°–90° / Rotation: 0°–360°

Tri-Axis Mounting: Yes

ePoE: N/A

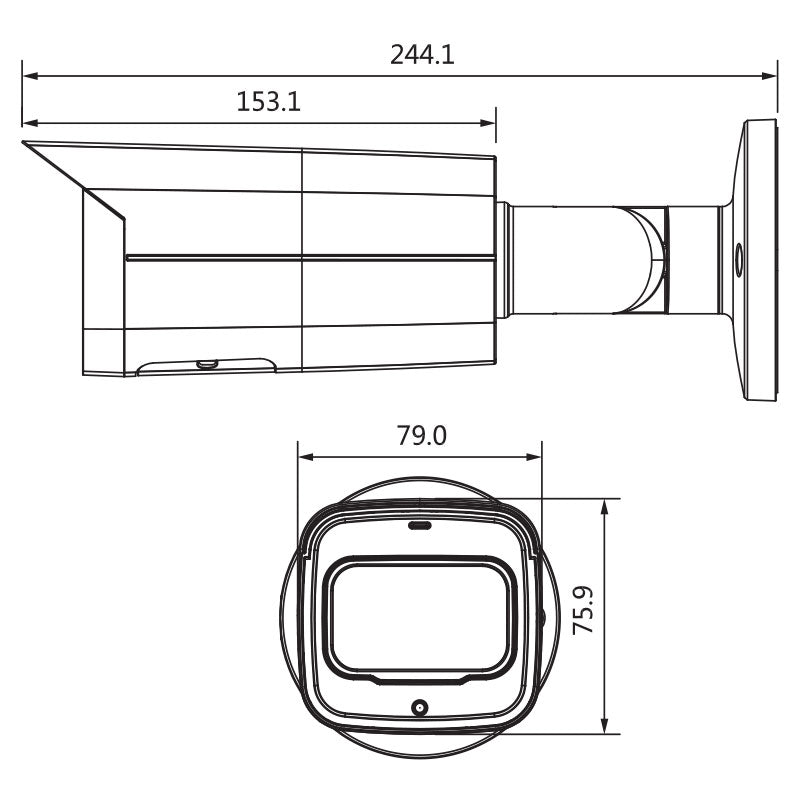

Dimensions: Ø90 × 244 mm

Net Weight: 0.90 kg

Category: Network Surveillance

Warranty: 4 Years

Shipping Width: 79 mm

Shipping Height: 244 mm

Shipping Depth: 76 mm

Shipping Weight: 1.08 k
