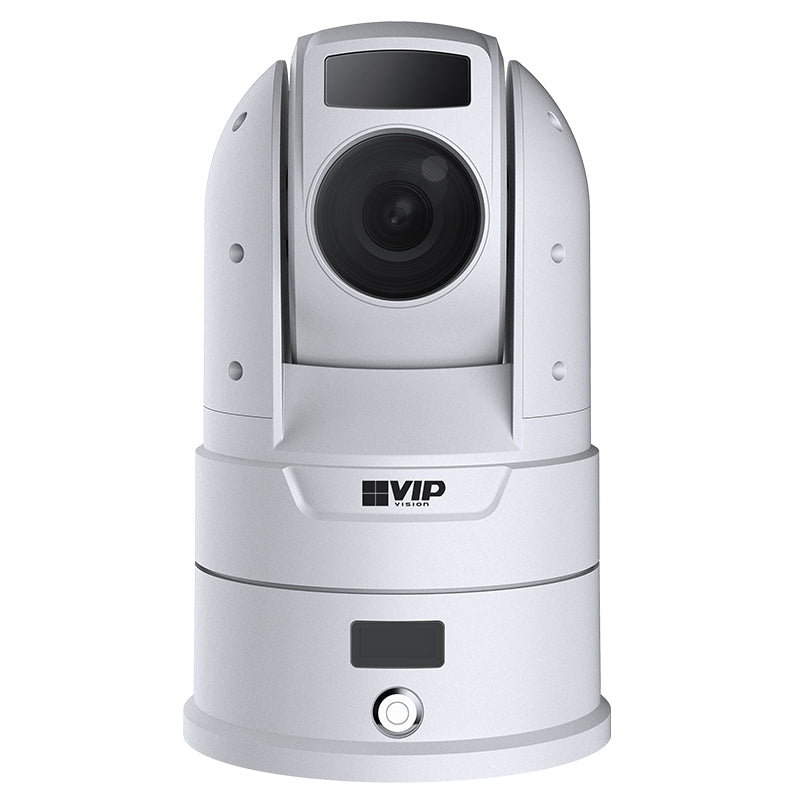

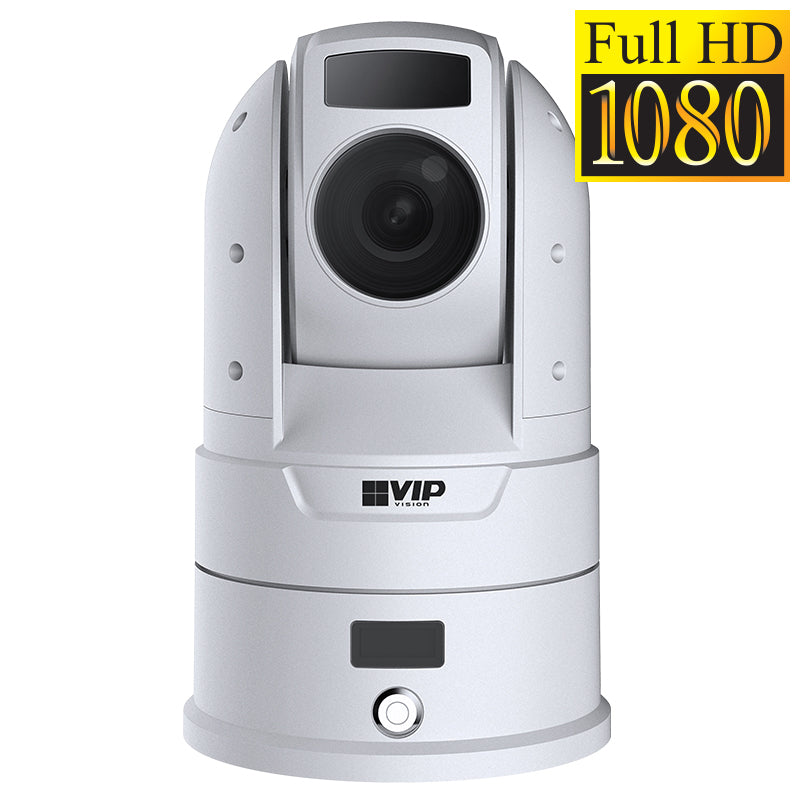

Professional Series 2.0MP 30x Zoom PTZ Positioning Camera with GPS, 4G & WiFi

Image Sensor: 1/1.9" 2.0MP CMOS

Max. Resolution: 2.0 Megapixel

Effective Pixels: 1920 × 1080

Ultra Low Light Colour: Yes

Min. Illumination: 0.004 Lux at F1.6 (Colour) / 0 Lux at F1.6 (IR On)

S/N Ratio: >54dB

Infrared: Yes

Infrared System: 4 × Infrared LEDs, 100 m Range, Auto / Manual On/Off Control

Anti-Shake DSP: Support

Lens Type: Motorised Varifocal

Lens / Iris: 6–180 mm Motorised Lens

Field of View: Horizontal: 61.2°–2.3° (30× Optical Zoom)

Focus: Auto / Semiautomatic / Manual

Pan / Tilt Range: Pan: 0°–360° (Endless) / Tilt: -15°–90° / Auto-Flip 180°

PTZ Speed: Preset: Pan: 400°/s / Tilt: 300°/s / Manual: Pan: 300°/s / Tilt: 200°/s

Modes / Presets: Up to 300 Presets / 5 Pattern / 8 Tour / Auto Pan / Auto Scan

Start-up Action: Auto-Restore to Previous PTZ/Lens Status

Auto Tracking: Support

Resolution: 1080p (1920 × 1080) to CIF (352 × 288)

Frame Rate (Main): 1080p (1–50fps)

Frame Rate (Sub): D1 (1–25fps)

Frame Rate (Third): 1080p (1–25fps)

Video Compression: H.265 / H.264

Bit Rate Control: Constant Bit Rate (CBR) / Variable Bit Rate (VBR)

Day/Night: Auto (ICR) / Colour / B&W

Lighting Compensation: BLC / HLC / WDR (120dB)

White Balance: Auto / ATW / Indoor / Outdoor / Manual

Gain Control: Auto / Manual

Noise Reduction: 2D/3D DNR

Picture Control: Horizontal: 0°–360° / Vertical: -20°–90°

IVS: No

Intelligent Functions: Motion Detection

Ethernet: RJ-45 (10/100Base-T)

Protocol: HTTP / HTTPS / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPoE / IPv4/IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP

Streaming Method: Unicast / Multicast

Max. User Access: 10 Users / 20 Users

RTMP Support: No

External Interface: 14-Core Aviation Connector (1: RJ45 Network Cable, 2: Ø5.5 × 2.1 mm Power Port, 3: GPS Port, 4: RS232) / 8-Core Aviation Connector (Optional) (1: Alarm Input, 2: Audio Input, 3: 12V Controllable Power (Alarm) Input, 4: RS485)

Audio Interface: 1 Input / Compression: PCM / G.711a / G.711u

Alarm Interface: 2 Inputs

RS485: Yes

Edge Storage: MicroSD Card (Up to 256GB) / NAS / Local PC

Interoperability: ONVIF / PSIA / CGI

Power Supply: 24VDC (6–36V)

Power Consumption: <20W (IR Off: <24W, IR On: <40W, Motor IR On: <56W)

Battery: 10.05Ah / 109.45Wh (9 Hours from Full Charge at Lowest Power Consumption)

Operating Conditions: -20°C to +55°C / Less Than 90% RH

Ingress Protection: IP66

Weather Resistance: Yes

Vandal Resistance: N/A

Series: Professional Series

Camera Type: PTZ

Housing: Metal

Pan/Tilt/Rotation: Pan: 0°–360° / Tilt: 15°–90° / Rotation: 0°–360°

Tri-Axis Mounting: No

ePoE: No

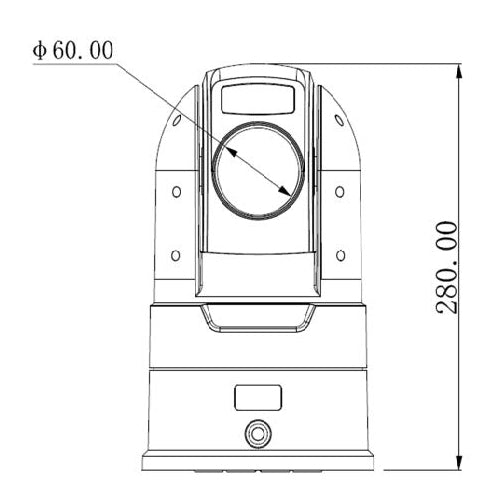

Dimensions: Ø171 × 280 mm

Net Weight: 4.87 kg

Smart Scene Adaptive (SSA): Yes

Warranty: 4 Years

Shipping Width: 175 mm

Shipping Height: 280 mm

Shipping Depth: 175 mm

Shipping Weight: 4.87 kg
