Professional Series 16 Channel 8.0MP HDCVI AI Digital Video Recorder

CVR16PRO5

Regular price $918.50

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

Transform your existing low-resolution surveillance system into an Ultra HD AI system with the Securview Professional Series. Upgrade coaxial based systems to HDCVI (high definition composite video interface) and gain access to AI functionality*, 4K recording at 7fps and cross compatibility for IP, analogue and other coax technologies. These DVRs are fantastic for existing coax cable system upgrades and for upgrades on a budget that wish to use existing cameras.

Product features:
• Records 16 channels up to 8.0MP (3840 x 2160) at 7fps
• Supports H.265+ high efficient video compression
• 2 x SATA ports up to 16TB, max. 32TB HDD capacity
• Support for HDCVI, Analogue and IP video inputs
• Add 16 additional IP channels up to 8.0MP to allow a total of 32 cameras*
• Identify people with up to 2 channels of face recognition (BNC inputs only)
• AI person and vehicle detection using smart motion detection or intrusion/tripwire rules
• Receive face recognition & people/vehicle detection alerts to your device
• Alarm system integration with 16 channel input and 3 relay outputs
• Configure iOS/Android remote view in seconds via QR code
• HDMI (up to 4K, 3840 x 2160) & VGA simultaneous video output
• Backup via external USB device or local network

*Addition of IP Cameras beyond 16 channels disables the DVR's AI / IVS functions.
**IP cameras with built-in AI cannot use AI functions on HDCVI DVRs.
*DVRs include 4 year warranty; HDDs include 3 year warranty

Main Processor: Embedded Processor

Operating System: Embedded Linux

Video Input: 16 Channel BNC

Audio In/Out: 4 Channel Input / 1 Channel Output (RCA)

Two-Way Talk: Reuses Channel 1 Audio Input/Output

Supported Video Inputs: HDCVI / HDTVI / AHD / Composite / IP

Coax Input Support: 16 Channels up to 8.0MP/7fps (HDCVI), 960H/25fps (Analogue)

IP Input Support: 16 Channels

IP Input Max. Resolution: 8.0MP

IP Input Max. Bandwidth: 128Mbps

Video Output: 1 × HDMI / 1 × VGA

Display Resolution: 3840 × 2160 to 1280 × 720

Display Split: 1 / 4 / 8 / 9 / 16 (25 / 32 with IP Extension Mode Enabled)

OSD: Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording

Maximum Recording Resolution: 8.0MP (3840 × 2160) / 4.0MP (2560 × 1440) / 1080p (1920 × 1080)

Frame Rate (Main): 4K 1–7fps / 6.0MP 1–10fps / 5MP 1–12fps / 4MP/3MP 1–15fps / 1080p 1–25fps

Frame Rate (Sub): 960H 1–15fps / D1 1–25fps

Frame Rate (Third): N/A

Video Compression: AI Coding / H.265+ / H.265 / H.264+ / H.264

Bit Rate: 32Kbps–6144Kbps Per Channel

Record Modes: Manual / Schedule (General, Continuous) / Motion Detection / Video Loss / Tampering / Alarm / Stop

Record Interval: 1–60 min (Default 60 min) / Pre-Record 1–30 sec / Post-Record 10–300 sec

AI Functions: Face Recognition / Perimeter Protection / Smart Motion Detection (SMD+)

Face Recognition Performance: Max. 12 Face Pictures Per Second / Approx. 2 Channels Face Recognition (BNC Inputs Only)

Stranger Mode: Detects Stranger Faces Not in Database

AI Search (Face Recognition): Up to 8 Target Face Images at the Same Time

Database Management: Up to 10 Face Databases with 20,000 Face Images Total

Database Application: Each Database Can Be Applied to Video Channels Independently

Trigger Events (Face Recognition): Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.

Perimeter Protection Performance: 2 Channels / 10 IVS Rules Per Channel

AI Search (Perimeter Protection): Human / Vehicle Classification

Object Classification: Human / Vehicle Secondary Recognition for Tripwire and Intrusion

SMD+ Performance: 16 Channels

AI Search (SMD+): Human / Vehicle Classification

Alarm Input / Output: 16 Channel Input / 3 Relay Output

Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer, Screen Tips

Video Detection: Motion Detection, 396 MD Zones (22 × 18), Video Loss, Tampering, Diagnosis

Playback Sync: 1 / 4 / 9 / 16

Search Modes: Time/Date, Alarm, Motion Detection, Exact Search (Accurate to Second)

Backup Modes: USB Device / Network

Ethernet: 1 × RJ-45 Port (1000M)

Network Functions: HTTP, HTTPS, IPv4/IPv6, TCP/IP, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, Alarm Server, P2P, IP Search

Max. User Access: 128 Users

Remote View: iOS (iPhone, iPad) / Android Devices

Internal HDD: 2 × SATA Ports, Up to 16TB Each / Max. 32TB Total Capacity

USB Interface: 2 Ports – 1 × USB 2.0 / 1 × USB 3.0

Auxiliary Inputs: 1 × RS-485 Port (For PTZ)

Power Supply: 12V DC / 5A

Power Consumption: <15W (Without HDD)

Operating Environment: -10°C to +55°C / 10%–90% RH

Rackmountable: No

Rackmount Units: 1RU

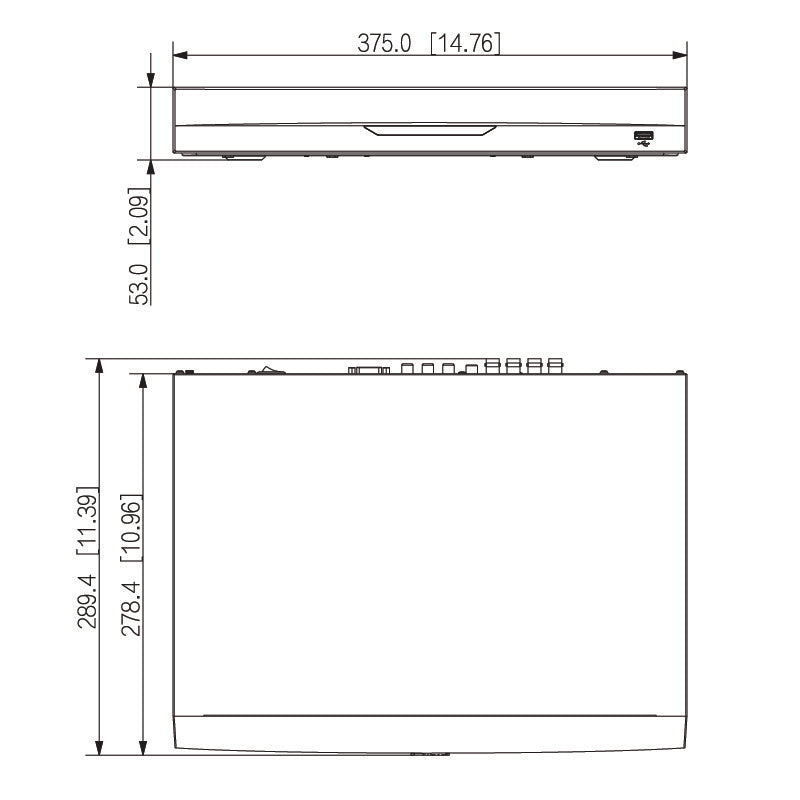

Dimensions: 375 × 288 × 53 mm

Weight: 1.8 kg (Without HDD)

Warranty: 4 Years

Shipping Width: 433 mm

Shipping Height: 366 mm

Shipping Depth: 141 mm

Shipping Weight: 3.00 kg
