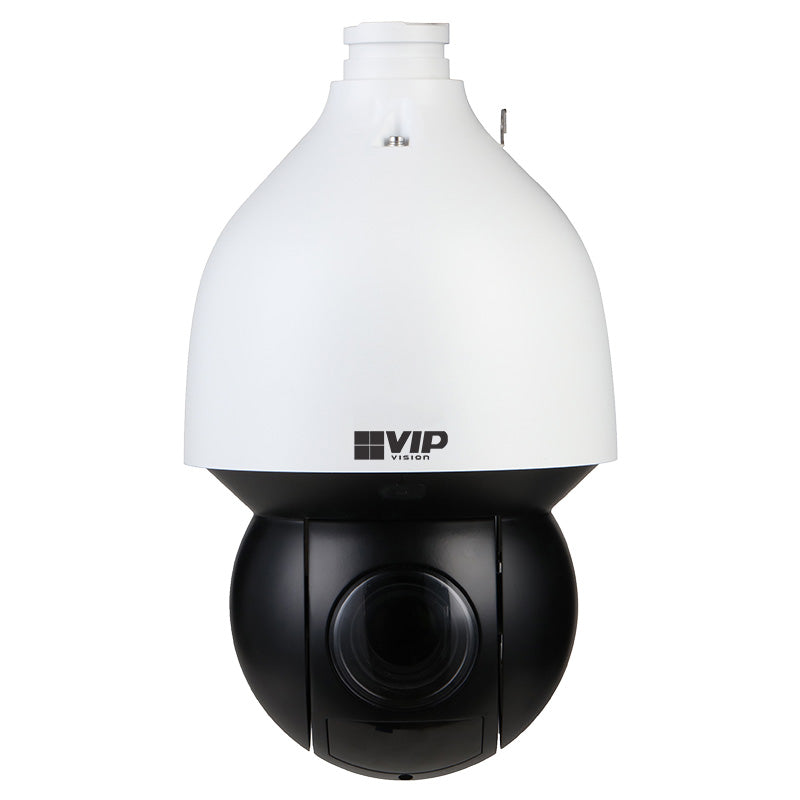

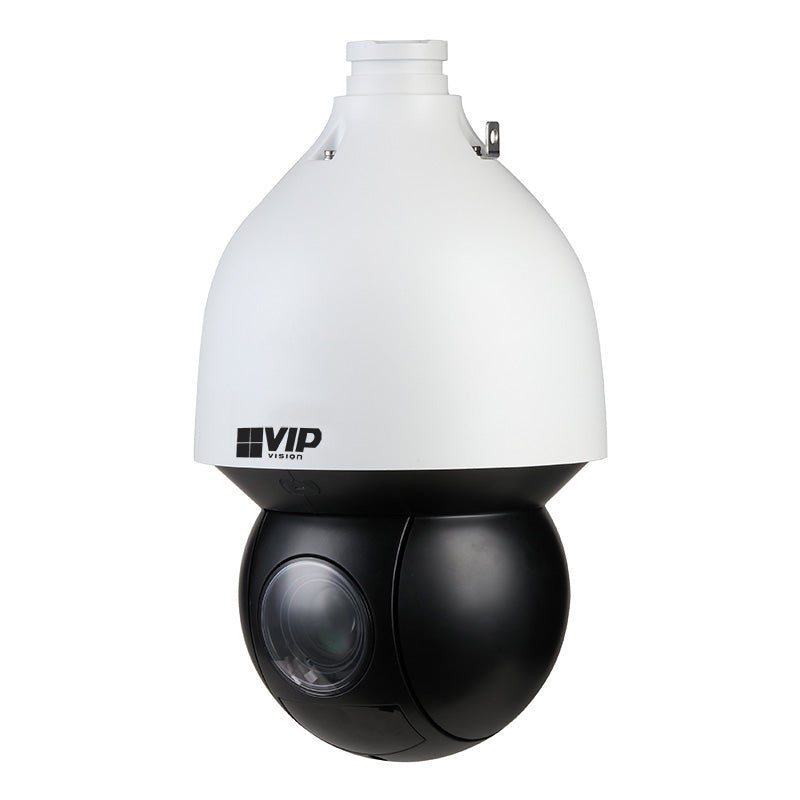

Professional AI Series 8.0MP 25x Zoom PTZ Dome v2

Image Sensor: 1/1.8" 8.0MP Starvis™ CMOS

Max. Resolution: 8.0 Megapixel

Effective Pixels: 3840 × 2160

RAM / ROM: 1GB / 4GB

Min. Illumination: 0.005 Lux at F1.6 (Colour) / 0.0005 Lux at F1.6 (B&W) / 0 Lux (IR Light On)

S/N Ratio: N/A

Infrared System: 4 × Infrared LEDs, 150 m Range, Zoom Priority / Auto / Manual / Smart IR On/Off Control

Lens Type: Motorised Varifocal

Lens / Iris: 5.4–135 mm F1.6–F4.0 Motorised Lens

Field of View: Horizontal: 61.6°–3.6° / Vertical: 35.7°–2° / Diagonal: 66.6°–4° (25x Optical Zoom)

Focus: Auto / Semi-Auto / Manual / 0.5–7 m Min. Focus Distance

Detect (25px/m): 2700 m

Observe (63px/m): 1066 m

Recognise (125px/m): 540 m

Identify (250px/m): 270 m

Pan / Tilt Range: Pan: 0°–360° (Endless) / Tilt: -15°–90° / Auto Flip: 180°

PTZ Speed: Preset: Pan: 400°/s / Tilt: 300°/s / Manual: Pan: 300°/s / Tilt: 200°/s

Modes / Presets: Up to 300 Presets / 5 Patterns / 8 Tours / 5 Scanning / Auto Pan / Auto Scan

Start-up Action: Auto-Restore to Previous PTZ/Lens Status

Resolution: 8.0MP (3840 × 2160) to CIF (352 × 288)

Frame Rate (Main): 8.0MP (1–25fps)

Frame Rate (Sub): D1 (1–25fps)

Frame Rate (Third): 1080p (1–25fps)

Video Compression: H.265+ / H.265 / H.264+ / H.264 / H.264B / H.264H / MJPEG

Bit Rate: H.265 / H.264: 32–8192Kbps

Bit Rate Control: Constant Bit Rate (CBR) / Variable Bit Rate (VBR)

Day/Night: Auto (ICR) / Colour / B&W

Lighting Compensation: BLC / HLC / WDR (120dB)

Smart Scene Adaptive (SSA): No

White Balance: Auto / Indoor / Outdoor / Tracking / Manual / Sodium Lamp / Natural Light / Street Lamp

Gain Control: Auto / Manual

Noise Reduction: 2D / 3D DNR

Picture Control: Flip 0° / 180°

Face Recognition: N/A

Face Capture: N/A

Perimeter Protection: Tripwire & Intrusion (Add Recognition of Humans & Vehicles)

Auto Tracking: Support

Metadata: Supports Human, Motor Vehicles and Non-Motor Vehicle Search / Supports Face Image Capture and Footage Search by Face Image & Facial Attributes

People Counting: N/A

Heat Map: N/A

IVS Functions: Abandoned/Missing Object / Motion Detection / Region of Interest / Electronic Image Stabilisation / Privacy Masking (24 Zones) / Defog

Event Triggers: Motion Detection / Video Tampering / Audio Detection / Scene Changing / Network Disconnection / IP Address Conflict / Illegal Access / Storage Anomaly

Region of Interest: Support

Optical Defog: Support

Digital Zoom: 16x

Privacy Masking: Up to 24 Areas / Up to 8 Areas in the Same View

Image Stabilisation: Support

Ethernet: RJ-45 (10/100Base-T)

Protocol: IPv4 / IPv6 / HTTP / HTTPS / 802.1x / QoS / FTP / SMTP / UPnP / SNMPv1/v2c/v3 (MIB-2) / DNS / DDNS / NTP / RTSP / RTP / TCP / UDP / IGMP / ICMP / DHCP / PPPoE / ARP / RTCP

Streaming Method: Unicast / Multicast

Max. User Access: 20 Users

Video Interface: N/A

Audio Interface: 1 Input / 1 Output / Compression: G.711A / G.711Mu / G.726 / AAC / G.722.1 / G.723 / G.729 / PCM / MPEG2-Layer2

Alarm Interface: 2 Inputs / 1 Output

RS485: N/A

Edge Storage: FTP / MicroSD Card (256G) / P2P

Interoperability: ONVIF Profile S&G&T / CGI

Power Supply: 24VDC / 3A (±25%) / PoE+ (802.3at)

Power Consumption: <11W / <20W (IR On)

Operating Conditions: -40°C to +70°C / Less Than 95% RH

Ingress Protection: IP67

Vandal Resistance: IK10

Series: Professional AI Series

Camera Type: PTZ

Housing: Metal

Pan/Tilt/Rotation: Pan: 0°–360° / Tilt: -15°–90°

ePoE: N/A

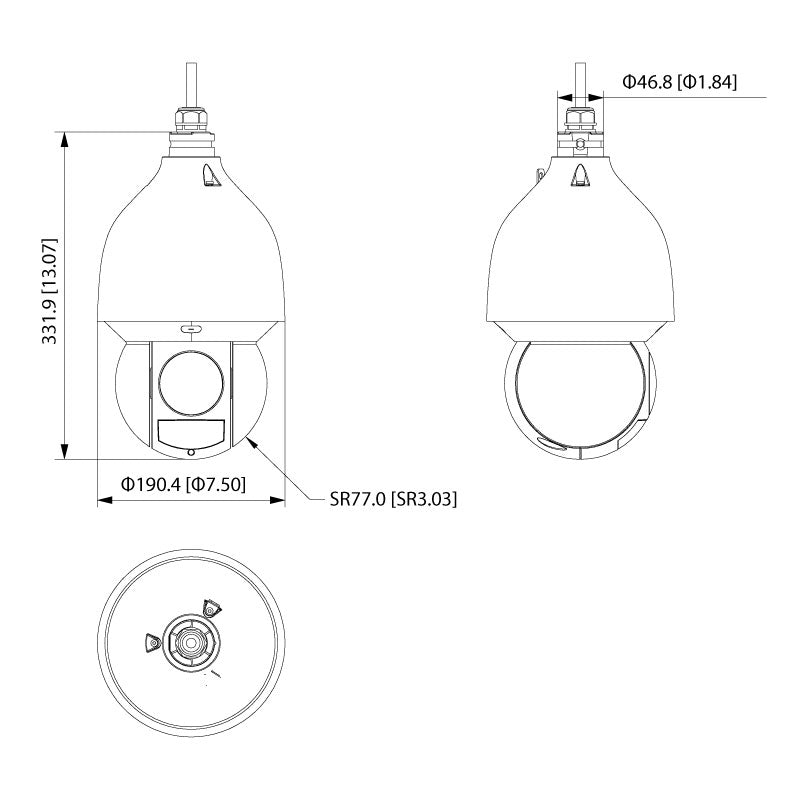

Dimensions: Ø190 × 332 mm

Net Weight: 4.7 kg

Intelligent Search: Via NVR Smart Search / Search Tripwire/Intrusion Events by People or Vehicle

SMD+: Filter Motion Detection Alarms, Recognises Humans and Vehicles from Other Moving Objects

Surge Protection: TVS 6000V Lightning Protection / Surge Protection

Warranty: 4 Years

Shipping Width: 269 mm

Shipping Height: 269 mm

Shipping Depth: 521 mm

Shipping Weight: 8.18 kg
