Professional AI Series 6.0MP Fixed Deterrence Turret Pro

Image Sensor: 1/1.8" CMOS

Max. Resolution: 6.0 Megapixel

Effective Pixels: 3288 (H) × 1850 (V)

RAM / ROM: 256MB / 2G

Min Illumination: 0.0005 lux@F1.0 (Colour, 30 IRE) / 0.0004 lux@F1.0 (B/W, 30 IRE) / 0 lux (Illumination On)

S/N Ratio: >56dB

Infrared System: 1 × Infrared LED, 30 m Range, Auto/Manual On/Off Control

White Light LED: 2 × Spotlight (Warm White), 30 m Range, Auto/Manual On/Off Control

Active Deterrence: 1 × Red & Blue Strobe, 1 × Loudspeaker Siren

Lens Type: Fixed Lens

Lens / Iris: 2.8 mm F1.0 Fixed Focal Lens with Fixed Iris

Field of View: Horizontal: 109°, Vertical: 59°, Diagonal: 131°

Focus: Auto Focus / 3.2 m Min. Focus Distance

Detect (25px/m): 70 m

Observe (63px/m): 28 m

Recognise (125px/m): 14 m

Identify (250px/m): 7 m

Resolution: 6MP (3288 × 1850 / 3200 × 1800) to CIF (352 × 288 / 352 × 240)

Frame Rate (Main): 6.0MP (1–25fps)

Frame Rate (Sub): 1080p (1–25fps)

Frame Rate (Third): 1080p (1–25fps)

Video Compression: H.265+ / H.264 / H.264+ / H.264 / MJPEG

Bit Rate: H.264: 3–16384kbps / H.265: 3–16384kbps

Bit Rate Control: Constant Bit Rate (CBR) / Variable Bit Rate (VBR) / Average Bit Rate (ABR)

Day/Night: Auto (ICR) / Colour / B/W

Lighting Compensation: BLC / HLC / WDR (120dB)

Smart Scene Adaptive (SSA): SSA

White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control: Auto

Noise Reduction: 3D NR

Picture Control: Mirror / Flip (0°, 90°, 180°, 270°)

Intelligent Functions: Motion Detection (4 Zones), Region of Interest (4 Zones), Privacy Masking (4 Zones), Smart Illumination, Defog, Object Abandoned / Missing

Perimeter Protection: People and Vehicle Detection Using Tripwire or Intrusion Rules

Face Detection: N/A

Face Attributes: N/A

People Counting: N/A

Heat Map: N/A

Event Trigger: Motion Detection, Perimeter Protection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly

Intelligent Search: Search People or Vehicle Detection Events (Perimeter Protection), Search by Attributes, Such as Clothing/Vehicle Colour and Vehicle Type (AI Quick Pick)

Ethernet: RJ-45 (10/100Base-T)

Protocol: IPv4 / IPv6 / HTTP / TCP / UDP / ARP / RTP / RTSP / RTCP / RTMP / SMTP / FTP / SFTP / DHCP / DNS / DDNS / QoS / UPnP / NTP / Multicast / ICMP / IGMP / NFS / SAMBA / PPPoE / SNMP

Streaming Method: Unicast / Multicast

Max. User Access: 20 Users (Total Bandwidth: 64MB)

Video Interface: N/A

Audio Interface: Built-in Mic & Built-in Speaker, 1 Audio In/Output (RCA) / Audio Compression - PCM / G.711a / G.711Mu / G.726 / G.723

Alarm Interface: 1 Channel In: 5mA 3–5VDC / 1 Channel Out: 300mA 12VDC

RS485: N/A

Edge Storage: MicroSD Card (Up to 512GB) / NAS / FTP / SFTP

Interoperability: ONVIF (Profile S, Profile G, Profile T) / P2P / CGI

Power Supply: 12VDC / PoE (820.3af)

Power Consumption: <4.1W (12VDC) / <6W (PoE)

Operating Conditions: -40°C to +60°C / ≤95% RH

Ingress Protection: IP67

Vandal Resistance: N/A

Series: N/A

Camera Type: N/A

Housing: Metal

Pan/Tilt/Rotation: Pan: 0°–360° / Tilt: 0°–78° / Rotation: 0°–360°

ePoE: N/A

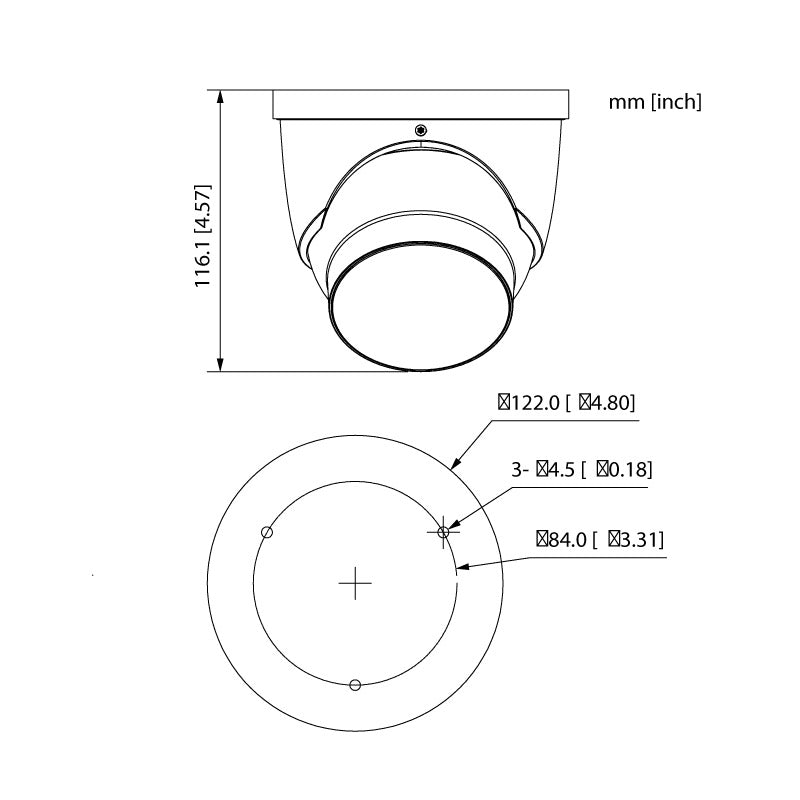

Dimensions: Φ122 × 116 mm

Net Weight: 0.80 kg

Category: Network Surveillance

Warranty: 4 Years

Shipping Width: 122 mm

Shipping Height: 122 mm

Shipping Depth: 136 mm

Shipping Weight: 0.90 kg
