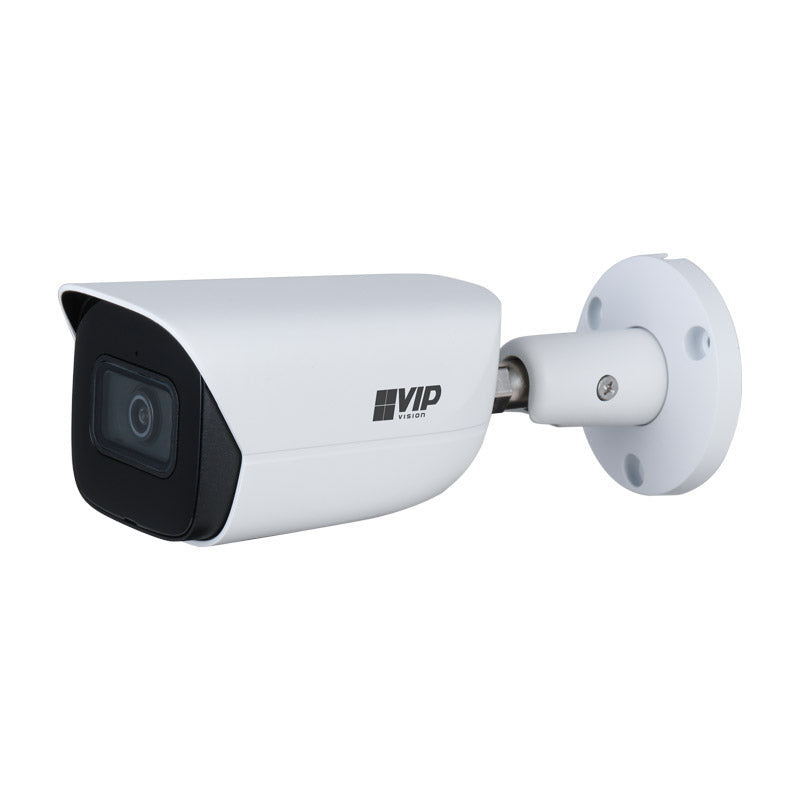

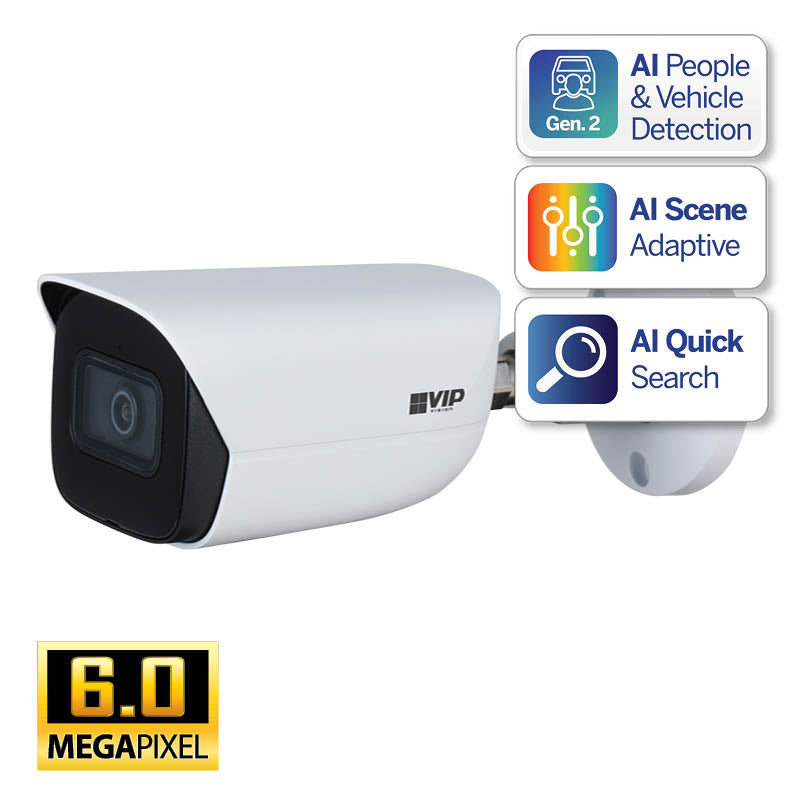

Professional AI Series 6.0MP Fixed Bullet

Image Sensor: 1/2.7" 6.0MP Progressive Scan CMOS

Max. Resolution: 6.0 Megapixel

Effective Pixels: 3072 × 2048

RAM / ROM: 1GB / 128MB

Min. Illumination: 0.005 Lux at F1.4 (Colour)

S/N Ratio: >56dB

Infrared System: 2 × Infrared LEDs, 50 m Range, Auto / Manual On/Off Control

Lens Type: Fixed

Lens / Iris: 2.8 mm F1.6 Fixed Lens

Field of View: Horizontal: 97° / Vertical: 71°

Focus: Fixed / 0.9 m Min. Focus Distance

Detect (25px/m): 64 m

Observe (63px/m): 25 m

Recognise (125px/m): 13 m

Identify (250px/m): 6 m

Resolution: 6.0MP (3072 × 2048) to CIF (352 × 288)

Frame Rate (Main): 6.0MP (1–25fps)

Frame Rate (Sub): D1 (1–25fps)

Frame Rate (Third): 1080p (1–25fps)

Video Compression: H.265 / H.264 / H.264H / H.264B / MJPEG

Bit Rate: H.265: 3–8192Kbps / H.264: 3–8192Kbps

Bit Rate Control: Constant Bit Rate (CBR) / Variable Bit Rate (VBR)

Day/Night: Auto (ICR) / Colour / B&W

Lighting Compensation: BLC / HLC / WDR (120dB) / AI SSA

Smart Scene Adaptive (SSA): Yes

White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control: Auto

Noise Reduction: 3D DNR

Picture Control: Mirror / Flip (0° / 90° / 180° / 270°)

Intelligent Functions: Motion Detection (4 Zones), Region of Interest (4 Zones), Privacy Masking (4 Zones), Smart Infrared

Perimeter Protection: Tripwire & Intrusion (Add Recognition of Humans & Vehicles)

Face Detection: N/A

Face Attributes: N/A

People Counting: N/A

Heat Map: N/A

Event Trigger: Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly

Intelligent Search: Via NVR Smart Search / Search Tripwire/Intrusion Events by People or Vehicle

Ethernet: RJ-45 (10/100Base-T)

Protocol: IPv4 / IPv6 / HTTP / TCP / UDP / ARP / RTP / RTSP / RTCP / RTMP / SMTP / FTP / SFTP / DHCP / DNS / DDNS / QoS / UPnP / NTP / Multicast / ICMP / IGMP / NFS / SAMBA / PPPoE / SNMP

Streaming Method: Multicast

Max. User Access: 20 Users

Video Interface: N/A

Audio Interface: 1 Input (RCA Port) / 1 Output (RCA Port) / Built-In Mic / Audio Compression: G.711a / G.711Mu / G726

Alarm Interface: 1 Channel In: 5mA 5VDC / 1 Channel Out: 300mA 12VDC

RS485: N/A

Edge Storage: MicroSD Card (Up to 256GB) / NAS

Interoperability: ONVIF / P2P / CGI / Milestone / Genetec

Power Supply: 12VDC / PoE (802.3af)

Power Consumption: <6.5W

Operating Conditions: -30°C to +60°C / ≤95% RH

Ingress Protection: IP67

Vandal Resistance: N/A

Series: Professional AI Series

Camera Type: Bullet

Housing: Metal

Pan/Tilt/Rotation: Pan: 0°–360° / Tilt: 0°–78° / Rotation: 0°–360°

ePoE: No

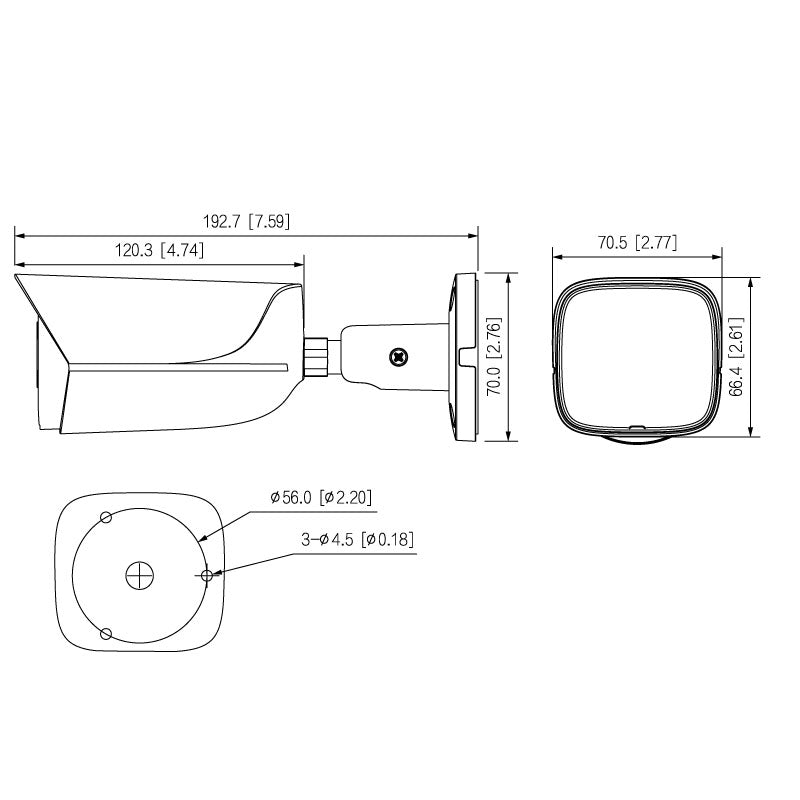

Dimensions: 192.7 × 70.5 × 66.4 mm

Net Weight: 0.59 kg

Category: Network Surveillance

Warranty: 4 Years

Shipping Width: 31 mm

Shipping Height: 117 mm

Shipping Depth: 15 mm

Shipping Weight: 0.80 kg
