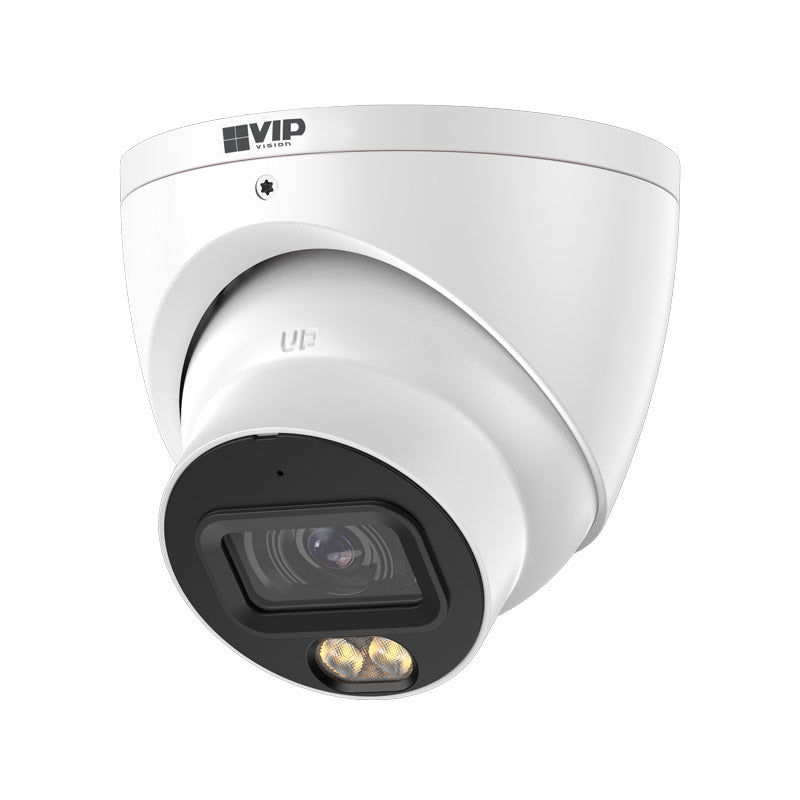

Professional AI Series 5.0MP Fixed Turret Pro

Image Sensor: 1/1.8" 5.0MP Progressive Scan CMOS

Max. Resolution: 5.0 Megapixel

Effective Pixels: 2960 × 1668

RAM / ROM: 256MB / 128MB

Min. Illumination: 0.0005 Lux at F1.0 / 0 Lux (IR)

S/N Ratio: >56dB

Infrared System: No Infrared Illumination / 2 × Warm LED Lights (30 m Range), Auto / Manual On/Off Control

Lens Type: Fixed

Lens / Iris: 2.8 mm F1.0 Fixed Focal Lens with Fixed Iris

Field of View: Horizontal: 112° / Vertical: 60°

Focus: Auto Focus / 1.7 m Min. Focus Distance

Detect (25px/m): 58 m

Observe (63px/m): 23 m

Recognise (125px/m): 12 m

Identify (250px/m): 6 m

Resolution: 5.0MP (2960 × 1668) to CIF (352 × 288 / 352 × 240)

Frame Rate (Main): 5.0MP (1–20fps) / 4.0MP (1–25fps)

Frame Rate (Sub): D1 (1–25fps)

Frame Rate (Third): N/A

Video Compression: H.265+ / H.265 / H.264+ / H.264 / H.264B / MJPEG

Bit Rate: H.265: 6–16384Kbps / H.264: 6–16384Kbps

Bit Rate Control: Constant Bit Rate (CBR) / Variable Bit Rate (VBR)

Day/Night: Colour / B&W

Lighting Compensation: BLC / HLC / WDR

Smart Scene Adaptive (SSA): No

White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control: Auto / Manual

Noise Reduction: 3D NR

Picture Control: Mirror / Flip (0° / 90° / 180° / 270°) (Support 90°/270° with 4.0MP Resolution and Lower)

Intelligent Functions: Motion Detection (4 Zones), Region of Interest (4 Zones), Privacy Masking (4 Zones), Smart Infrared

Perimeter Protection: Smart Motion Detection (SMD+): People and Vehicle Detection Using Motion Detection / Perimeter Protection: People and Vehicle Detection Using Tripwire or Intrusion Rules

Face Detection: N/A

Face Attributes: N/A

People Counting: N/A

Heat Map: N/A

Event Trigger: Motion Detection, Video Tampering, Audio Detection, No SD Card, SD Card Full, SD Card Error, Network Disconnection, IP Conflict, Illegal Access, Voltage Detection

Intelligent Search: Via NVR Smart Search / Search Tripwire/Intrusion Events by People or Vehicle

Ethernet: RJ-45 (10/100 Base-T)

Protocol: IPv4 / IPv6 / HTTP / TCP / UDP / ARP / RTP / RTSP / RTCP / RTMP / SMTP / FTP / SFTP / DHCP / DNS / DDNS / QoS / UPnP / NTP / Multicast / ICMP / IGMP / NFS / PPPoE / P2P / Bonjour / Auto Registration

Streaming Method: Unicast / Multicast

Max. User Access: 20 Users

Video Interface: N/A

Audio Interface: Built-In Mic / Audio Compression: G.711a / G.711Mu / G726 / PCM

Alarm Interface: N/A

RS485: N/A

Edge Storage: MicroSD Card (Up to 256GB) / NAS / FTP / SFTP

Interoperability: ONVIF / P2P / CGI

Power Supply: 12VDC / PoE (802.3af)

Power Consumption: <5.3W / 6.4W (PoE)

Operating Conditions: -40°C to +60°C / ≤95% RH, Non-Condensing

Ingress Protection: IP67

Vandal Resistance: N/A

Series: Professional AI Series

Camera Type: Turret

Housing: Metal

Pan/Tilt/Rotation: Pan: 0°–360° / Tilt: 0°–78° / Rotation: 0°–360°

ePoE: N/A

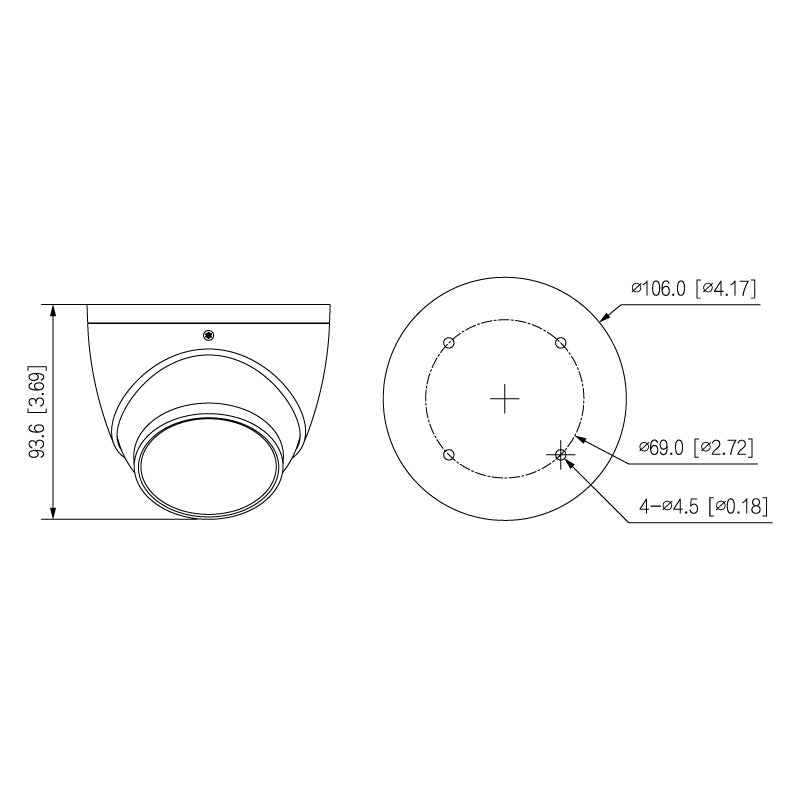

Dimensions: Ø106 × 94 mm

Net Weight: 0.59 kg

Warranty: 4 Years

Shipping Width: 156 mm

Shipping Height: 156 mm

Shipping Depth: 137 mm

Shipping Weight: 0.70 kg
