Professional AI Series 4.0MP Wide-Angle Bullet

Image Sensor: 1/2.7" CMOS

Max. Resolution: 4.0 Megapixel

Effective Pixels: 2880 × 1620

RAM / ROM: 512MB / 128MB

Min. Illumination: 0.01 Lux at F1.6 (Colour) / 0.001 Lux at F2.0 (B&W, 30 IRE) / 0 Lux (IR On)

S/N Ratio: >56dB

Infrared System: 2 × Infrared LEDs, 20 m Range, Auto / Manual On/Off Control

Lens Type: Fixed

Lens / Iris: 2.1 mm F2.0 Fixed Focal Lens

Field of View: 180°

Focus: 0.6 m Min. Focus Distance

Detect (25px/m): 52.0 m

Observe (63px/m): 20.8 m

Recognise (125px/m): 10.4 m

Identify (250px/m): 5.2 m

Resolution: 4.6MP (2880 × 1620) / 4.0MP (2688 × 1520)

Frame Rate (Main): 4.6MP (1–20fps) / 4.0MP (1–25fps)

Frame Rate (Sub): D1 (1–25fps)

Frame Rate (Third): 1080p (1–25fps)

Video Compression: H.265 / H.264 / H.264H / H.264B / MJPEG

Bit Rate: H.264/H.265: 3–8192Kbps

Bit Rate Control: Constant Bit Rate (CBR) / Variable Bit Rate (VBR)

Day/Night: Auto (ICR) / Colour / B&W

Lighting Compensation: BLC / HLC / WDR (120dB)

Smart Scene Adaptive (SSA): No

White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control: Auto / Manual

Noise Reduction: 3D NR

Picture Control: Mirror / Flip (0° / 90° / 180° / 270°)

Intelligent Functions: Motion Detection (4 Zones), Region of Interest (4 Zones), Privacy Masking (4 Zones), Smart Infrared, Abandoned Object, Moving Object

Perimeter Protection: Tripwire & Intrusion (Add Recognition of Humans & Vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection

Face Detection: N/A

Face Attributes: N/A

People Counting: N/A

Heat Map: N/A

Event Trigger: Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access

Intelligent Search: Via NVR Smart Search / Search Tripwire/Intrusion Events by People or Vehicle / Search Footage by Face Image and Face Attributes

Ethernet: RJ-45 (10/100Base-T)

Protocol: IPv4/IPv6 / HTTP / HTTPS / SSL / TCP/IP / UDP / UPnP / ICMP / IGMP / SNMP / RTSP / RTP / SMTP / NTP / DHCP / DNS / PPPoE / DDNS / FTP / IP Filter / QoS / Bonjour / 802.1x

Streaming Method: Unicast / Multicast

Max. User Access: 20 Users

Video Interface: N/A

Audio Interface: 1 Input (RCA Port) / 1 Output (RCA Port) / Audio Compression: G.711a / G.711Mu / G726 / G.723

Alarm Interface: 1 Channel In: 5mA 3–5VDC / 1 Channel Out: 1,000mA 30VDC or 500mA 50VDC

RS485: N/A

Edge Storage: MicroSD Card (Up to 256GB) / NAS / FTP / SFTP

Interoperability: ONVIF / PSIA / CGI

Power Supply: 12VDC / PoE

Power Consumption: <6.5W

Operating Conditions: -40°C to +60°C / ≤95% RH

Ingress Protection: IP67

Vandal Resistance: N/A

Series: Professional AI Series

Camera Type: Bullet

Housing: Metal

Pan/Tilt/Rotation: Pan: 0°–360° / Tilt: 0°–90° / Rotation: 0°–360°

ePoE: No

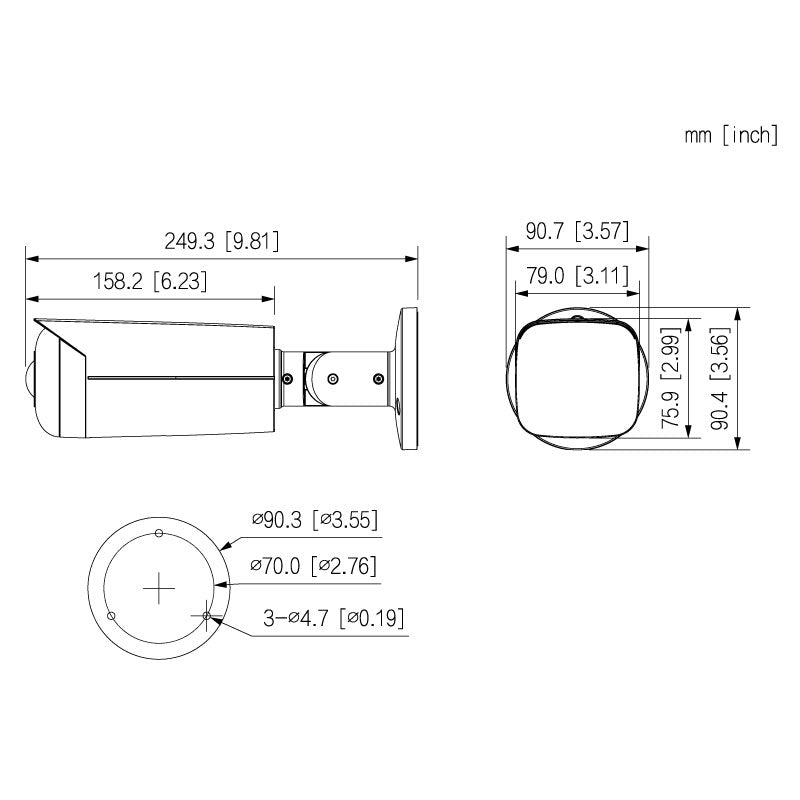

Dimensions: 249.3 × 90.7 × 90.4 mm

Net Weight: 820 g

Warranty: 4 Years

Shipping Width: 160 mm

Shipping Height: 150 mm

Shipping Depth: 310 mm

Shipping Weight: 1.20 kg
