Professional AI Series 4.0MP Fixed Wedge Dome

VSIPP-4DIRF-I2

Regular price $210.00

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

The Professional AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. When used in conjunction with a VIP Vision NVR, person and vehicle events can be isolated in footage playback to improve surveillance efficiency.

Camera features:
• Stream up to 4.0MP (2688 x 1520) at 25fps
• 2.8mm fixed lens with 102° viewing angle
• H.265 encoding for efficient storage & streaming
• Up to 30m infrared range; true day/night (auto ICR)
• MicroSD slot for recording at the edge up to 256GB
• AI powered perimeter protection & smart motion detection (SMD 4.0)
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• AI weather and anti-flicker scene self-adaption
• Back/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• IP67 weather rated housing for outdoor use
• IK10 vandal resistant metal housing

Image Sensor: 1/3" 4.0MP Progressive Scan CMOS

Max. Resolution: 4.0 Megapixel

Effective Pixels: 2688 × 1520

RAM / ROM: 512MB / 128MB

Min. Illumination: 0.005 Lux at F1.6 (Colour)

S/N Ratio: N/A

Infrared System: 2 × Infrared LEDs, 30 m Range, Auto / Manual On/Off Control

Lens Type: Fixed

Lens / Iris: 2.8 mm Fixed Focal Lens with Fixed Iris

Field of View: Horizontal: 102° / Vertical: 54°

Focus: Auto Focus / 0.9 m Min. Focus Distance

Detect (25px/m): 64 m

Observe (63px/m): 25 m

Recognise (125px/m): 13 m

Identify (250px/m): 6 m

Resolution: 4.0MP (2688 × 1520) to CIF (352 × 288)

Frame Rate (Main): 4.0MP (1–25fps)

Frame Rate (Sub): D1 (1–25fps)

Frame Rate (Third): 1080p (1–25fps)

Video Compression: H.265 / H.264 / H.264H / H.264B / MJPEG

Bit Rate: H.265: 3–8192Kbps / H.264: 3–8192Kbps

Bit Rate Control: Constant Bit Rate (CBR) / Variable Bit Rate (VBR)

Day/Night: Auto (ICR) / Colour / B&W

Lighting Compensation: BLC / HLC / WDR (120dB) / AI SSA

Smart Scene Adaptive (SSA): Yes

White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control: Auto

Noise Reduction: 3D DNR

Picture Control: Mirror / Flip (0° / 90° / 180° / 270°) (Support 90°/270° with 2.0MP Resolution)

Intelligent Functions: Motion Detection (4 Zones), Region of Interest (4 Zones), Privacy Masking (4 Zones), Smart Infrared

Perimeter Protection: Tripwire & Intrusion (Add Recognition of Humans & Vehicles)

Face Detection: N/A

Face Attributes: N/A

People Counting: N/A

Heat Map: N/A

Event Trigger: Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly

Intelligent Search: Via NVR Smart Search / Search Tripwire/Intrusion Events by People or Vehicle

Ethernet: RJ-45 (10/100Base-T)

Protocol: IPv4 / IPv6 / HTTP / HTTPS / TCP / UDP / ARP / RTP / RTSP / RTCP / RTMP / SMTP / FTP / SFTP / DHCP / DNS / DDNS / QoS / UPnP / NTP / Multicast / ICMP / IGMP / NFS / PPPoE / 802.1x / SNMP

Streaming Method: Unicast / Multicast

Max. User Access: 20 Users

Video Interface: N/A

Audio Interface: Built-In Mic / Audio Compression: G.711a / G.711Mu / G726 / PCM

Alarm Interface: 1 Channel In: 5mA 5VDC / 1 Channel Out: 300mA 12VDC

RS485: N/A

Edge Storage: MicroSD Card (Up to 256GB) / NAS / FTP / SFTP

Interoperability: ONVIF / P2P / CGI / Milestone / Genetec

Power Supply: 12VDC / PoE (802.3af)

Power Consumption: <7.2W

Operating Conditions: -40°C to +60°C / ≤95% RH

Ingress Protection: IP67

Vandal Resistance: IK10

Series: Professional AI Series

Camera Type: Wedge Dome

Housing: Metal

Pan/Tilt/Rotation: Pan: -30°–35° / Tilt: 0°–70° / Rotation: 0°–355°

ePoE: No

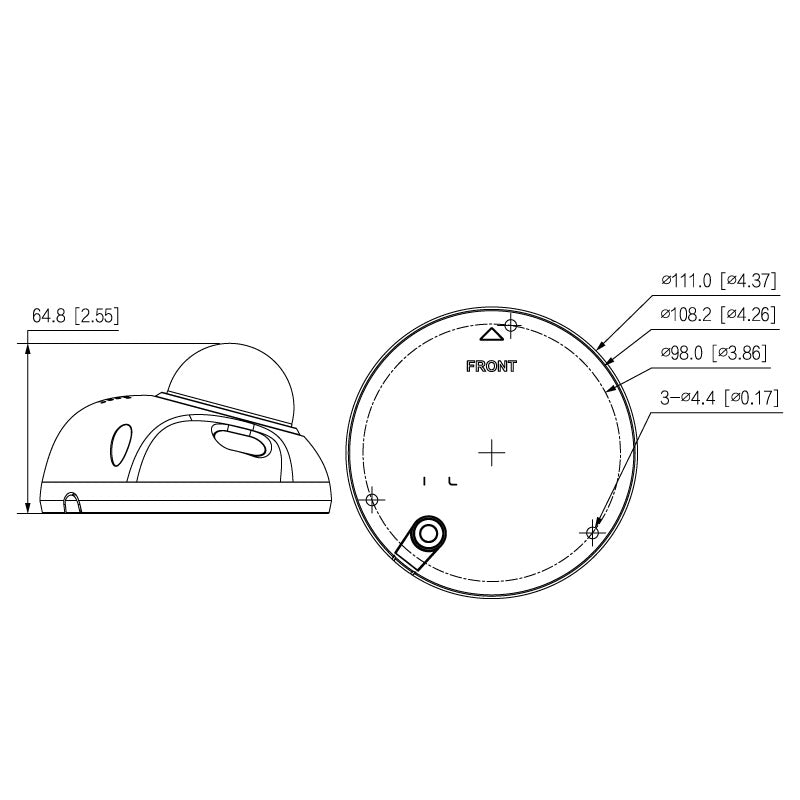

Dimensions: Ø111.0 × 64.8 mm

Net Weight: 0.42 kg

Warranty: 4 Years

Shipping Width: 137 mm

Shipping Height: 115 mm

Shipping Depth: 138 mm

Shipping Weight: 0.60 kg
