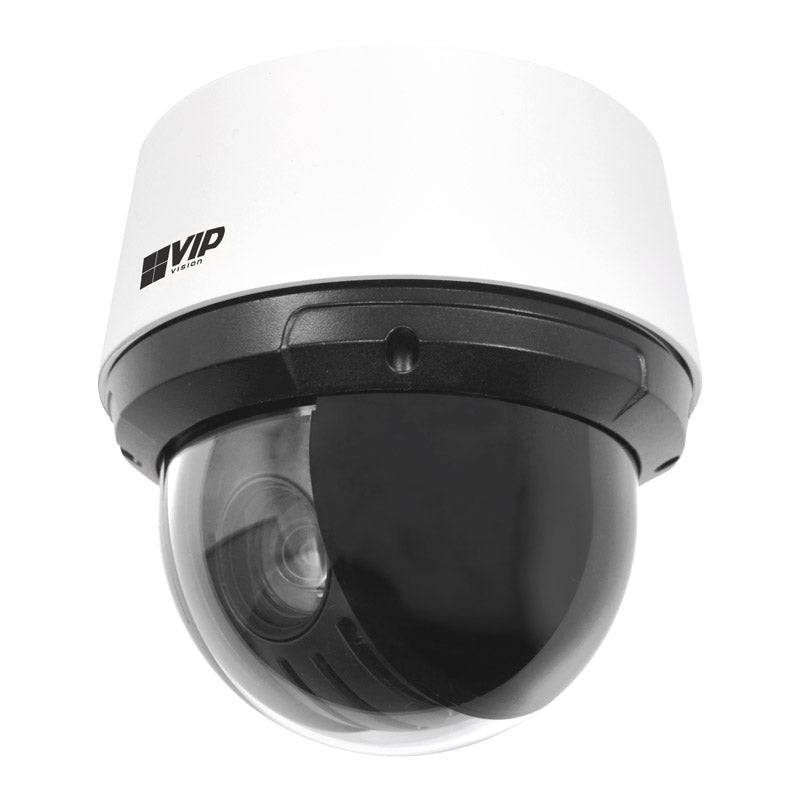

Professional AI Series 4.0MP 25x Zoom PTZ Compact Dome

Image Sensor: 1/2.8" CMOS

Max. Resolution: 4.0 Megapixel

Effective Pixels: 2560 × 1440

RAM / ROM: 128MB / 512MB

Min. Illumination: Colour: 0.005 Lux at F1.6 / B&W: 0.0005 Lux at F1.6 / 0 Lux (IR On)

S/N Ratio: ≥55dB

Infrared System: 2 × Infrared LEDs, 100 m Range, Auto / Manual On/Off Control

Lens Type: Motorised Varifocal

Lens / Iris: 5–125 mm F1.6–F3.6 Motorised Lens with Auto Iris

Field of View: 51.9°–3.0° (25x Optical Zoom)

Focus: 0.5–5 m Min. Focus Distance

Detect (25px/m): 2500 m

Observe (63px/m): 987.5 m

Recognise (125px/m): 500 m

Identify (250px/m): 250 m

Pan / Tilt Range: Pan: 51.9°–3.0° / Tilt: 39.7°–2.2°

PTZ Speed: Pan: 240°/s / Tilt: 160°/s / Manual Pan: 0.1°/s–240°/s / Manual Tilt: 0.1°/s–160°/s

Modes / Presets: Up to 300 Presets / 5 Patterns / 8 Tours / Auto Pan / Auto Scan

Start-up Action: Auto-Restore to Previous PTZ/Lens Status

Resolution: 4.0MP (2560 × 1440) to CIF (352 × 288)

Frame Rate (Main): 4.0MP (1–25fps)

Frame Rate (Sub): D1 (1–25fps)

Frame Rate (Third): 720p (1–25fps)

Video Compression: H.265 / H.264B / H.264M / H.264H / MJPEG / H.265+ / H.264+

Bit Rate: H.264: 2816–13056Kbps / H.265: 1024–7936Kbps

Bit Rate Control: Constant Bit Rate (CBR) / Variable Bit Rate (VBR)

Day/Night: Auto (ICR) / Colour / B&W

Lighting Compensation: BLC / HLC / WDR (120dB)

Smart Scene Adaptive (SSA): No

White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control: Auto / Manual

Noise Reduction: 2D / 3D NR

Picture Control: Flip 180°

Face Recognition: N/A

Face Capture: Support

Perimeter Protection: Tripwire & Intrusion (Add Recognition of Humans & Vehicles) / Fast Moving Detection / Loitering Detection / Parking & Gathering Detection

Auto Tracking: Support

Metadata: N/A

People Counting: N/A

Heat Map: N/A

IVS Functions: Abandoned Object / Missing Object

Event Triggers: Motion Detection / Video Tamper / Scene Change / Network Disconnection / IP Address Conflict / Illegal Access / Storage Anomaly

Region of Interest: Support

Optical Defog: N/A

Digital Zoom: 16x

Privacy Masking: Up to 24 Areas

Image Stabilisation: Electronic

Ethernet: RJ-45 (10/100Base-T)

Protocol: IPv4 / IPv6 / HTTP / HTTPS / SSL / TCP/IP / UDP / UPnP / ICMP / IGMP / SNMP / RTSP / RTP / SMTP / NTP / DHCP / DNS / PPPOE / DDNS / FTP / IP Filter / QoS / Bonjour / 802.1x

Streaming Method: Unicast / Multicast

Max. User Access: 20 Users

Video Interface: 1 Output (Vpp 75Ω)

Audio Interface: 1 Input (RCA Port) / 1 Output (RCA Port) / Audio Compression: G.711a / G.711Mu / G726 / G.723

Alarm Interface: 1 Channel In: 5mA 3–5VDC / 1 Channel Out: 300mA 12VDC

RS485: N/A

Edge Storage: MicroSD Card (Up to 256GB) / NAS / Local PC

Interoperability: ONVIF / CGI / SDK / P2P

Power Supply: 12VDC (±10%) / 2A (Included) / PoE+ (802.3at)

Power Consumption: <21.5W

Operating Conditions: -40°C to +65°C

Ingress Protection: IP66

Vandal Resistance: N/A

Series: Professional AI Series

Camera Type: PTZ

Housing: Plastic

Pan/Tilt/Rotation: Pan: 51.9°–3.0° / Tilt: 39.7°–2.2° / Rotation: 63.1°–3.7°

ePoE: No

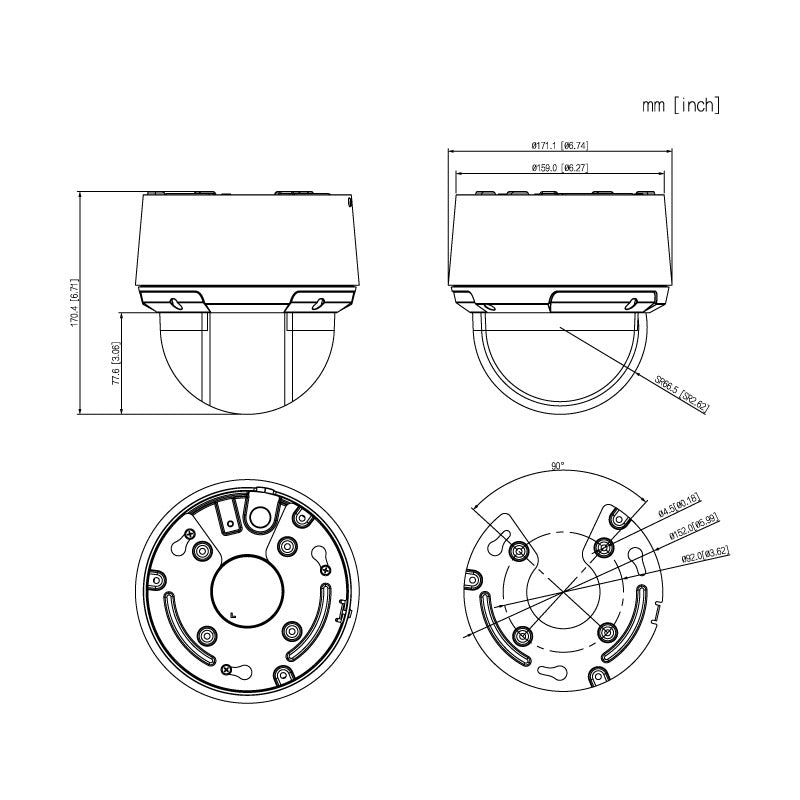

Dimensions: Ø168 × 171.1 mm

Net Weight: 2.5 kg

Warranty: 4 Years

Shipping Width: 240 mm

Shipping Height: 230 mm

Shipping Depth: 300 mm

Shipping Weight: 3.50 kg
