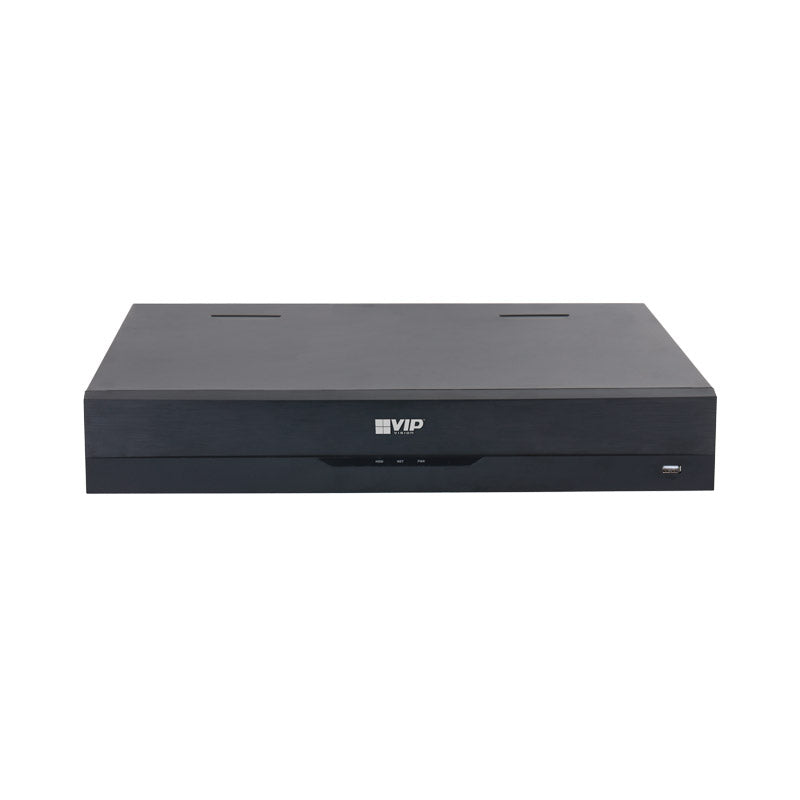

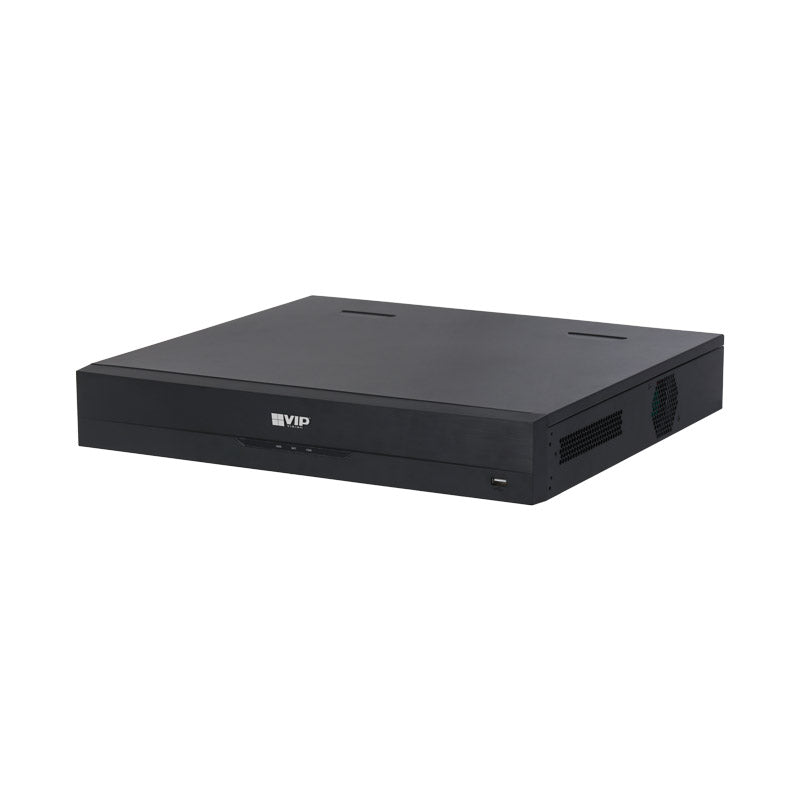

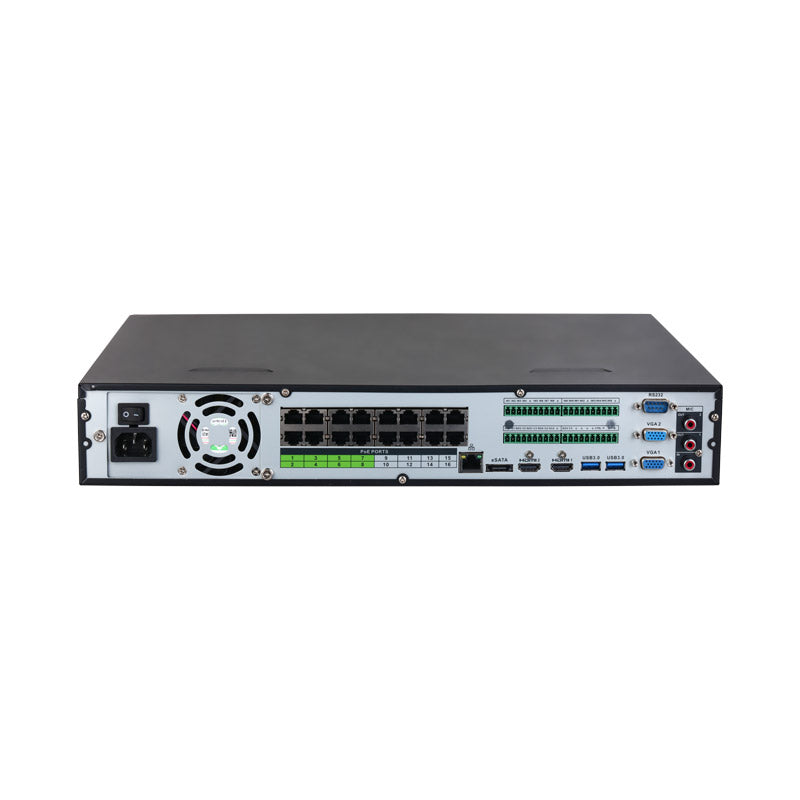

Professional AI Series 32CH PoE NVR with 4 x HDD Bays

Video Input: 32 Channels

PoE: Yes

HDD Capacity: 4

Processor & Operation: Industrial-Grade Processor, Embedded Linux OS, Web Interface / Local GUI

Interoperability: ONVIF 21.12 (Profile T / Profile S / Profile G); CGI; SDK; Supports Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Canon; Chrome, IE9 and Later, Firefox Support

App Integration: iOS / Android

Recording Resolution: Configurable from 32.0MP (6528 × 4896) to QCIF (176 × 144)

Network Bandwidth (AI Disabled): 384Mbps (Incoming/Recording/Outgoing)

Network Bandwidth (AI Enabled): 200Mbps (Incoming/Recording/Outgoing)

Video & Audio Compression: Video: Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG; Audio: G.711a / G.711u / PCM / G726

Playback Channels: Up to 16 Channels

Playback Modes: General Recording, Motion Detection, Intelligent Events, Alarm Triggers, POS

Decoding Capacity (AI Disabled): 8CH @ 8.0MP / 25fps, 32CH @ 1080p / 25fps

Decoding Capacity (AI Enabled): 24CH @ 1080p / 25fps

Backup Method: USB Device / Network / eSATA

HDD: 4 × SATA Bays, Up to 16TB per Bay

Audio: 1 Channel Input (RCA), 2 Channel Output (RCA)

Alarm Interface: 16 Channels Input, 6 Channels Output

Alarm Types: General (Motion, Video Loss, Scene Change, etc.), Anomalies (Camera Disconnect, Disk Full, IP Conflict, etc.), Intelligent (AI Alerts, Face, Human/Vehicle, etc.)

Alarm Actions: Begin Record, Take Snapshot, Camera External Alarm Output, Access Controller, Audio, Buzzer, NVR Log, Camera Preset, Email

Display Output: 2 × HDMI (Up to 3840 × 2160), 2 × VGA (Up to 1920 × 1080)

Display Split: 1st Screen: 1 / 4 / 8 / 9 / 16 / 25 / 36; 2nd Screen: 1 / 4 / 8 / 9 / 16

Display Mode: Multiple Sources: HDMI1 + VGA1 (Mirror), HDMI2 + VGA2 (Mirror)

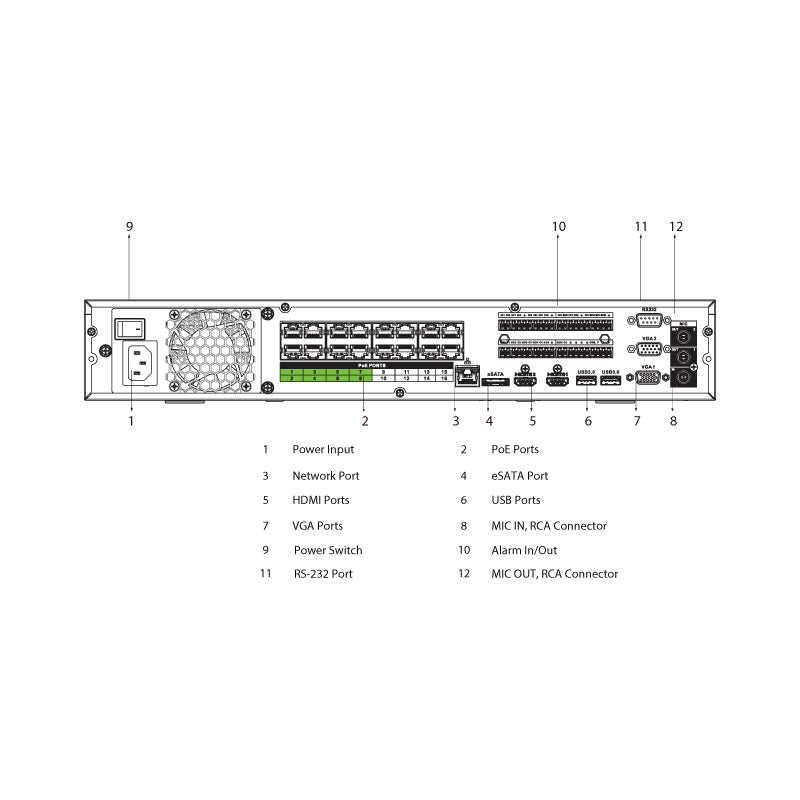

Network Input: 1 × 1000Mbps Ethernet Uplink, 16 × PoE 100Mbps (802.3af/at), Ports 1–8 Support ePoE

Network Functions: HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, Easy4ip

USB & Other Inputs: 1 × Front USB 2.0, 2 × Rear USB 3.0 / 1 × RS-485, 1 × RS-232, 1 × eSATA

NVR Operated AI: Face Detection, Face Recognition, AI Human/Vehicle Detection

Supported Camera AI: Face Detection, Face Recognition, AI Human/Vehicle Detection, Video Metadata, People Counting, Crowd Distribution, Heatmap, ANPR, Audio Detection, Thermal Alarm, Fisheye Dewarp

Face Detection Functions: Gender, Age Group, Glasses, Expressions, Face Mask, Beard

Face Detection (By NVR): 2 Channels (Up to 12 Face Images per Second, per Channel)

Face Detection (By Camera): 16 Channels

Face Recognition Capacity: NVR Supports Up to 20 Face Databases and 20,000 Face Images

Face Recognition (By NVR): 2 Channels (Face Detection via NVR Video Stream Analysis; Face Recognition Performed by NVR) / 16 Channels (Face Detection Performed via Face Capture Cameras via Image Stream; Face Recognition Performed via NVR)

Face Recognition (By Camera): 16 Channels

Human/Vehicle Detection Functions: AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD)

Human/Vehicle Detection (By NVR): IVS: 4 Channels (10 Rules per Channel), SMD: 8 Channels

Human/Vehicle Detection (By Camera): IVS: 16 Channels, SMD: 16 Channels

ANPR Functions: Up to 20,000 Plate Numbers, Blocklist & Allowlist

ANPR (By Camera): 8 Channels

Video Metadata Functions: People (Clothing Colour, Hat, Bag, Umbrella, etc.), Vehicle (Vehicle Colour, Vehicle Model, Number Plate, etc.)

Video Metadata (By NVR): N/A

Video Metadata (By Camera): 8 Channels

Power Supply: 100–240VAC, 50–60Hz

Power Consumption: ≤13W (Without HDD) / PoE: Max. 25.5W per Single Port, 130W Total

Operating Environment: -10°C to +55°C / 10–93% RH

Rackmountable: Yes

Rackmount Units: 1.5U

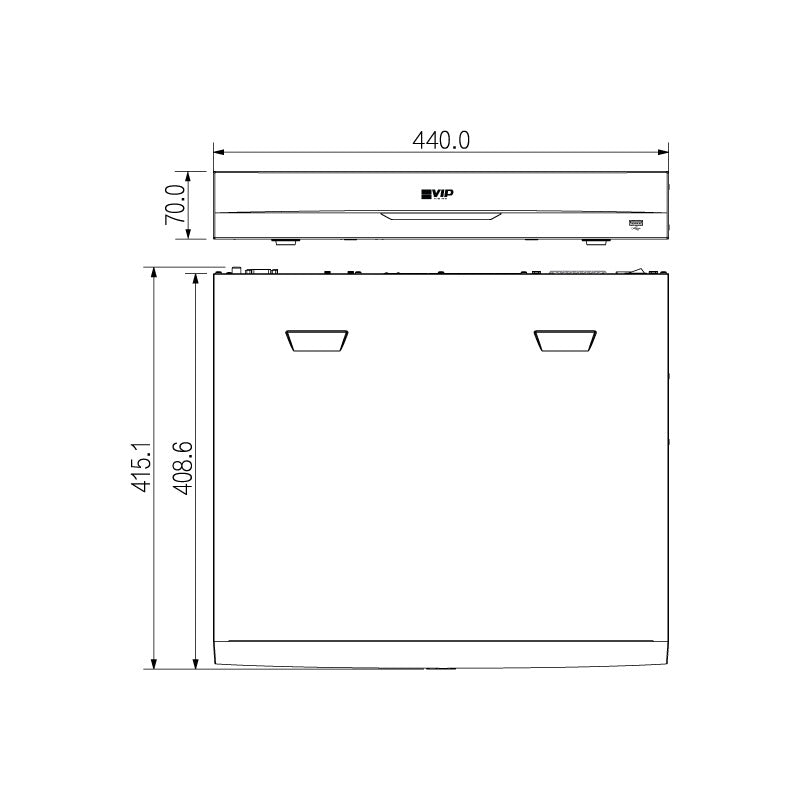

Dimensions: 440 × 416 × 76 mm

Weight: 4.82 kg (Without HDD)

Warranty: 4 Years

Shipping Width: 530 mm

Shipping Height: 210 mm

Shipping Depth: 500 mm

Shipping Weight: 7.00 kg
