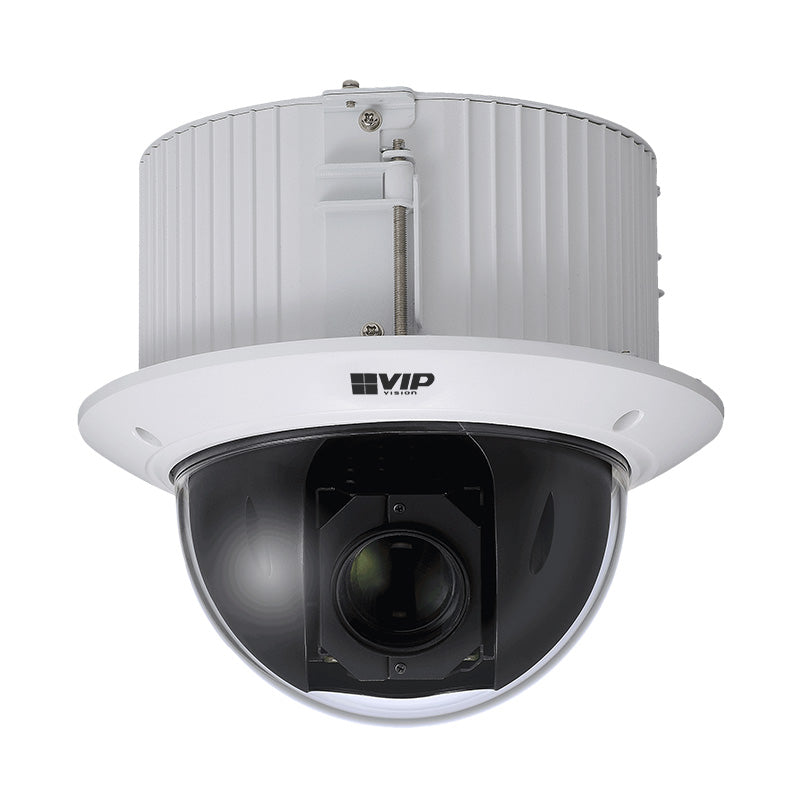

Professional AI Series 2.0MP PTZ Ceiling Mount Camera

Image Sensor: 1/2.8" STARVIS™ CMOS

Max. Resolution: 2.0 Megapixel

Effective Pixels: 1920 × 1080

RAM / ROM: 1GB / 4GB

Min. Illumination: Colour: 0.005 Lux at F1.35 / B&W: 0.0005 Lux at F1.35

S/N Ratio: ≥55dB

Infrared System: N/A

Lens Type: Motorised Varifocal

Lens / Iris: 4.9–156 mm F1.35–F4.4 Motorised Lens with Auto Iris

Field of View: 62.8°–2.2°

Focus: 1–1.5 m Min.

Detect (25px/m): 2152 m

Observe (63px/m): 850 m

Recognise (125px/m): 430 m

Identify (250px/m): 215 m

Pan / Tilt Range: Pan: 0°–360° (Endless) / Tilt: 0°–90° / Auto-Flip: 180°

PTZ Speed: Preset: Pan: 500°/s / Tilt: 500°/s / Manual: Pan: 350°/s / Tilt: 250°/s

Modes / Presets: Up to 300 Presets / 5 Patterns / 8 Tours / Auto Pan / Auto Scan

Start-up Action: Auto-Restore to Previous PTZ/Lens Status

Resolution: 1080p (1920 × 1080) to CIF (352 × 288)

Frame Rate (Main): 1080p (1–50fps)

Frame Rate (Sub): D1 (1–25fps)

Frame Rate (Third): 720p (1–25fps)

Video Compression: H.265 / H.264B / H.264M / H.264H / MJPEG / H.265+ / H.264+

Bit Rate: H.265 / H.264: 3–20480Kbps

Bit Rate Control: Constant Bit Rate (CBR) / Variable Bit Rate (VBR)

Day/Night: Auto (ICR) / Colour / B&W

Lighting Compensation: BLC / HLC / WDR (120dB)

Smart Scene Adaptive (SSA): No

White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control: Auto / Manual

Noise Reduction: 2D / 3D NR

Picture Control: Flip 180°

Face Recognition: N/A

Face Capture: Support

Perimeter Protection: Tripwire & Intrusion (Add Recognition of Humans & Vehicles) / Fast Moving Detection / Loitering Detection / Parking & Gathering Detection

Auto Tracking: Support

Metadata: Support

People Counting: N/A

Heat Map: N/A

IVS Functions: Abandoned Object / Missing Object

Event Triggers: Motion Detection / Video Tamper / Scene Change / Network Disconnection / IP Address Conflict / Illegal Access / Storage Anomaly

Region of Interest: Support

Optical Defog: Support

Digital Zoom: 16x

Privacy Masking: Up to 24 Areas

Image Stabilisation: Electronic

Ethernet: RJ-45 (10/100Base-T)

Protocol: IPv4 / IPv6 / HTTP / HTTPS / SSL / TCP/IP / UDP / UPnP / ICMP / IGMP / SNMP / RTSP / RTP / SMTP / NTP / DHCP / DNS / PPPOE / DDNS / FTP / IP Filter / QoS / Bonjour / 802.1x

Streaming Method: Unicast / Multicast

Max. User Access: 20 Users

Video Interface: 1 Output (Vpp 75Ω)

Audio Interface: 1 Input (RCA Port) / 1 Output (RCA Port) / Audio Compression: G.711a / G.711Mu / G726 / G.723

Alarm Interface: 1 Channel In: 5mA 3–5VDC / 1 Channel Out: 300mA 12VDC

RS485: N/A

Edge Storage: MicroSD Card (Up to 256GB) / NAS / FTP / SFTP

Interoperability: ONVIF / CGI

Power Supply: 24VDC / 2.5A / PoE+ (IEEE 802.3at)

Power Consumption: <16W

Operating Conditions: -30°C to +60°C

Ingress Protection: N/A

Vandal Resistance: IK10

Series: Professional AI Series

Camera Type: PTZ

Housing: Metal

Pan/Tilt/Rotation: Pan: 0°–360° / Tilt: 0°–90°

ePoE: No

Dimensions: Ø186 × 253 mm

Net Weight: 2.2 kg

Warranty: 4 Years

Shipping Width: 260 mm

Shipping Height: 260 mm

Shipping Depth: 287 mm

Shipping Weight: 3.50 kg
