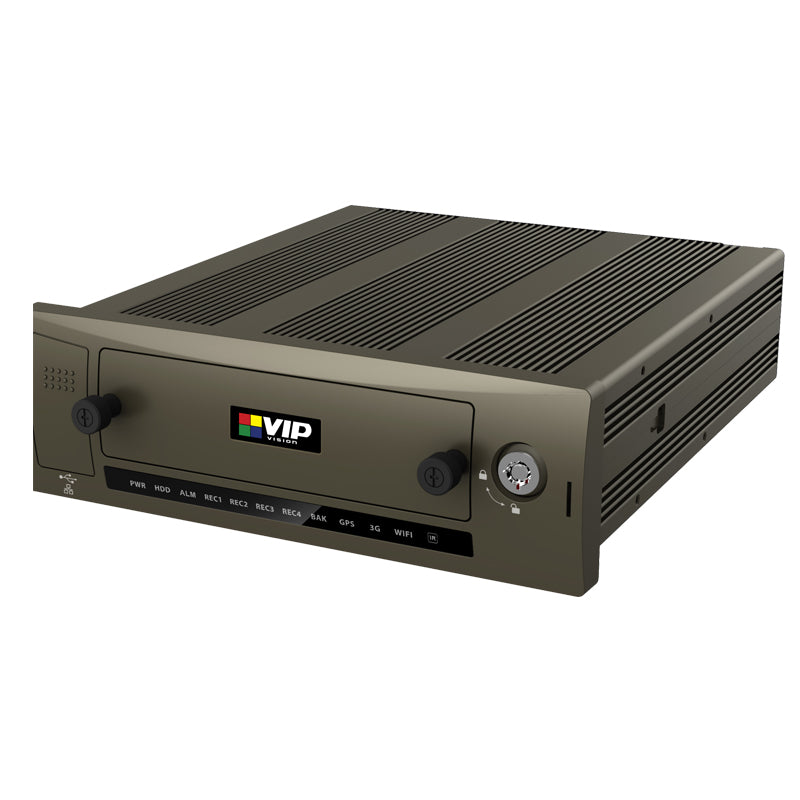

Professional 4 Channel Mobile NVR with GPS, 4G & WiFi

MNVR-GPS4GW2

Regular price $2,495.35

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

The MNVR-GPS4GW2 is a 4 channel mobile NVR with 1080p recording, high precision GPS for vehicle tracking and remote view via 4G, all in a robust, lockable case. Perform essential functions such as monitoring driver and passenger behaviour, gathering video evidence in the event of an accident, proof of delivery and GPS vehicle tracking.

Product features:
• Records 4 channels at 2.0MP, up to 200Mbps incoming bandwidth
• Combines video footage with GPS tracking overlay
• Ideal for public transport, cash transit, shipping, etc.
• 1 x 2.5'' SATA HDD bay & SD card slot up to 2TB
• Audio, alarm, RS485 and RS232 inputs
• Robust housing; vibration-dampening construction
• Heavy duty M12 video input connectors
• Single DIN standard size
• 4G & WiFi allows for mobile remote viewing from anywhere (SIM not included)

*Mobile NVRs include 4 year warranty; HDDs include 1 year warranty

Main Processor: Dual-Core Embedded Processor

Operating System: Embedded LINUX

Video Input: 4-Channel BNC

PoE: 8 Ports (IEEE 802.3af/at)

HDD Capacity: N/A

Two-Way Talk: 1 Channel Mic In, 1 Channel Mic Out

Interoperability: ONVIF 2.3 Conformant

Video Output: 1 × HDMI, 1 × VGA, 2 × TV

Display Resolution: Configurable from 1920 × 1080 to 1024 × 768

Display Split: 1 / 4

OSD: Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording

Recording Resolution: Configurable from 1080p (1920 × 1080) to D1 (704 × 576)

Incoming Bandwidth: 200Mbps

Decoding Capacity: N/A

Video Compression: H.265 / H.264

Bit Rate: 48–8192Kb/s

Record Modes: Manual, Schedule (Regular/Continuous, MD, Alarm), Stop

Record Interval: 1–120 min (Default: 60 min), Pre-Record: 1–30 sec, Post-Record: 10–300 sec

Alarm Input / Output: 6 Channels

Trigger Events: Recording, PTZ, Tour, Alarm Out, Email, FTP, Snapshot, Buzzer & Screen Tips

Video Detection: Motion Detection, MD Zones: 396 (22 × 18), Video Loss & Camera Blank

Playback Sync: 1 / 4

Search Modes: Time/Date, Alarm, Motion Detection & Exact Search (Accurate to Second), Smart Search

Backup Modes: USB Device / Network / Internal HDD

Ethernet: 1 × RJ-45 Port (10/100 Mbps)

Power over Ethernet: 4 Ports (IEEE 802.3af/at)

Network Functions: TCP/IP, UDP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Email, Alarm Server

Optical Interface: N/A

Max. User Access: 128 Users

Remote View: iPhone, iPad, Android, Windows Phone

Internal HDD: 1 × SATA Port, Max. 2TB

HDD Modes: Single (No RAID Compatibility)

USB Interface: 2 Ports: 2 × USB 2.0

Auxiliary Inputs: 1 × RS485 Port (for PTZ)

Power Supply: 6–36VDC

Power Consumption: <15W

Operating Environment: -35°C (Heater Optional) to +60°C / 10%–95% RH / 86–106kPa

Rackmountable: N/A

Rackmount Units: N/A

Dimensions: N/A

Weight: 3 kg (Without HDD)

Dimensions / Rack Units: 190 × 210 × 60 mm

Warranty: 4 Years

Shipping Width: 400 mm

Shipping Height: 350 mm

Shipping Depth: 100 mm

Shipping Weight: 5.00 kg
