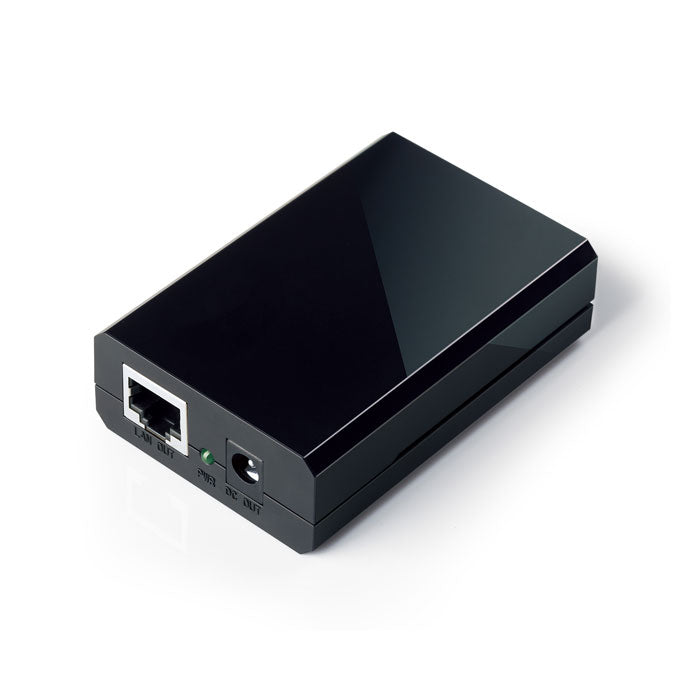

Power Over Ethernet Receiver

WT-CAT5POER

Regular price $38.54

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

The PoE Receiver WT-CAT5POER fully complies with IEEE 802.3af standard. It can receive power and data from all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Injector, then split electric power and data into two cables, so you can install the non-PoE devices like Wireless Access Points, IP Cameras or IP Phones, in remote locations where there are no power lines or outlets, where you wish to fix these devices.

Features:
• Complies with IEEE802.3af standard
• Cost Saving, no power cabling for Ethernet network device
• Advanced Auto-Sensing Algorithm enables taking power from 802.3af PSE
• Adjustable 5VDC, 9VDC or 12VDC output with slide switch
• Supplies up to 10W at 5VDC, 9W at 9VDC or 12W at 12VDC
• High Safety with Short Circuit Protection
• Supports power detection and classification
• Auto disconnection for over voltage, under voltage or over current
• Plug & Play installation, requires no configuration

Basic Functionality: Auto-Sensing Algorithm Enables Taking Power from 802.3af PSE / Adjustable 5VDC, 9VDC or 12VDC Power Supply / Plug-and-Play
Dimensions: 80.8 × 54.0 × 24.0 mm
LED Indicator: PWR (Green)
Network Media: 10BASE-T: UTP Category 3, 4, 5 Cable (Maximum 100 m) / EIA/TIA-568 100 STP (Maximum 100 m) / 100BASE-TX: UTP Category 5, 5e Cable (Maximum 100 m) / EIA/TIA-568 100 STP (Maximum 100 m) / 1000BASE-T: UTP Category 5, 5e, 6 Cable (Max. 100 m)
Operating Humidity: 10–90% Non-Condensing
Operating Temperature: 0°C to +40°C (32°F to 104°F)

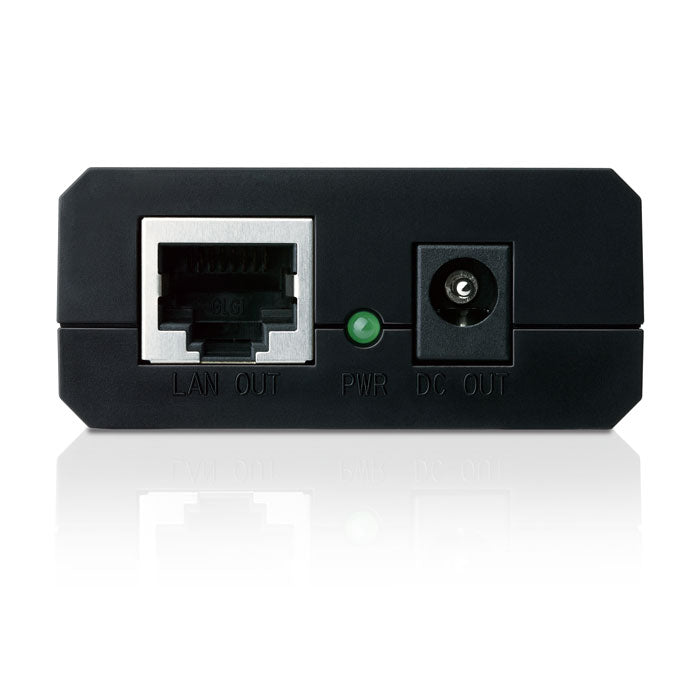

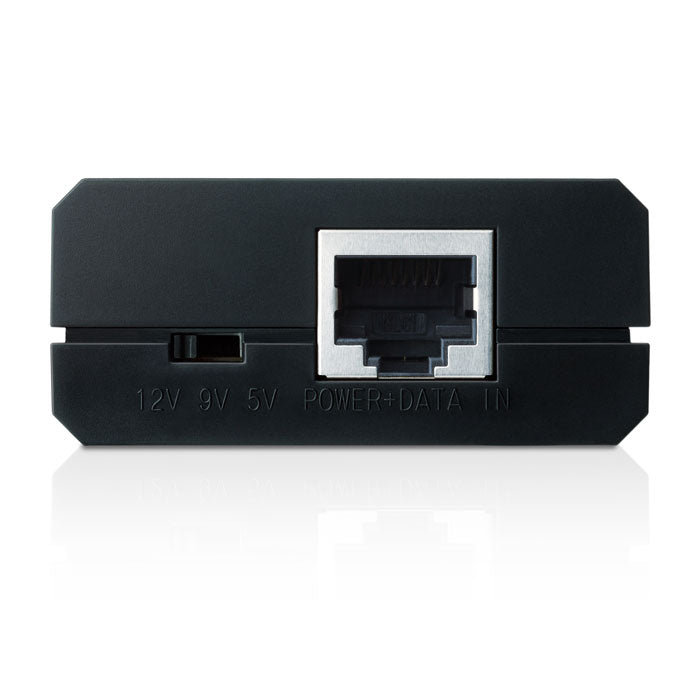

Ports: 1 × 10/100/1000Mbps Auto-Negotiation RJ45 PoE Port (POWER+DATA IN) / 1 × 10/100/1000Mbps Auto-Negotiation RJ45 LAN Port (LAN OUT) / 1 × Power Socket (DC OUT)
Safety & Compliance: FCC / CE
Standards: IEEE 802.3 / IEEE 802.3u / IEEE 802.3ab / IEEE 802.3af
Storage Humidity: 5–90% Non-Condensing
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
Warranty: 1 Year
Shipping Width: 170 mm
Shipping Height: 200 mm
Shipping Depth: 65 mm
Shipping Weight: 0.25 kg
