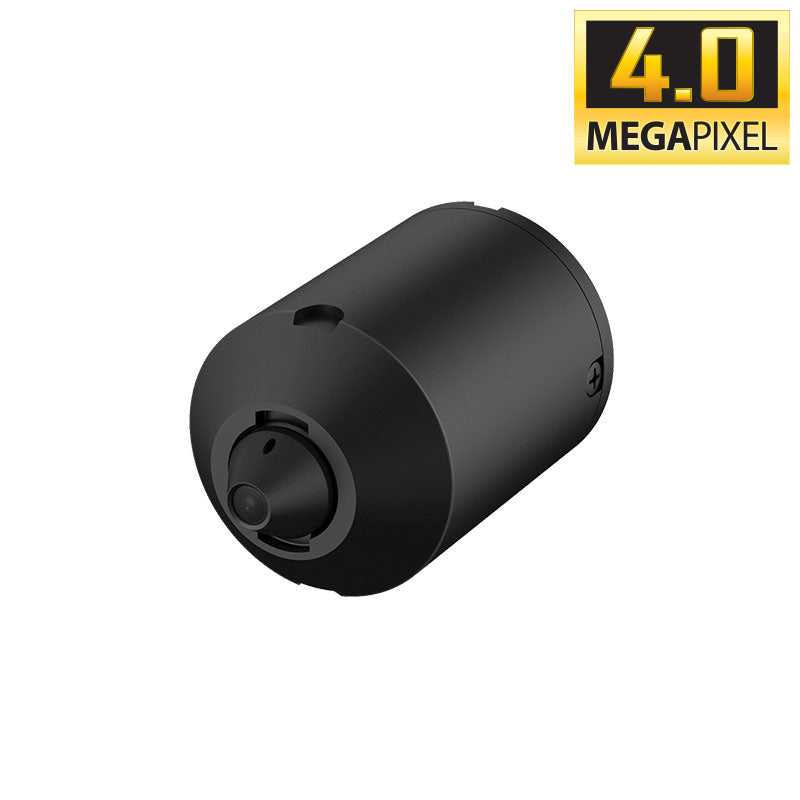

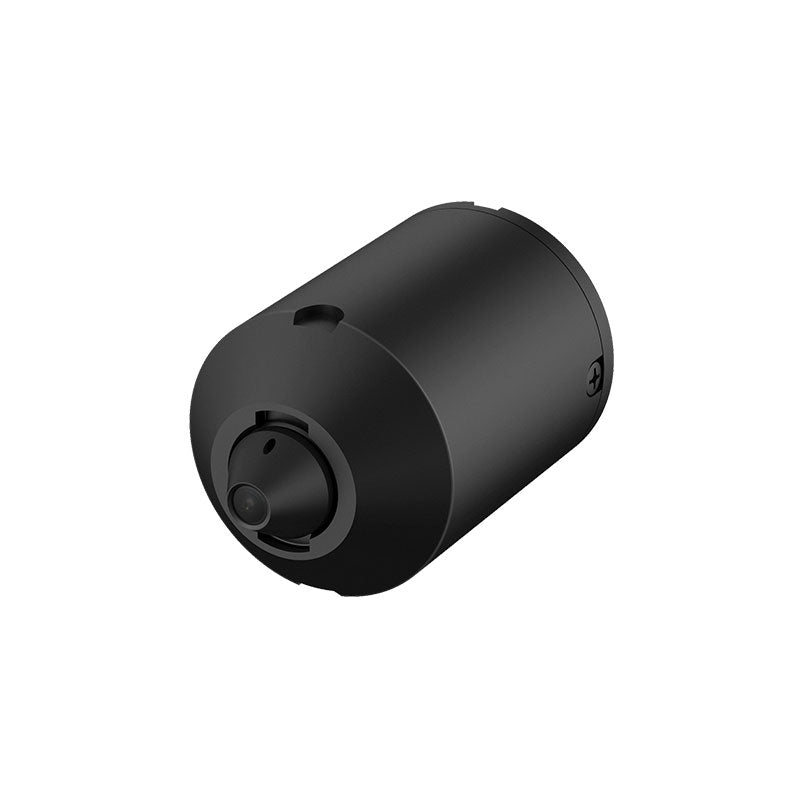

Pinhole Series 4.0MP Fixed Pinhole Camera Lens

Image Sensor: 1/2.7" 4.0 Megapixel Progressive Scan CMOS

Max. Resolution: 4.0 Megapixel

Effective Pixels: 2688 × 1520

RAM / ROM: N/A

Ultra Low Light Colour: No

Min. Illumination: 0.02 Lux at F2.4 (Colour) / 0.04 Lux at F2.4 (B&W)

S/N Ratio: N/A

Infrared: No

Infrared System: N/A

Lens Type: Fixed

Lens / Iris: 2.8 mm F2.4 Fixed Lens

Field of View: Horizontal: 83.4° / Vertical: 44.9°

Focus: Detect: 61 m / Observe: 24 m / Recognise: 12 m / ID: 6 m

Detect (25px/m): 61 m

Observe (63px/m): 24 m

Recognise (125px/m): 12 m

Identify (250px/m): 6 m

Resolution: N/A

Frame Rate (Main): N/A

Frame Rate (Sub): N/A

Frame Rate (Third): N/A

Video Compression: N/A

Bit Rate: N/A

Bit Rate Control: N/A

Day/Night: N/A

Lighting Compensation: N/A

Smart Scene Adaptive (SSA): No

White Balance: N/A

Gain Control: N/A

Noise Reduction: N/A

Picture Control: N/A

IVS: No

Intelligent Functions: N/A

Ethernet: N/A

Protocol: N/A

Streaming Method: N/A

Max. User Access: N/A

RTMP Support: No

Video Interface: N/A

Audio Interface: N/A

Alarm Interface: N/A

RS485: N/A

Edge Storage: N/A

Interoperability: N/A

Power Supply: N/A

Power Consumption: N/A

Operating Conditions: -30°C to +60°C / Less Than 95% RH

Ingress Protection: N/A

Weather Resistance: No

Vandal Resistance: N/A

Series: Pinhole Series

Camera Type: Pinhole

Housing: Metal

Pan/Tilt/Rotation: N/A

Tri-Axis Mounting: No

ePoE: No

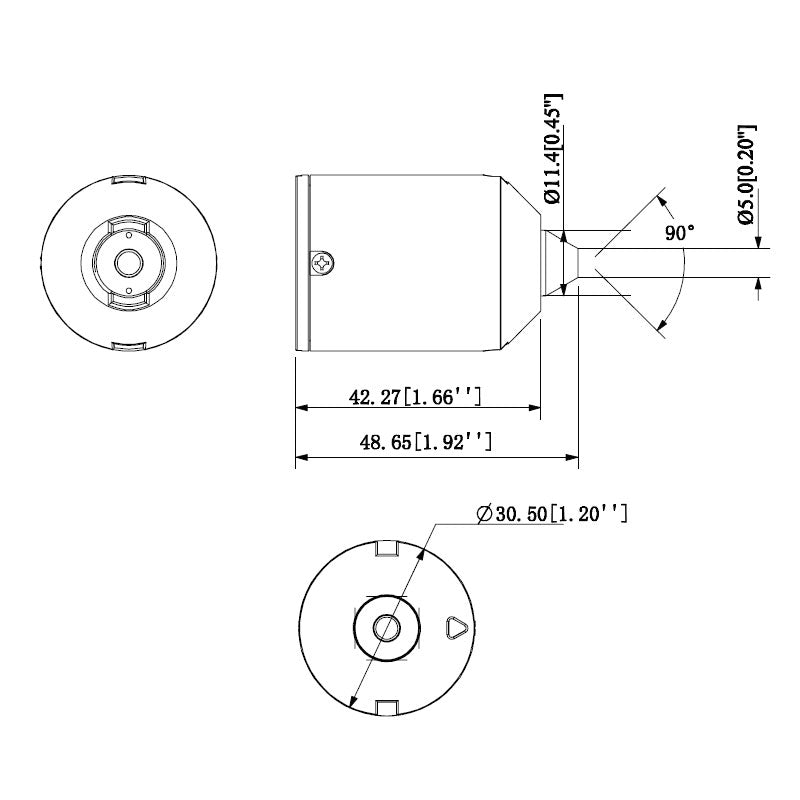

Dimensions: Ø31 × 49 mm

Net Weight: 0.40 kg

Category: Network Surveillance

Warranty: 4 Years

Shipping Width: 182 mm

Shipping Height: 70 mm

Shipping Depth: 147 mm

Shipping Weight: 0.05 kg
