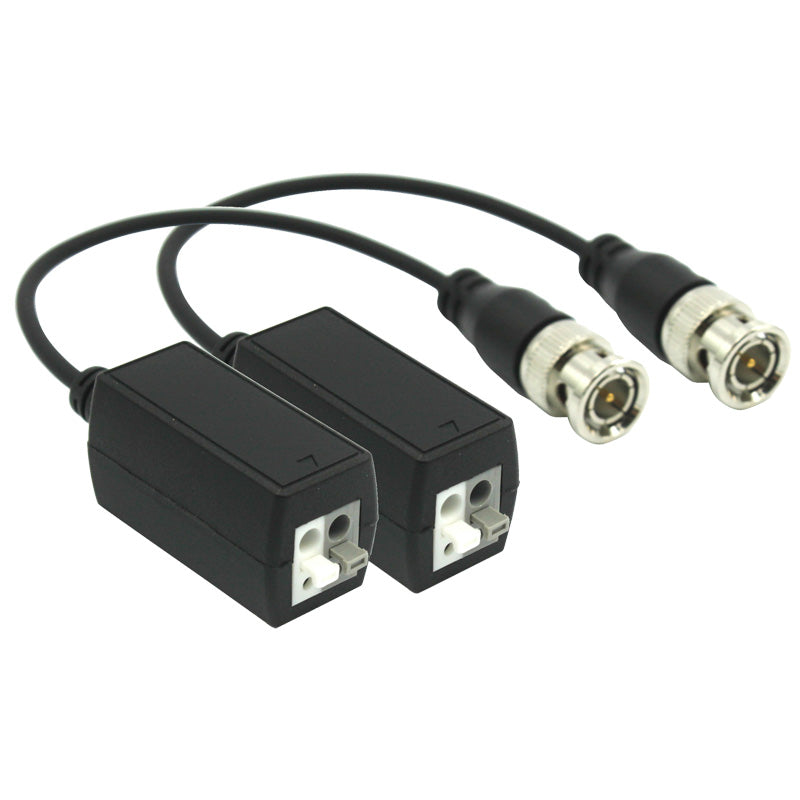

Passive HDCVI/Analogue Balun Pair

VSBALHDP

Regular price $19.00

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

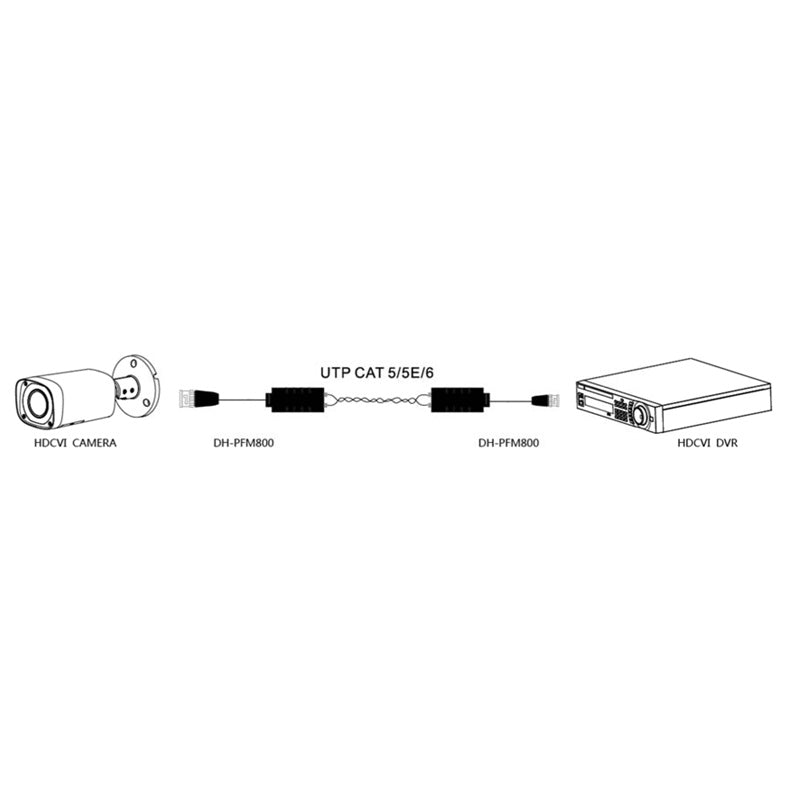

The VSBALHDP allows installer to minimise the cost of wiring for surveillance camera installations by using network cabling such as CAT6 or CAT5e instead of Coax Cable. Video transmission range from up to 100m (at 4K Ultra HD), 250m (at 1080p), 200m (at 4.0MP) or 400m (at 720p).

Resolution: 720p / 1080p / 4.0MP / 4K
Compatible Format: HDCVI
Category Type: UTP CAT 5E/6 (R <10Ω/100 m)
ESD: 1a Contact Discharge Electricity Level 3, 1b Air Discharge Electricity Level 3, Per IEC 61000-4-2
MTBF: >10,000 Hours
BNC Male: 75Ω
Anti-Interference: >60dB
UTP Cable: 100Ω
Coaxial Cable Connector: 2kV (Common-Mode), Per IEC 61000-4-5
Coaxial Video Connector: BNC-M
Twisted-Pair Video Connector: Push-Terminal
UTP Cable Connector: 2kV (Different-Mode), 4kV (Common-Mode), Per IEC 61000-4-5
Transmission Distance: 720p: 400 m (Max.) / 1080p: 250 m (Max.) / 4.0MP: 200 m (Max.) / 4K: 100 m (Max.)
Transmission Signal: 1 Channel
Operating Temperature: -10°C to +55°C
Operating Humidity: 0–95% (Non-Condensing)
Storage Temperature: -20°C to +70°C
Dimensions (L × W × H): 53 × 20 × 17 mm
Warranty: 3 Years
Shipping Width: 150 mm
Shipping Height: 120 mm
Shipping Depth: 30 mm
Shipping Weight: 0.06 kg
