Mobile Series 1080p Fixed HDCVI Twin Dash Camera

VSCVIM-2TT

Regular price $163.90

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

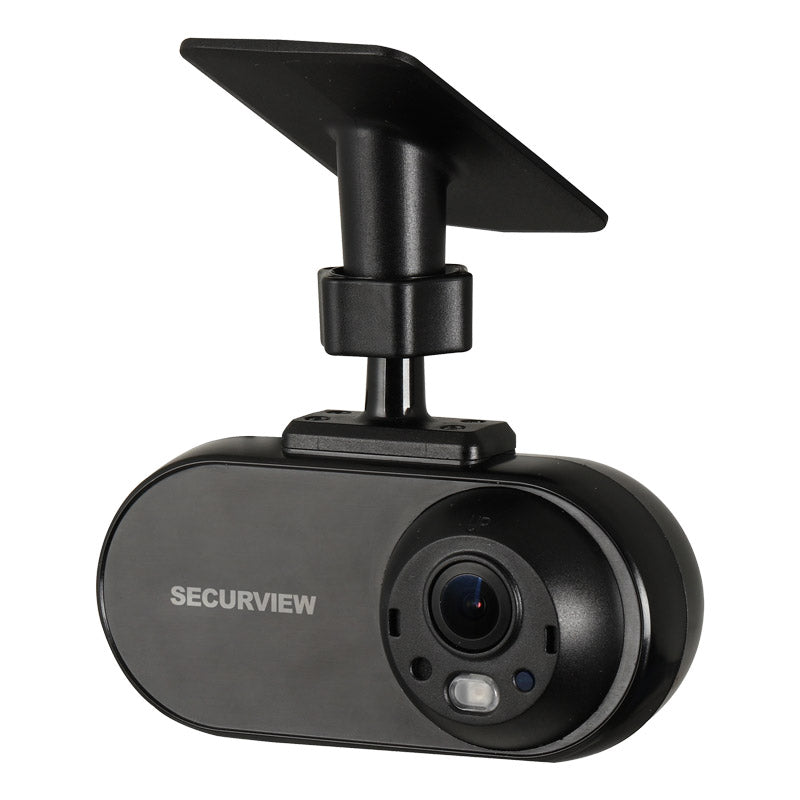

Designed for windscreen mounting, the VSCVIM-2TT is a dual lens camera capable of simultaneously recording Full HD evidence inside and outside the vehicle. Equipped with a built-in microphone and features durable shock resistant housing.

Camera features:
• Stream 2.0MP / Full HD 1080p (1920 x 1080) at 25fps
• Fixed lens - 109° external and 132° internal
• Innovative dual-lens design records 2 images at once
• HDCVI / AHD / TVI / Analog switchable
• Smart in-vehicle infrared illumination up to 3m
• Features built-in microphone for audio evidence
• 4-in-1 aviation connector cable transmits power, audio, video & ground
• Slimline design with shock resistant housing

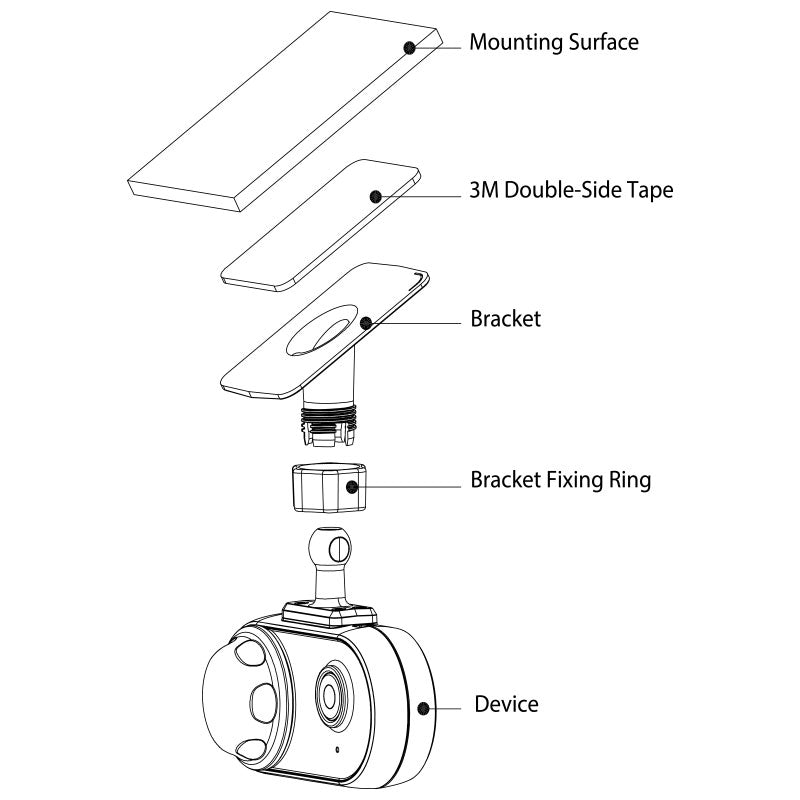

• Easy installation to the inside of the windscreen

Image Sensor: 1/2.7" 2.0 Megapixel CMOS

Max. Resolution: 2.0 Megapixel

Effective Pixels: 1920 × 1080

Signal Noise Ratio: >65dB

Lens: Front: 2.8 mm F2.0 Fixed Lens / Rear: 2.1 mm F2.0 Fixed Lens

Lens Type: Fixed

Angle of View: Front: 109° (H) / 58° (V) / 127° (D) / Rear: 132° (H) / 69° (V) / 164° (D)

Focus: Fixed Focus / 0.5 m Min. Focus Distance

Minimum Illumination: 0.02 Lux at F2.0 (Colour) / 0 Lux IR Active

Electronic Shutter: 1/25s–1/100,000s

Day/Night: Front: Colour / Rear: Auto (IRC)

Infrared Range: Front: 3 m Infrared / Rear: N/A

White Balance: Auto / Manual

Noise Reduction: 2D

Gain Control: Auto

Lighting Compensation: BLC / HLC / Digital WDR

Detect (25px/m): Front: 43 m / Rear: 36 m

Observe (63px/m): Front: 18 m / Rear: 14 m

Recognise (125px/m): Front: 9 m / Rear: 7 m

Identify (250px/m): Front: 4 m / Rear: 3 m

Resolution: 1080p (1920 × 1080)

Frame Rate: 25fps (1080p and Lower)

Transmission Distance: 3 m / 6 m / 12 m / 18 m Heavy Duty Cables Available

Audio Input: Built-In Microphone

Alarm Interface: N/A

Video Output: 2 × M12 HDCVI Output (Yellow: Front / Black: Rear)

Modes Supported: HDCVI / AHD / HDTVI / Composite

Mode Switching: OSD (via HDCVI Recorder) / VSSELECT101 (UTC Connector)

Synchronisation: N/A

OSD Menu: Support

Ingress Protection: N/A

Vandal Resistant: N/A

Series: Mobile

Housing: Plastic

Camera Type: Vehicle

Tri-Axis Mounting: No

Power Input: 12VDC ±30%

Power Consumption: <1.9W

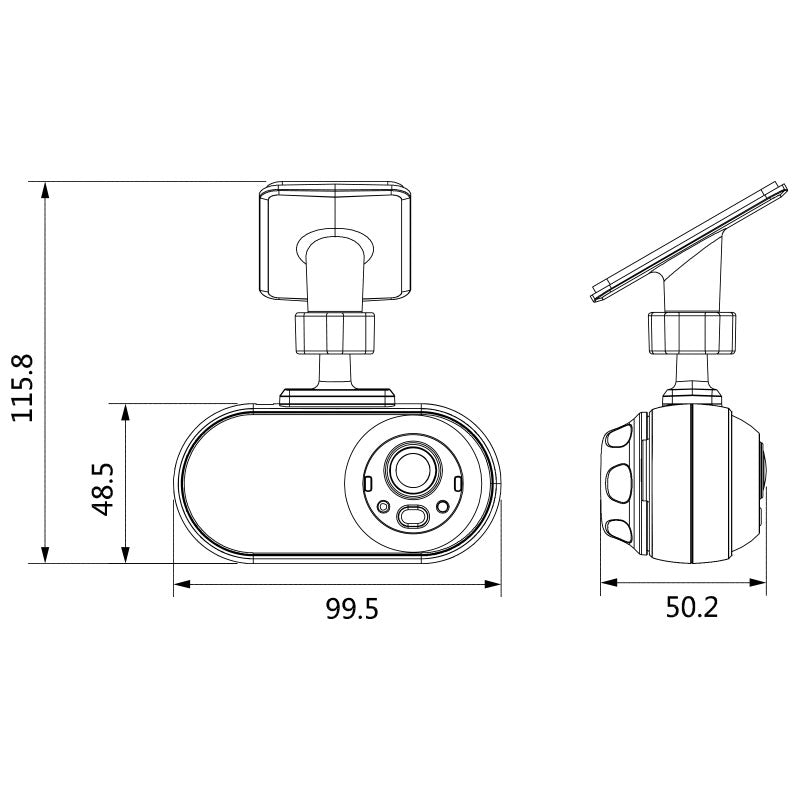

Dimensions: 116 × 100 × 50 mm

Weight: 0.17 kg

Operating Environment: -30°C to +60°C / RH 95% (Max.)

Analogue Support: N/A

Warranty: 4 Years

Shipping Width: 97 mm

Shipping Height: 110 mm

Shipping Depth: 206 mm

Shipping Weight: 1.00 kg
