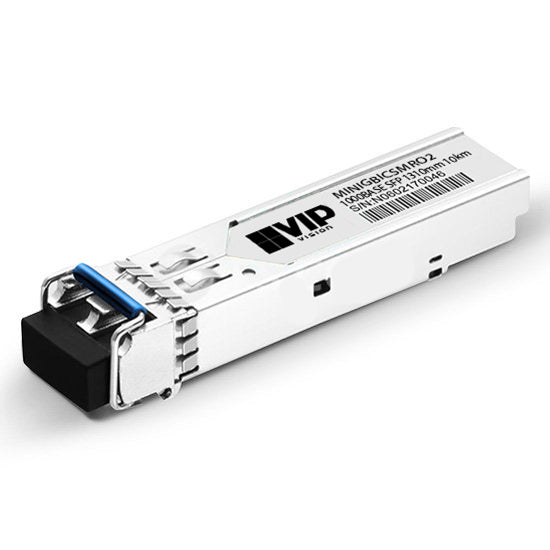

Mini GBIC / SFP Single-mode Fibre Adapter (SMF)

SFPSM1

Regular price $75.00

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

The SFPSM1 is a compact, hot-pluggable SFP module for linking high speed optical fibre infrastructure to a network. Easily configure and upgrade networks for high-speed networking over optical fibre, with a bit rate of up to 1.25Gbps.

Product features:
• Mini GBIC / SFP optical fibre adapter
• Transfer data over optical fibre at up to 1.25Gbps
• SFP (Small Form-factor Pluggable)
• Compatible with SMF (single mode fibre)
• 1310nm VCSEL laser transmitter
• Hot-pluggable, allowing for installation and removal while the system is running
• Built-in digital diagnostic functions, including optical power monitoring

Installed in the 1000 Base-X (Combo port) SFP ports of VIP Vision PoE switches.

Cable Type: Single-Mode Fibre

Form Type: SFP (Small Form-Factor Pluggable)

Interface: LC Duplex

DOM Support: Yes

Max Bit Rate: 1.25Gb/s

TX Power: -9.5 to -3dBm

Protocols: SFF-8472 MSA Compliant, IEEE 802.3ah-2004, ANSI Fibre Channel

Wavelength: 1310 nm

Receiver Sensitivity: < -21dBm

Power Supply: 3.3VDC / 300mA

Operating Environment: -40°C to +85°C / RH 95% (Max.)

Max Cable Distance: 10 km

Warranty: 1 Year

Shipping Width: 59 mm

Shipping Height: 12 mm

Shipping Depth: 12 mm

Shipping Weight: 0.03 kg
