Mini GBIC / SFP Multi-mode Fibre Adapter (MMF)

SFPMM1

Regular price $75.00

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

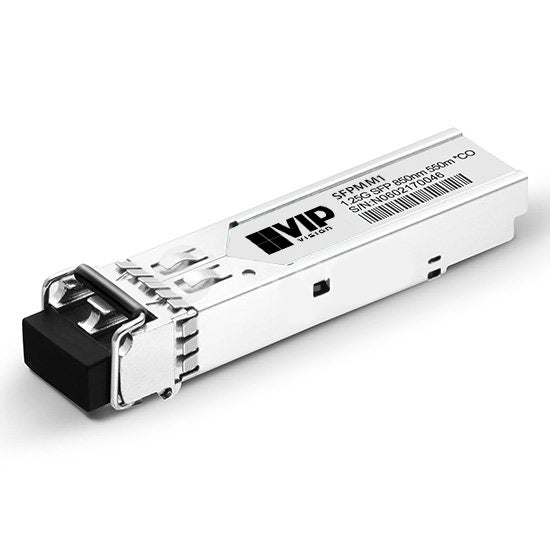

The SFPMM1 is a compact, hot-pluggable SFP module for linking high speed optical fibre infrastructure to a network. Easily configure and upgrade networks for high-speed networking over optical fibre, with a bit rate of up to 1.25Gbps.

Product features:
• Mini GBIC / SFP optical fibre adapter
• Transfer data over optical fibre at up to 1.25Gbps
• SFP (Small Form-factor Pluggable)
• Compatible with OM1, OM2, OM3 & OM4 multimode fibre
• Up to 550m transmission distance over OM2 MMF (300m over OM1 MMF)
• 850nm VCSEL laser transmitter
• Hot-pluggable, allowing for installation and removal while the system is running
• Built-in digital diagnostic functions, including optical power monitoring

Installed in the 1000 Base-X (Combo port) SFP ports of VIP Vision PoE switches.


Cable Type: Multi-Mode Fibre

Form Type: SFP (Small Form-Factor Pluggable)

Interface: LC Duplex

DOM Support: Yes

Max Bit Rate: 1.25Gb/s

TX Power: -9.5 to -3dBm

Protocols: SFF-8472 MSA Compliant, IEEE 802.3z

Wavelength: 850 nm

Receiver Sensitivity: < -17dBm

Power Supply: <3.5V / 300mA

Operating Environment: -40°C to +85°C / RH 95% (Max.)

Max Cable Distance: 550 m over OM2 MMF (50/125µm), 300 m over OM1 MMF (62.5/125µm)

Warranty: 1 Year

Shipping Width: 59 mm

Shipping Height: 12 mm

Shipping Depth: 12 mm

Shipping Weight: 0.03 kg
