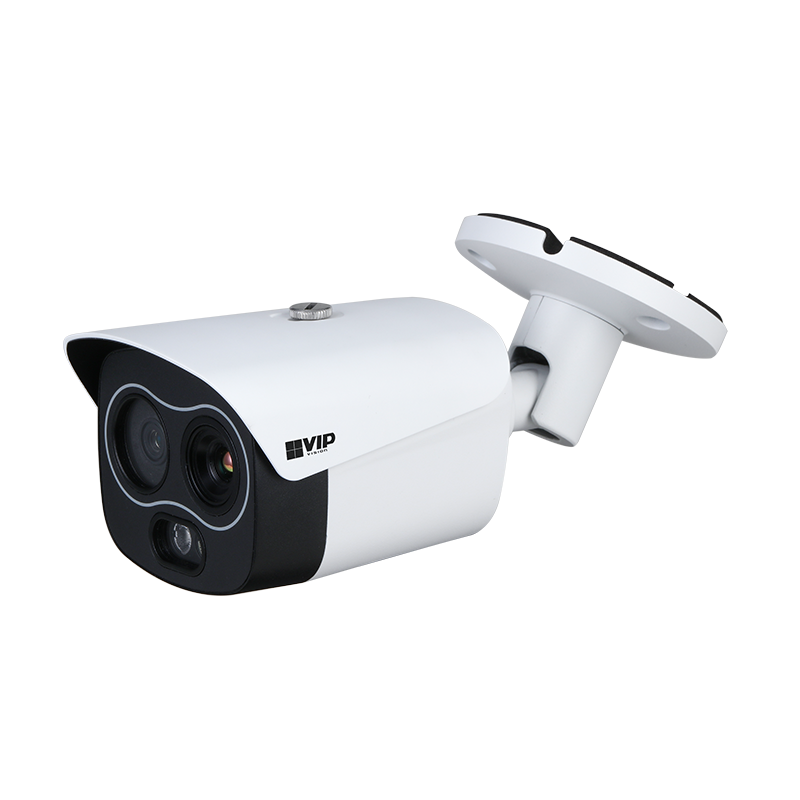

Hybrid Thermal Series 4.0MP Fixed Bullet

VSIPTC-4BIRG

Regular price $1,279.85

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

By combining traditional image & thermal sensors, VIP Vision hybrid thermal cameras redefine your expectations of surveillance. Enhance images with Image Fusion thermal overlay, achieve excellent motion detection accuracy, setup thermal perimeters using IVS, and detect fires before they spread, all in a compact weather rated chassis.

Camera Features:
• Combination thermal and visible light surveillance
• 4.0MP visible light sensor with choice of fixed lenses
• One IP address per channel for thermal & visible images (2 channels used)
• Set tripwire/intrusion rules; heat and fire detection
• VOx thermal sensor with 256 x 192px resolution
• Detects 8~14μm wavelength infrared spectral range
• White light & siren for thermal trigger event alerts
• Adjustable modes & alarm output for fire detection
• 30m IR illuminator, Alarm I/O, audio I/O, IP67 rated

Image Sensor (Visible): 1/2.7" 4.0MP Progressive Scan CMOS

Max. Resolution: 4.0 Megapixel

Effective Pixels (Visible): 2336 × 1752

Min. Illumination: 0.05 Lux at F1.8 (Colour) / 0 Lux at F1.8 (IR On)

Infrared System: 1 × Infrared LED, 30 m Range, Auto / Manual On/Off Control

Image Sensor (Thermal): Vanadium Oxide Uncooled Focal Plane Detector

Effective Pixels (Thermal): 256 × 192 / 12μm Pixel Pitch

Range & Sensitivity: Range: 8–14um / Sensitivity (NETD): <40mK (at F1.0, 25Hz, 300K)

Image Settings: Digital Detail Enhancement / Auto Gain Control / 2D / 3D Noise Reduction

Colour Palettes: 18 Thermal Colour Palettes (e.g. WhiteHot, BlackHot, Rainbow, etc.)

Image Fusion Modes: Warm Colour / Cool Colour / Ironred

Focal Length: Thermal: 3.5 mm / Visible: 4.0 mm

Field of View: Thermal: 50° / Visible: 71°

Aperture: Thermal: F1.0 / Visible: F1.6

Close Focus Distance: Thermal: 0.5 m / Visible: 1.0 m

Resolution & Frame Rate (Main): Thermal: 1280 × 960 to 256 × 192 at 1–25fps / Visible: 4.0MP (2336 × 1752) to D1 (704 × 576) at 1–25fps

Resolution & Frame Rate (Sub): Thermal: VGA (640 × 480) to 256 × 192 at 1–25fps / Visible: 720p (1280 × 720) to CIF (352 × 288) at 1–25fps

Video Compression: H.265 / H.264M / H.264H / H.264B / MJEPG

Bit Rate Control: Constant Bit Rate (CBR) / Variable Bit Rate (VBR)

Day/Night: Auto (ICR) / Colour / B&W

Lighting Compensation: BLC / HLC / Digital WDR

White Balance: Auto / Natural / Street Lamp / Tracking / Outdoor / Manual

Gain Control: Auto / Manual

Noise Reduction: 3D DNR

Picture Control: 90° / 180° / 270°

Intelligent Functions: Tripwire Rules / Intrusion Rules / Motion Detection (4 Zones) / Region of Interest (4 Zones) / Privacy Masking (4 Zones) / Smart Infrared

Thermal Functions: Heat Detection & Alarm / Cold & Hot Spot Trace / Human & Vehicle Classification / Smoking Detection / Mobile Phone Use Detection

Ethernet: RJ-45 (10/100 Base-T)

Network Protocol: IPv4 / IPv6 / HTTP / HTTPS / SSL / TCP/IP / UDP / UPnP / ICMP / IGMP / SNMP / RTSP / RTP / SMTP / NTP / DHCP / DNS / PPPOE / DDNS / FTP / IP Filter / QoS / Bonjour / 802.1x

Max. User Access: 10 Users / 20 Users

Audio Interface: 1 Input / 1 Output (RCA) / Compression: G.711a / G.711Mu / AAC

Alarm Interface: 1 Input / 1 Output

Edge Storage: MicroSD Card (Up to 128GB) / NAS / Local PC

Interoperability: ONVIF / CGI

Power Supply: 12VDC / PoE

Power Consumption: <8W–14W (12VDC) / 4.8–12.3W (PoE)

Operating Conditions: -30°C to +50°C / Less Than 95% RH

Ingress Protection: IP67

Vandal Resistance: N/A

Series: Hybrid Vision Thermal Series

Camera Type: Bullet

Housing: Full Metal Enclosure

Dimensions: 206 × 91 × 91 mm

Net Weight: 0.90 kg

Category: Network Surveillance

Warranty: 4 Years

Shipping Width: 187 mm

Shipping Height: 138 mm

Shipping Depth: 279 mm

Shipping Weight: 1.30 kg
