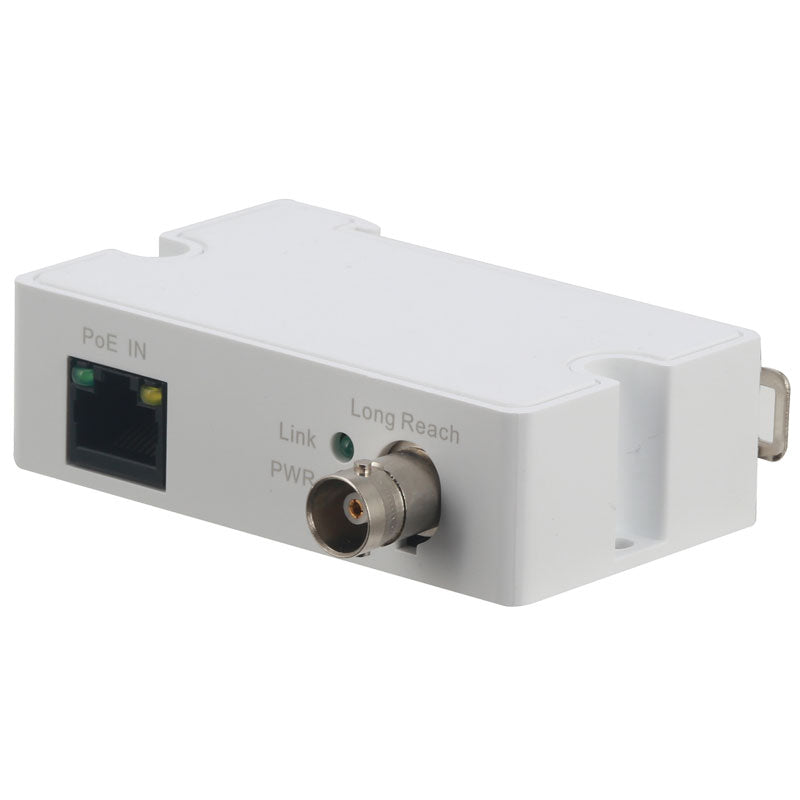

Ethernet over Coax Receiver

VSEOC-ARX

Regular price $79.00

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

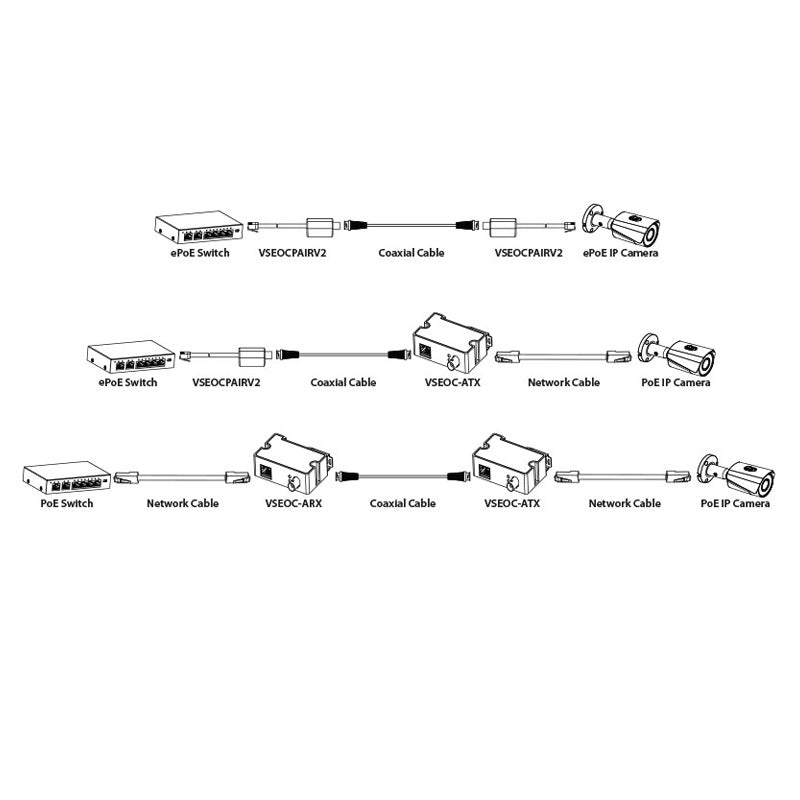

Convert network connections running over coaxial cable back to RJ45 with the VSEOC-ARX. With these converters, you can repurpose existing coaxial cabling to be used with IP security systems, including PoE.

Product features:
• 1 x RJ45 10/100Mbps port, 1 x BNC port
• Supports IEEE802.3 & IEEE802.3u standards
• Supports IEEE802.3af and IEEE802.3at PoE standards
• Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
• Supports MDI/MDIX self-adaption
• Supports long range power supply transmission via coaxial cable
• DIN rail mountable


Dimensions: 79 × 52 × 23 mm

Installation: DIN Rail Mountable

Network Protocol: IEEE 802.3 / IEEE 802.3u / IEEE 802.3x

Operating Environment: -30°C to +65°C / <95% RH

PoE Protocol: IEEE 802.3af / IEEE 802.3at

Ports: 1 × 10/100Mbps Base-TX / 1 × BNC

Power Consumption: <2W

Surge Protection: Common Mode: 4kV / Differential Mode: 2kV

Transmission Bandwidth: RG59 Coaxial Cable: 400 m / 100Mbps, 1000 m / 10Mbps

Weight: 61 g

Warranty: 4 Years

Shipping Width: 130 mm

Shipping Height: 72 mm

Shipping Depth: 80 mm

Shipping Weight: 0.10 kg
