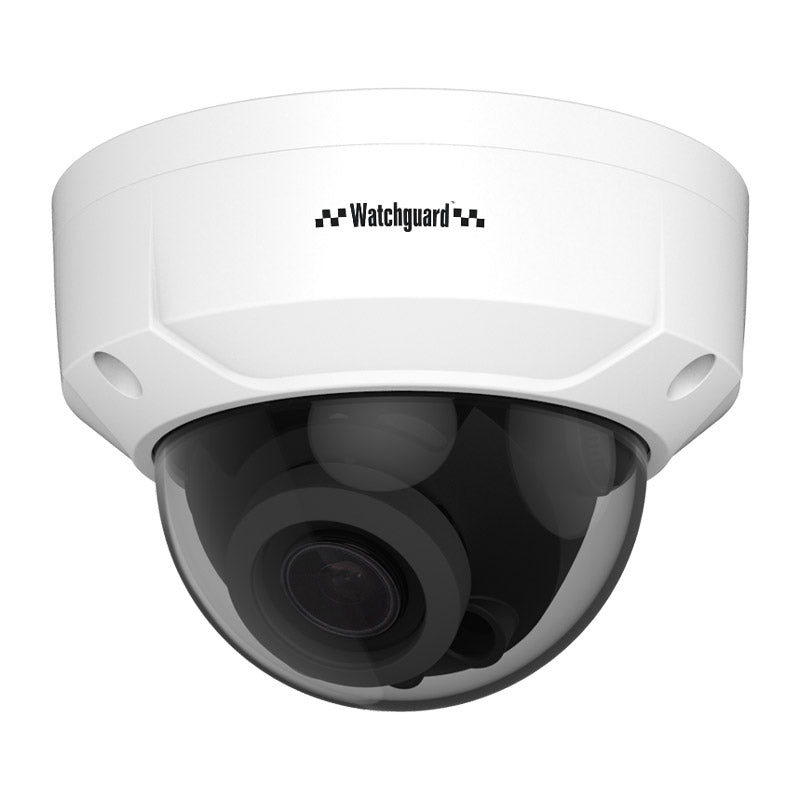

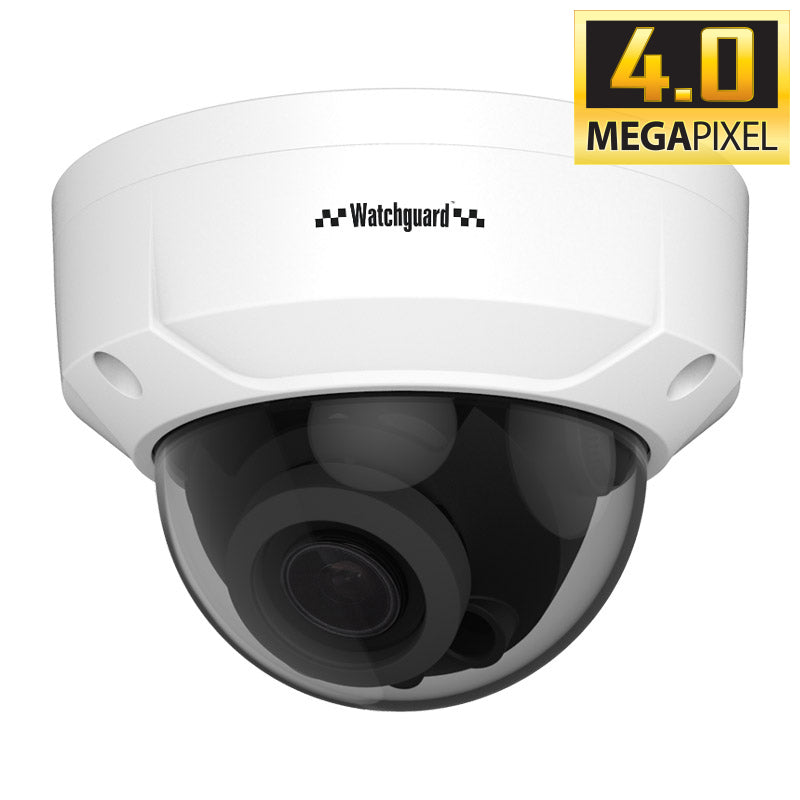

Compact Series 4.0MP Motorised Dome

Image Sensor: 1/3" 4.0MP Progressive Scan CMOS

Max. Resolution: 4.0 Megapixel

Effective Pixels: 2560 × 1440

RAM / ROM: 256MB / 16MB

Ultra Low Light Colour: No

Min. Illumination: 0.05 Lux at F1.8 (Colour) / 0 Lux at F1.8 (IR On)

S/N Ratio: >50dB

Infrared: Yes

Infrared System: 2 × Infrared LEDs, 30 m Range, Auto / Manual On/Off Control

Lens Type: Motorised Varifocal

Lens / Iris: 2.8–12 mm F1.8 Motorised Varifocal Lens

Field of View: Horizontal: 94°–33° / Vertical: 51°–19° (4× Optical Zoom)

Focus: Fixed

Detect (25px/m): 66 m (Wide) / 200 m (Tele)

Observe (63px/m): 26 m (Wide) / 80 m (Tele)

Recognise (125px/m): 13 m (Wide) / 40 m (Tele)

Identify (250px/m): 7 m (Wide) / 20 m (Tele)

Resolution: 4.0MP (2560 × 1440) to CIF (352 × 288)

Frame Rate (Main): 4.0MP (1–20fps)

Frame Rate (Sub): D1 (1–25fps)

Frame Rate (Third): N/A

Video Compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG

Bit Rate: H.265: 6–6144Kbps / H.264: 16–6144Kbps

Bit Rate Control: Constant Bit Rate (CBR) / Variable Bit Rate (VBR)

Day/Night: Auto (ICR) / Colour / B&W

Lighting Compensation: BLC / HLC / Digital WDR

Smart Scene Adaptive (SSA): No

White Balance: Auto / Natural / Street Lamp / Outdoor / Manual

Gain Control: Auto / Manual

Noise Reduction: 3D DNR

Picture Control: Mirror / Flip (0° / 90° / 180° / 270°)

IVS: No

Intelligent Functions: Motion Detection (4 Zones), Region of Interest (4 Zones), Privacy Masking (4 Zones), Smart Infrared

Ethernet: RJ-45 (10/100Base-T)

Protocol: HTTP / HTTPS / TCP / ARP / RTSP / RTP / RTCP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPoE / IPv4/IPv6 / QoS / UPnP / NTP / Bonjour / IEEE 802.1X / Multicast / ICMP / IGMP / TLS / SSH

Streaming Method: Unicast / Multicast

Max. User Access: 10 Users / 20 Users

RTMP Support: No

Video Interface: N/A

Audio Interface: N/A

Alarm Interface: N/A

RS485: N/A

Edge Storage: MicroSD Card (Up to 128GB) / NAS / Local PC

Interoperability: ONVIF Profile S&G / API

Power Supply: 12VDC / PoE (802.3af) (Class 0)

Power Consumption: <2.2W / 6.5W (IR On)

Operating Conditions: -30°C to +60°C / Less Than 95% RH

Ingress Protection: IP67

Weather Resistance: Yes

Vandal Resistance: IK10

Series: Compact Series

Camera Type: Dome

Housing: Metal

Pan/Tilt/Rotation: Pan: 0°–360° / Tilt: 0°–90° / Rotation: 0°–360°

Tri-Axis Mounting: Yes

ePoE: No

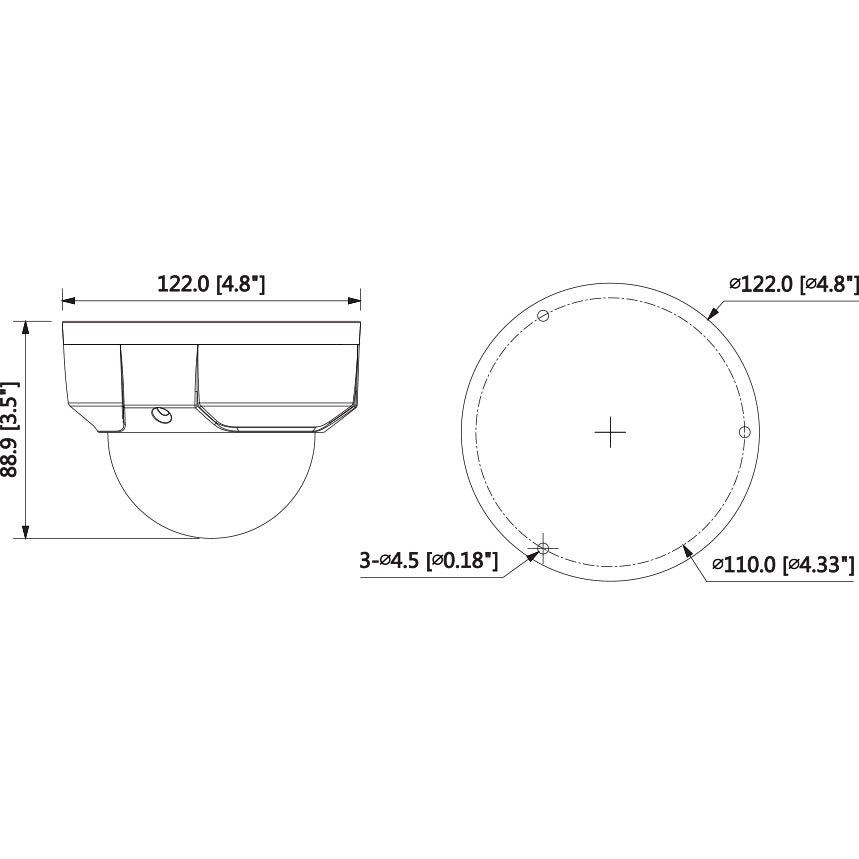

Dimensions: Ø122 × 89 mm

Net Weight: 0.45 kg

Category: Network Surveillance

Warranty: 4 Years

Shipping Width: 156 mm

Shipping Height: 137 mm

Shipping Depth: 156 mm

Shipping Weight: 0.62 kg
