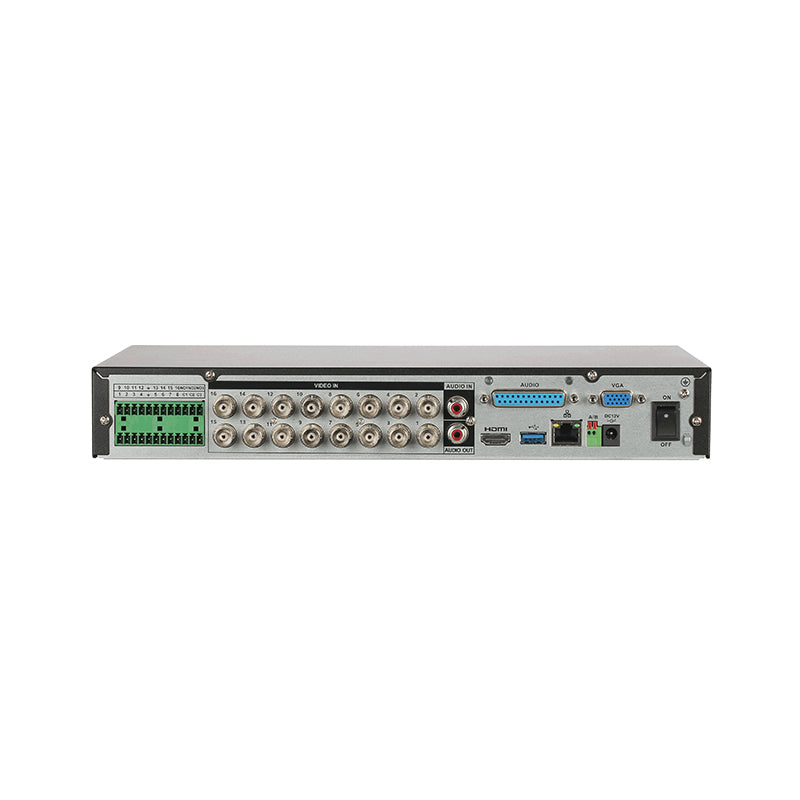

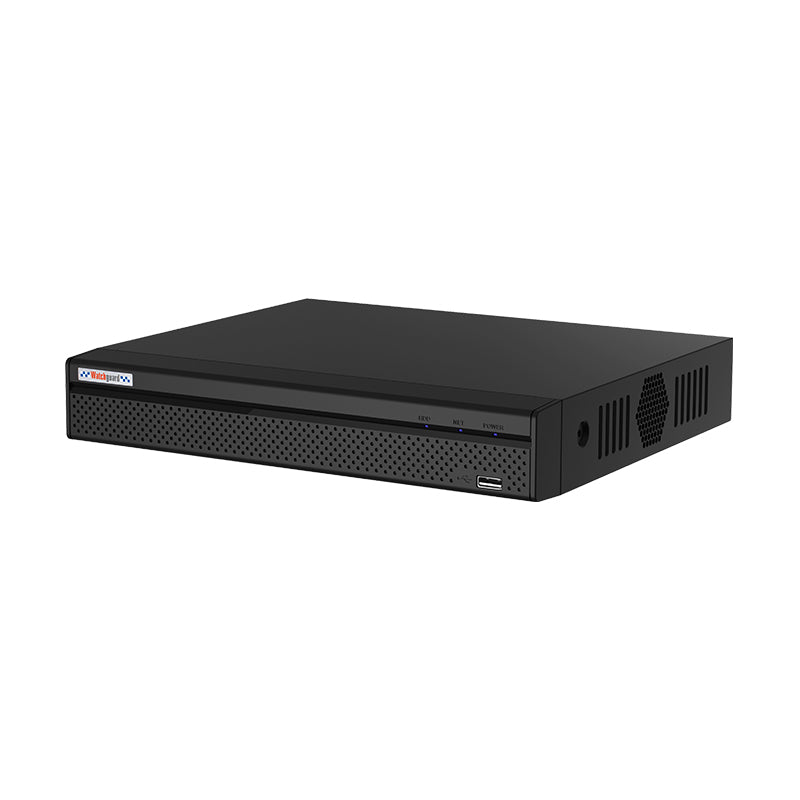

Compact Series 16 Channel 8.0MP HDCVI AI Digital Video Recorder

Main Processor: Embedded Processor
Operating System: Embedded Linux
Video Input: 16 Channel BNC
Audio In/Out: 16 Inputs / 1 Output (RCA)
Two-Way Talk: Reuses Channel 1 Audio Input/Output
Supported Video Inputs: HDCVI / HDTVI / AHD / Analogue / IP
Coax Input Support: 16 Channels up to 8.0MP/7fps (HDCVI), 960H/25fps (Analogue)
IP Input Support: 16 Channels
IP Input Max. Resolution: 8.0MP
IP Input Max. Bandwidth: 128Mbps
Video Output: 1 × HDMI / 1 × VGA
Display Resolution: HDMI 3840 × 2160 to 1280 × 720 / VGA 1920 × 1080 to 1280 × 720
Display Split: 1 / 4 / 8 / 9 / 16 (36 with IP Extension Mode Enabled)
OSD: Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording
Maximum Recording Resolution: 8.0MP (3840 × 2160) to CIF (352 × 288)
Frame Rate (Main): 8.0MP 1–7fps / 6.0MP 1–10fps / 4.0MP 1–15fps / 1080p and Lower 1–25fps
Frame Rate (Sub): 960H, 1–15fps
Frame Rate (Third): N/A
Video Compression: AI Coding / H.265+ / H.265 / H.264+ / H.264
Bit Rate: 32Kbps–6144Kbps Per Channel
Record Modes: Manual / Schedule (Regular, Continuous) / Motion Detection / Video Loss / Alarm / Stop
Record Interval: 1–60 min (Default 60 min) / Pre-Record 1–30 sec / Post-Record 10–300 sec
AI Functions: Face Recognition / Perimeter Protection / Smart Motion Detection (SMD+)
Face Recognition Performance: Max. 12 Pictures Per Second, 2 Channel Video Stream Supports Analogue Cameras Only
Stranger Mode: Detects Stranger Faces Not in Database
AI Search (Face Recognition): Up to 8 Target Face Images at the Same Time
Database Management: Up to 10 Face Databases with 20,000 Face Images Total
Database Application: Each Database Can Be Applied to Video Channels Independently
Trigger Events (Face Recognition): Recording, PTZ, Tour, Alarm, Push Video Notification, Email Notification, FTP Upload, Snapshot, Internal Buzzer, Screen Tip Overlay, Voice Prompt
Perimeter Protection Performance: 2 Channels, 10 IVS Rules Per Channel (Advanced) / 8 Channels, 10 IVS Rules Per Channel (General)
AI Search (Perimeter Protection): Human / Vehicle Classification
Object Classification: Human / Vehicle Secondary Recognition for Tripwire and Intrusion
SMD+ Performance: 16 Channels
AI Search (SMD+): Human / Vehicle Classification
Alarm Input / Output: 16 Channel Input / 3 Relay Output
Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer, Screen Tips
Video Detection: Motion Detection, 396 MD Zones (22 × 18), Video Loss, Tampering, Diagnosis
Playback Sync: 1 / 4 / 9 / 16
Search Modes: Time/Date, Alarm, Motion Detection, Exact Search, Smart Search
Backup Modes: USB Device / Network
Ethernet: 1 × RJ-45 Port (1000MB)
Network Functions: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Max. User Access: 128 Users
Remote View: iOS (iPhone, iPad) / Android Devices
Internal HDD: 1 × SATA Port, Up to 16TB
USB Interface: 2 × USB Ports (1 × USB 2.0 / 1 × USB 3.0)
Auxiliary Inputs: 1 × RS-485 Port
Power Supply: 12V DC / 3A
Power Consumption: <15W (Without HDD)
Operating Environment: -10°C to +55°C / 10%–90% RH
Rackmountable: No
Rackmount Units: N/A

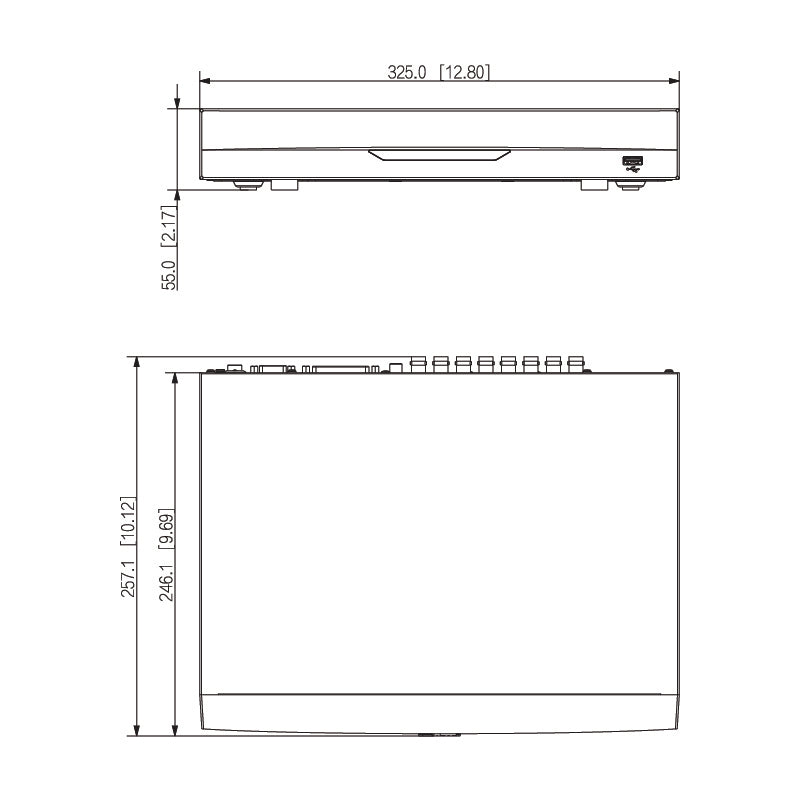

Dimensions: 325 × 257 × 55 mm (1U)
Weight: 1.5 kg (Without HDD)
Warranty: 4 Years
Shipping Width: 117 mm
Shipping Height: 308 mm
Shipping Depth: 372 mm
Shipping Weight: 2.20 kg
